Seat Adjuster Track Cover Replacement - Front



Seat Adjuster Track Cover Replacement - Front

Removal Procedure





1. Remove the front bucket seat. Refer to Seat Replacement - Bucket (Seat Replacement - Bucket) .

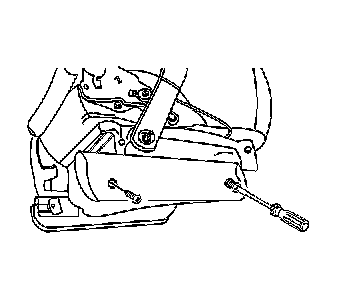

2. Remove the screws from the front seat track covers.
3. Remove the track covers from the front seat.



Installation Procedure





1. Install the track covers to the front seat.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the screws to the front seat track covers.

Tighten the screws to 2 N.m (18 lb in).

3. Install the front bucket seat. Refer to Seat Replacement - Bucket (Seat Replacement - Bucket) .
