Cruise Control - Inoperative/Malfunctioning

CRUISE CONTROL INOPERATIVE/MALFUNCTIONING

DIAGNOSTIC AIDS

IMPORTANT: Perform the following in order to avoid misdiagnosis.
- Inspect for proper operation of the brake lamps.
- Inspect for proper operation of the transmission range switch.
- Inspect throttle linkage for mechanical binding which could cause the system to malfunction.

TEST

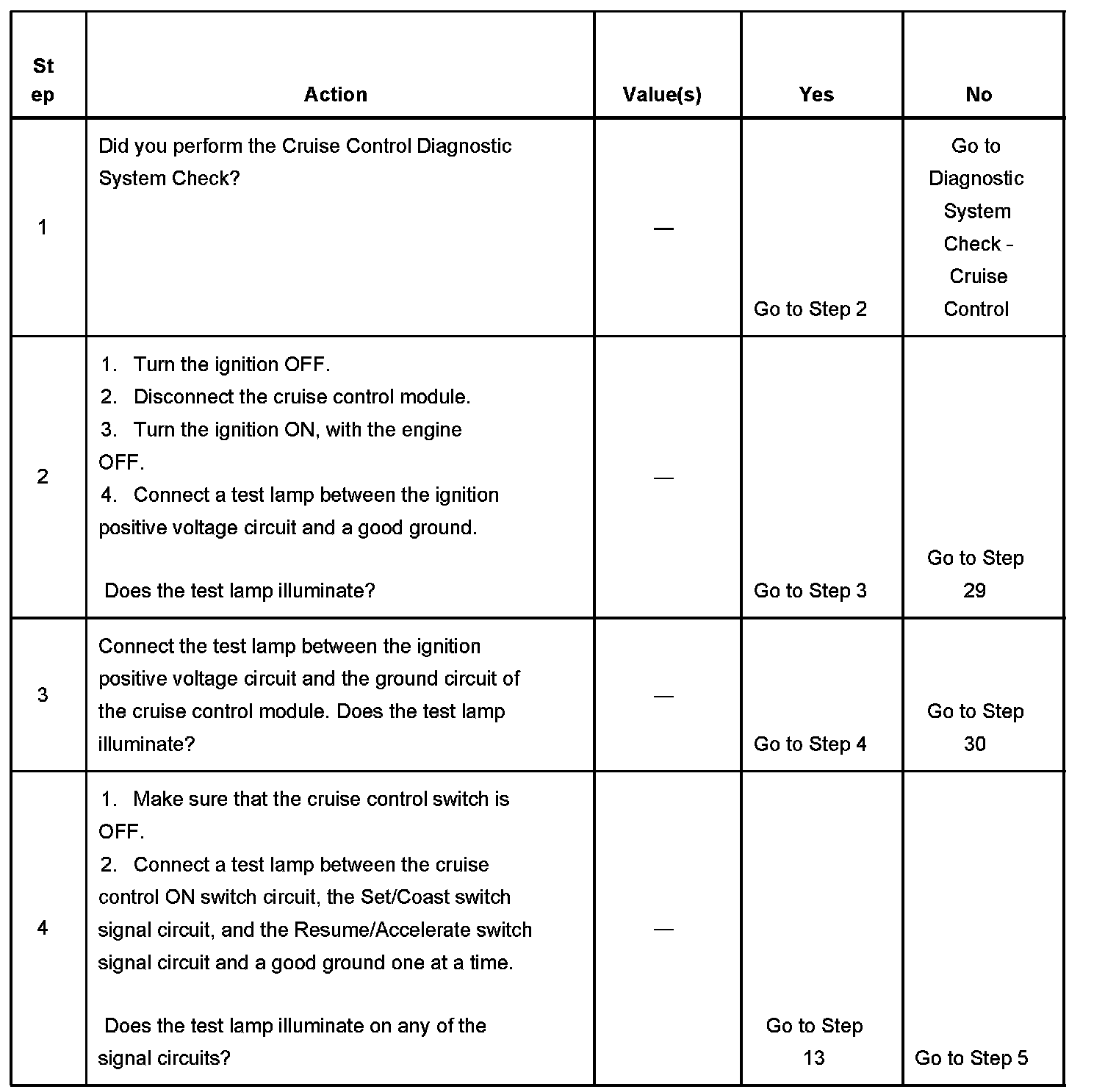

Steps 1-4:

Cruise Control - Inoperative/Malfunctioning

Steps 1-4:

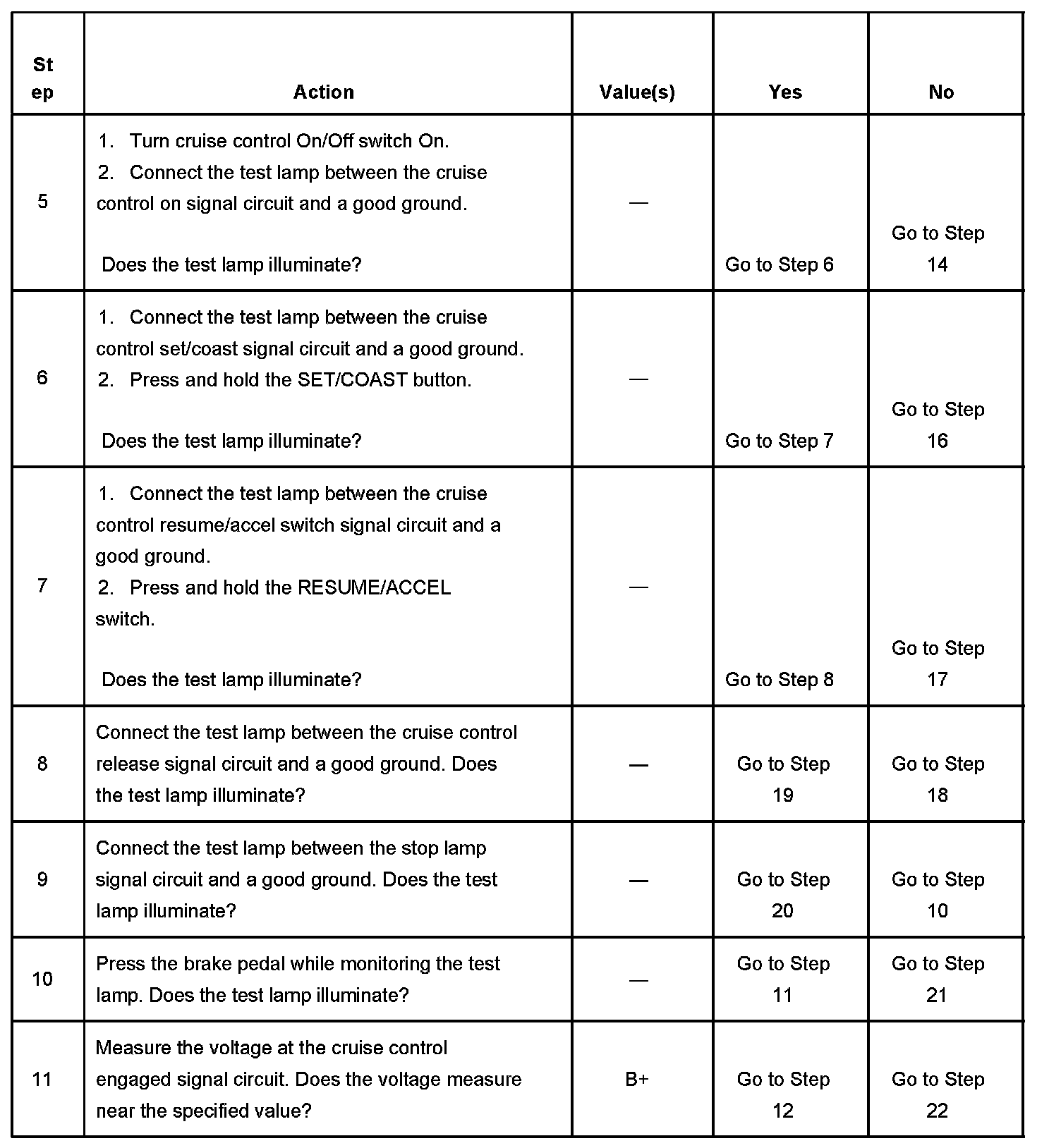

Steps 5-11:

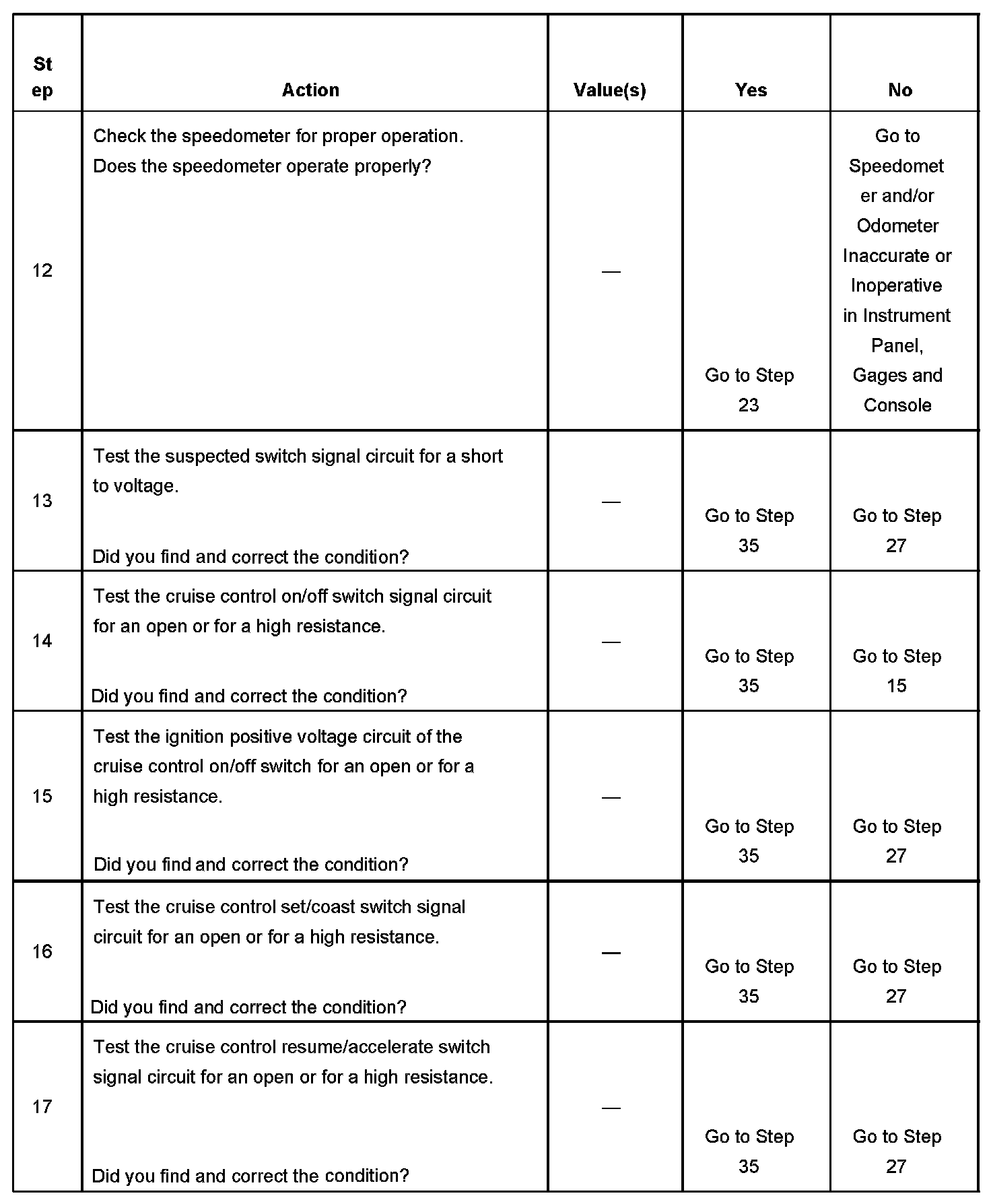

Steps 12-17:

Steps 18-23:

Steps 24-30:

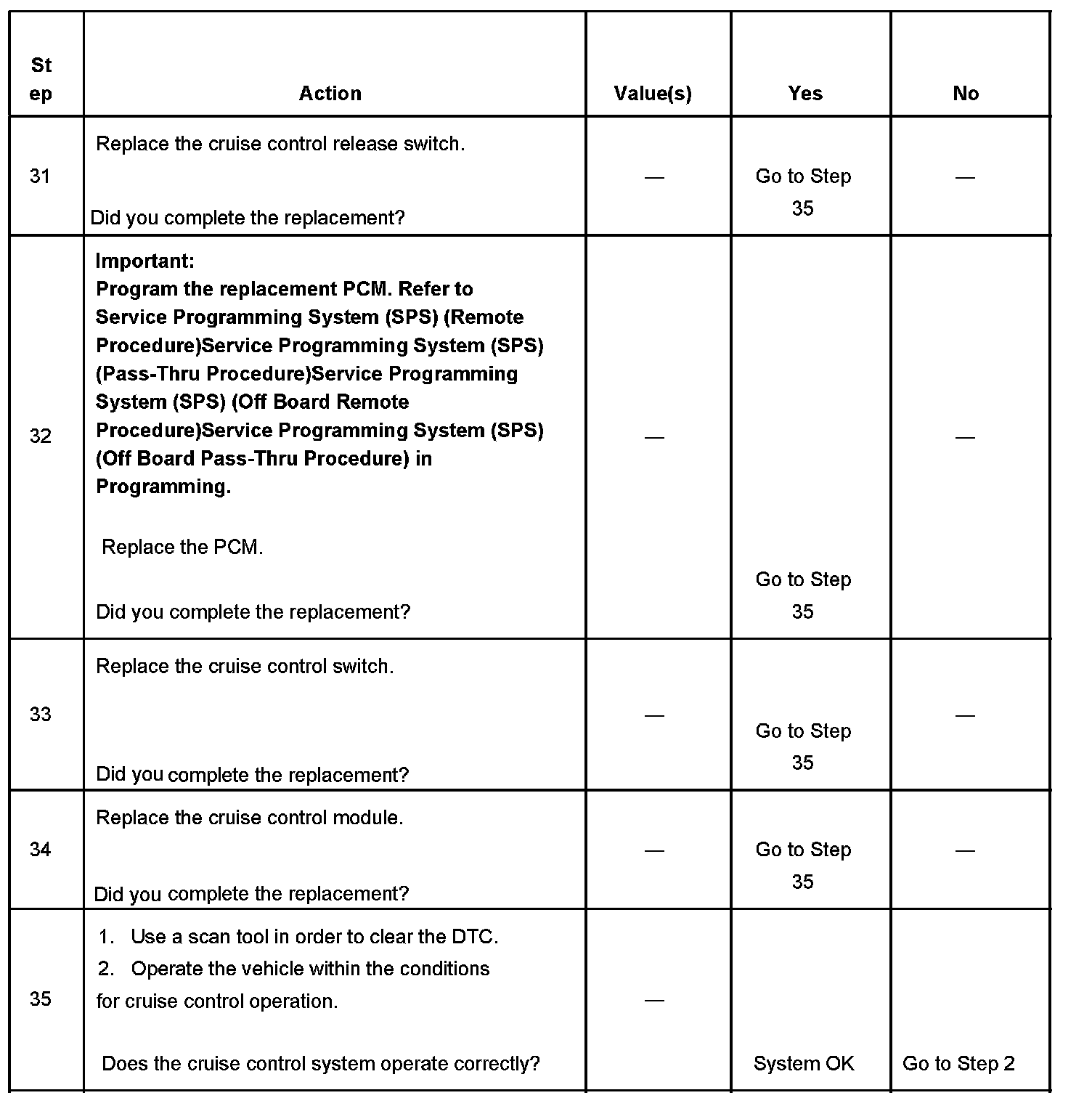

Steps 31-35:
