Water Pump: Service and Repair

Water Pump Replacement

Removal Procedure





1. Drain the cooling system until the coolant is below the level of the water pump.

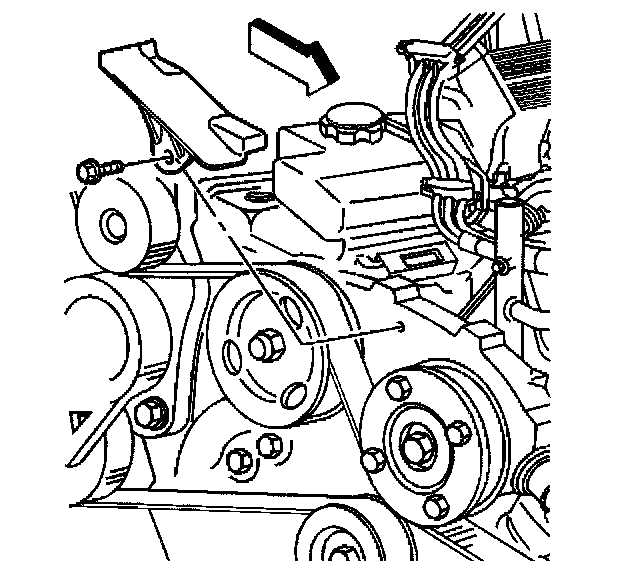

2. Remove the drive belt guard.

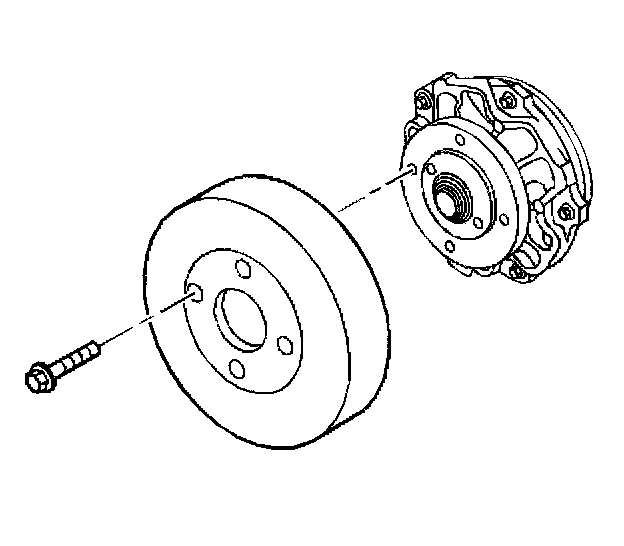

3. Loosen the water pump pulley bolts.
4. Remove the drive belt.





5. Remove the water pump pulley bolts.
6. Remove the water pump pulley.

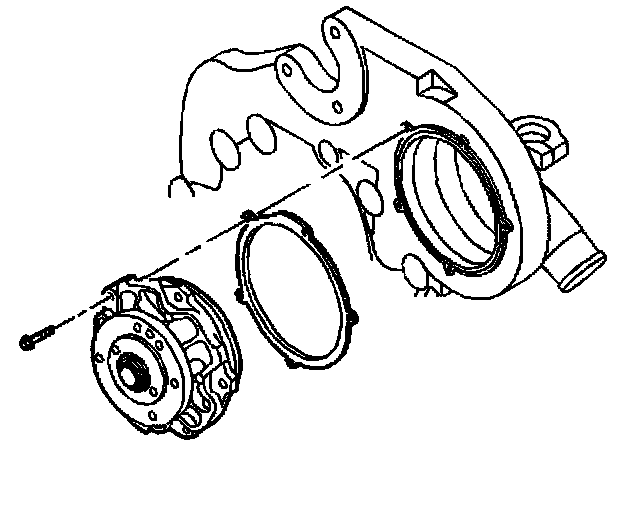

7. Remove the water pump bolts.
8. Remove the water pump.
9. Remove the water pump gasket.
10. Clean the water pump mating surfaces.

Installation Procedure

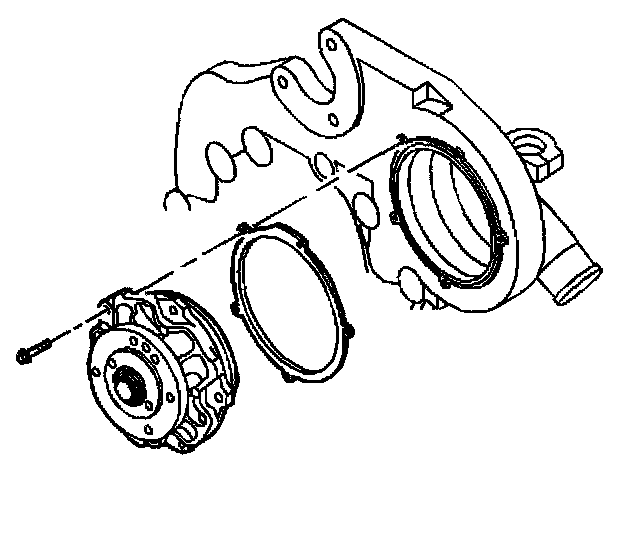

1. Install the water pump gasket.
2. Install the water pump

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the water pump bolts.
Tighten the bolts to 10 Nm (89 inch lbs.).

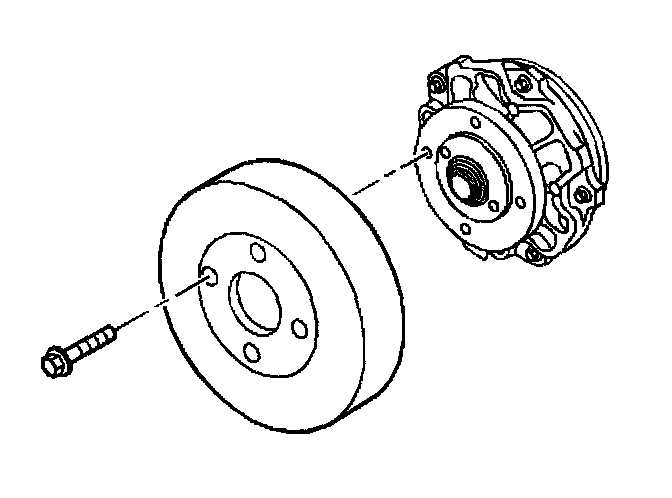

4. Install the water pump pulley.
5. Install the water pump pulley bolts.
6. Install the drive belt.
Tighten the water pump pulley bolts to 25 Nm (18 inch lbs.).

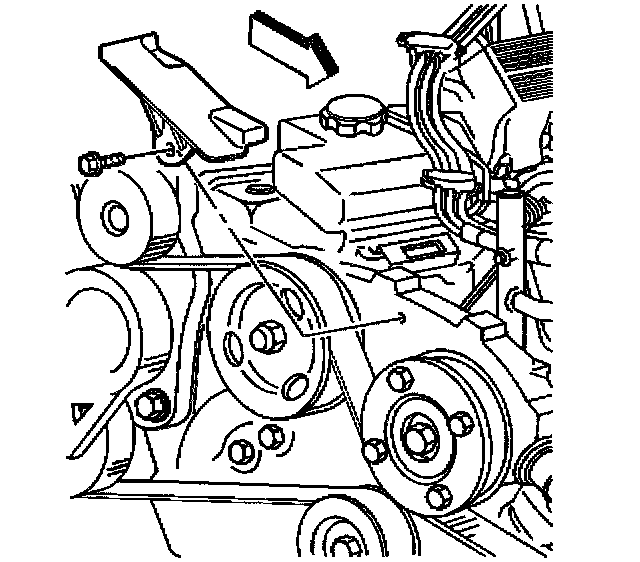

7. Install the drive belt guard.
8. Fill the cooling system.
