Ambient Light Sensor: Service and Repair

DAYTIME RUNNING LAMPS (DRL) AMBIENT LIGHT SENSOR REPLACEMENT

REMOVAL PROCEDURE

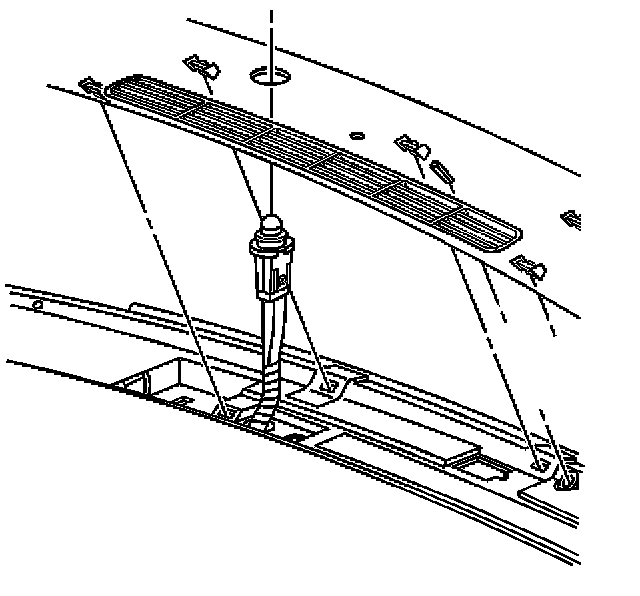

1. Remove the instrument panel upper trim pad.

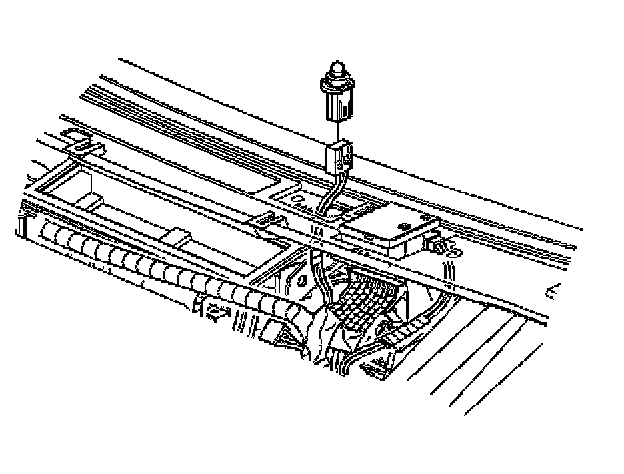

2. Remove the daytime running lamp ambient light sensor socket from instrument panel trim pad by twisting 1/4 turn counterclockwise.




3. Remove the daytime running lamp ambient light sensor from the daytime running lamp ambient light connector.

INSTALLATION PROCEDURE

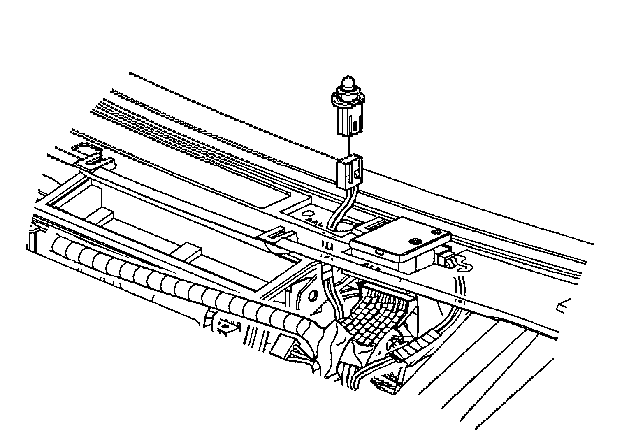

1. Install the Daytime running lamp ambient light sensor to the daytime running lamp ambient light sensor socket.




2. Install the daytime running lamp ambient light sensor socket to instrument panel trim pad twisting 1/4 turn clockwise.

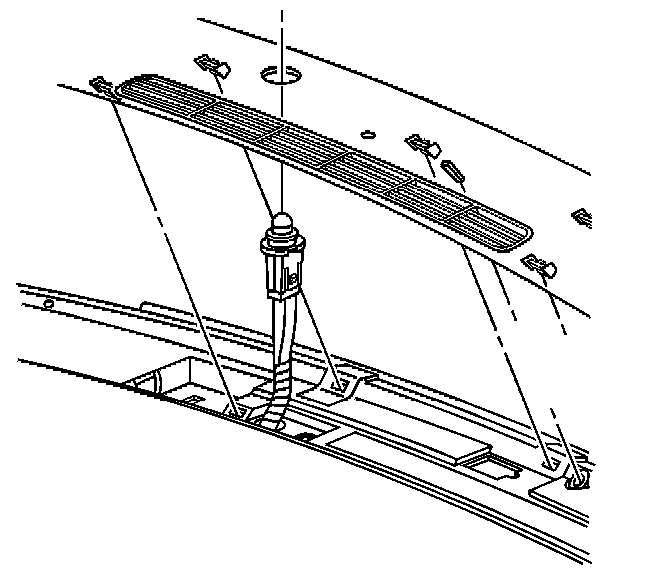

3. Install the instrument panel upper trim pad.
