Horn: Service and Repair

HORN REPLACEMENT

REMOVAL PROCEDURE
1. Remove the right and/or left headlamp.

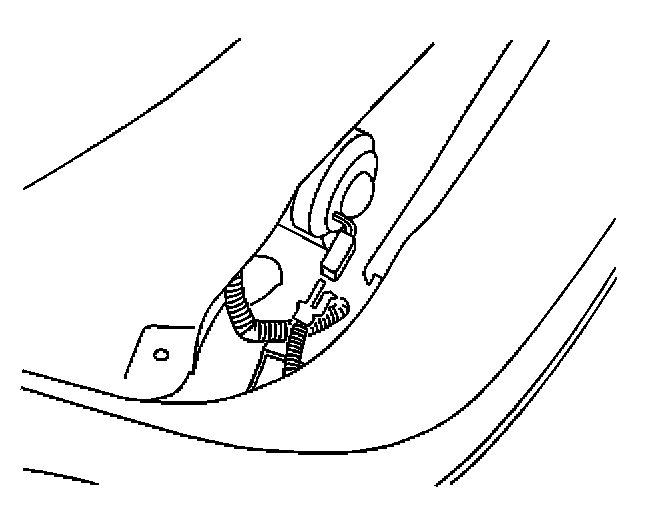

2. Disconnect the horn electrical connector.

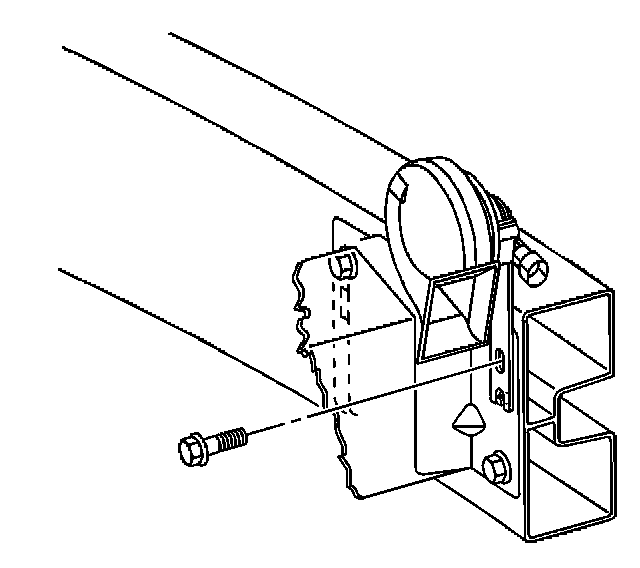

3. Remove the horn bracket bolt.

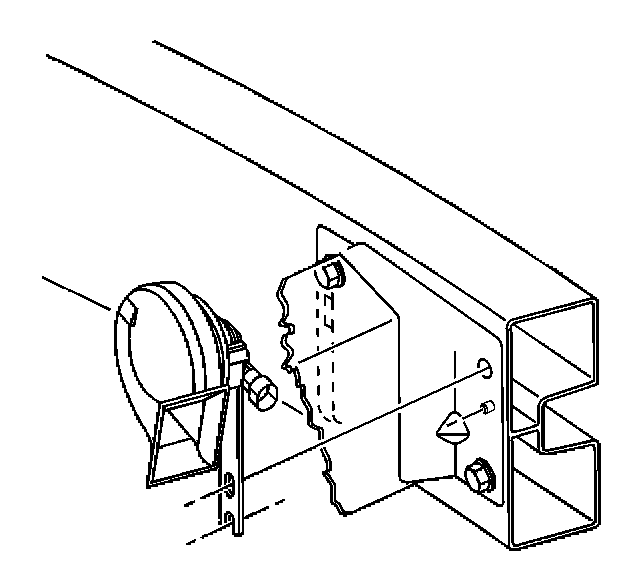

4. Remove the horn from the front bumper impact bar.

INSTALLATION PROCEDURE

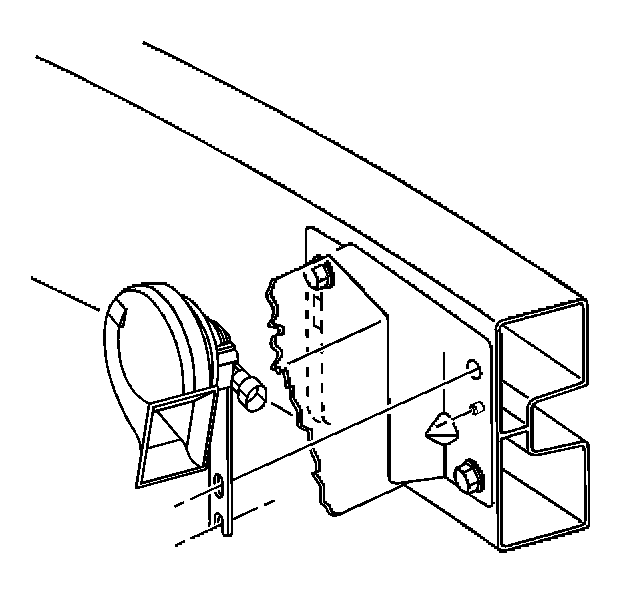

1. Position the horn to the front bumper impact bar; position the horn anti-rotation tab onto the tab on the front bumper impact bar.

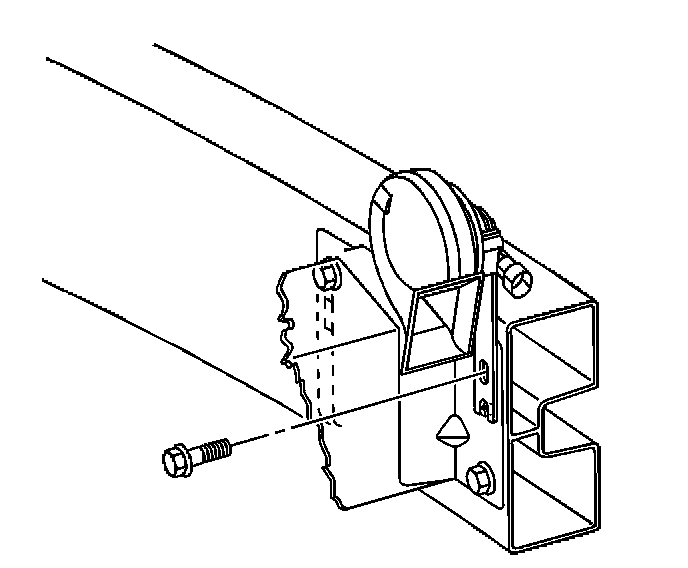

2. Install the horn bracket bolt.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the bolt to 10 N.m (89 lb in).

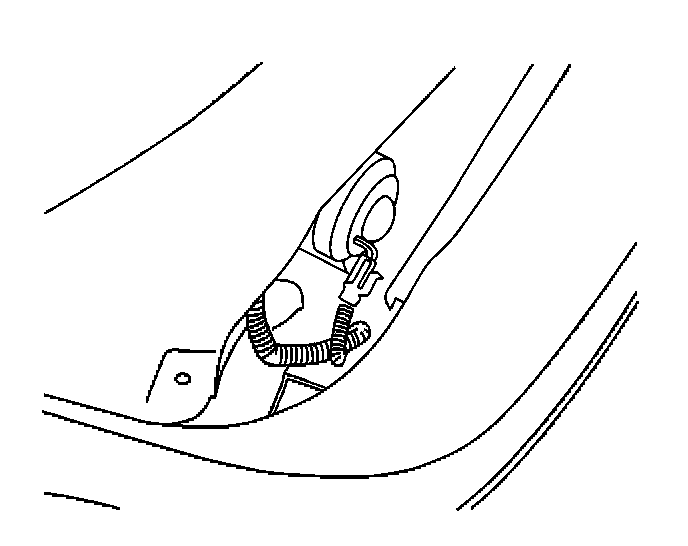

3. Connect the horn electrical connector.
4. Install the right and/or left headlamp.
