License Plate Lamp: Service and Repair

LICENSE LAMP REPLACEMENT (AZTEK)

REMOVAL PROCEDURE
1. Remove the license plate.

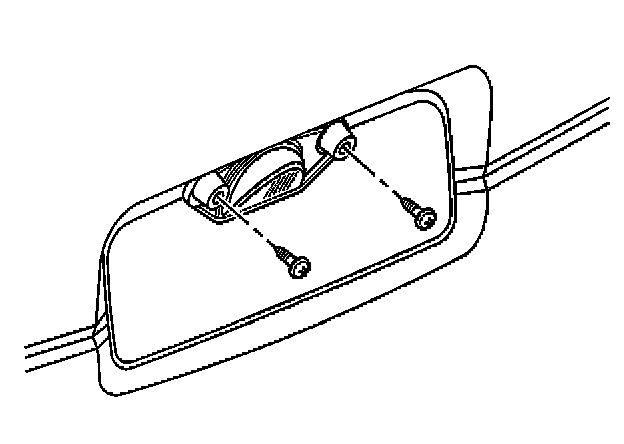

2. Remove the screws from the license plate lamp.

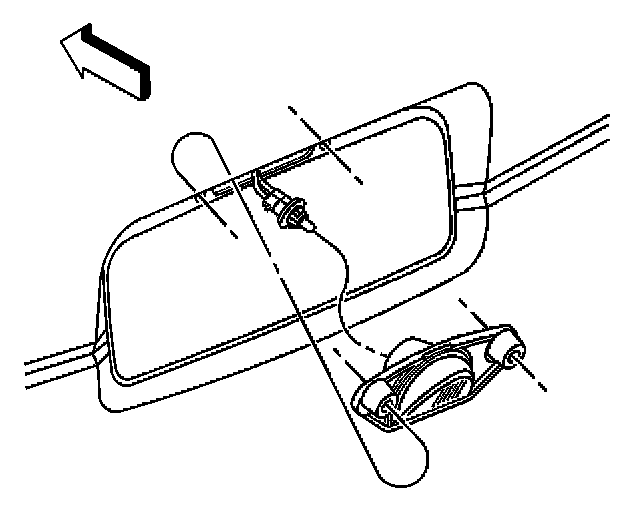

3. Remove the license plate lamp from the end gate.
4. Remove the license plate lamp socket, turning counterclockwise.
5. Remove the bulb from the license plate lamp socket.

INSTALLATION PROCEDURE




1. Install the bulb to the license plate lamp socket.
2. Install the license plate lamp socket, turning clockwise.

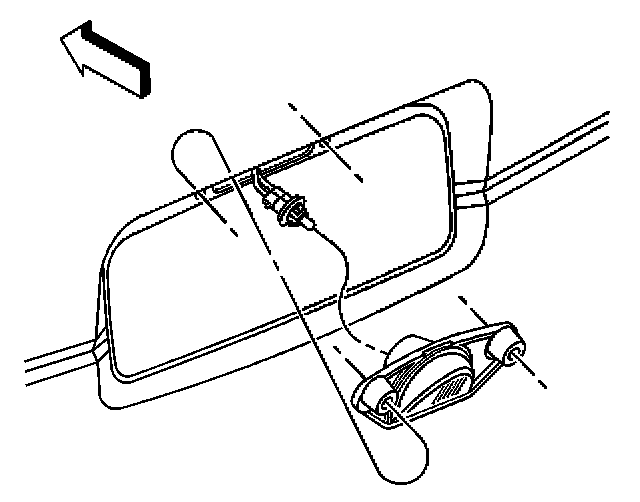

3. Install the license plate lamp to the end gate.




4. Install the screws to the license plate lamp.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to the license plate lamp to 2 N.m (18 lb in).

5. Install the license plate.
