Radiator Hose Replacement - Inlet

Radiator Hose Replacement- Inlet

^ Tools Required
- J 38185 Hose Clamp Pliers

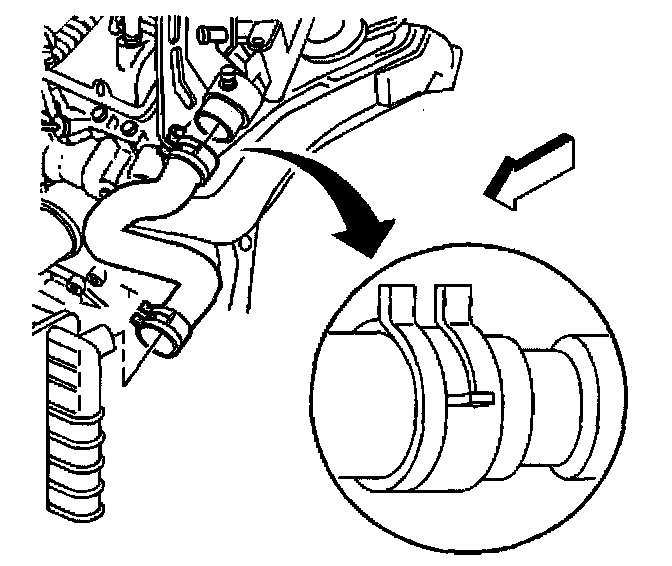

Removal Procedure





1. Drain the cooling system.
2. Reposition the hose clamp at the radiator using the J 38185.
3. Disconnect the radiator inlet hose from the radiator.
4. Reposition the hose clamp at the thermostat housing using the J 38185.
5. Disconnect the radiator inlet hose from the thermostat housing.
6. Remove the radiator inlet hose.

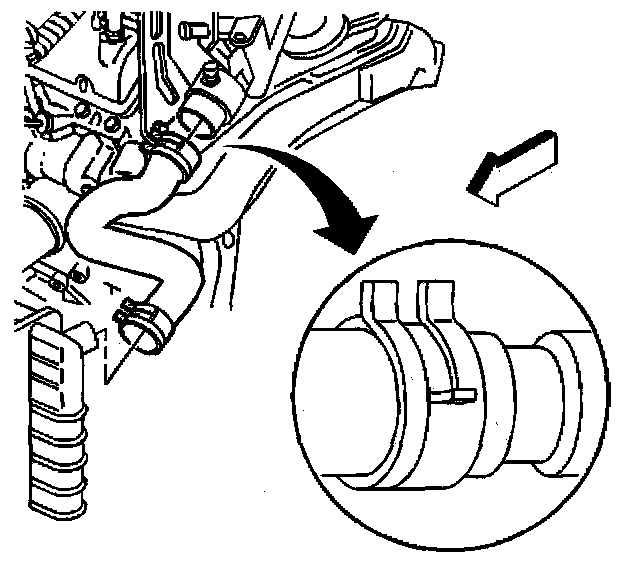

Installation Procedure





1. Install the radiator inlet hose.
2. Connect the radiator inlet hose to the radiator.
3. Reposition the hose clamp at the radiator to secure the hose using the J 38185.
4. Connect the radiator inlet hose to the thermostat housing.
5. Reposition the hose clamp at the thermostat housing to secure the hose using the J 38185.
6. Fill the cooling system.
