On-Vehicle Service

Transmission Vent Replacement

Removal Procedure
1. Remove the throttle body air inlet duct.

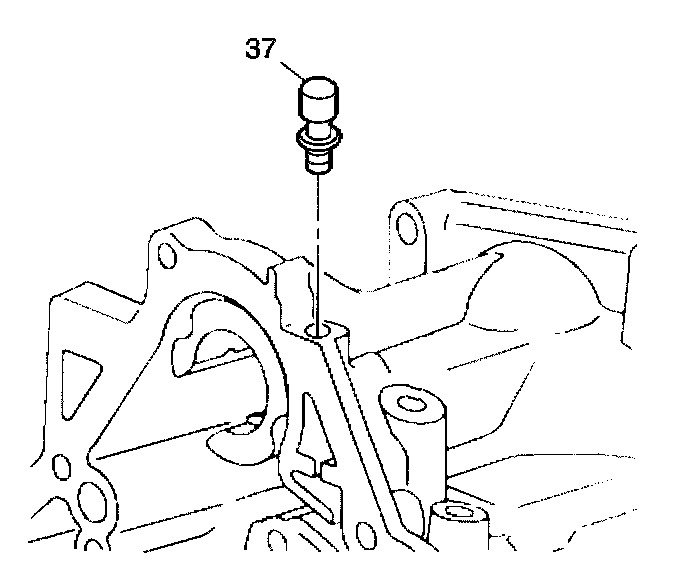

2. Use a hammer and a chisel in order to raise the transaxle vent seat off of the transaxle (37).
3. Use a flat-bladed tool in order to pry the transaxle vent out of the transaxle (37).

Installation Procedure

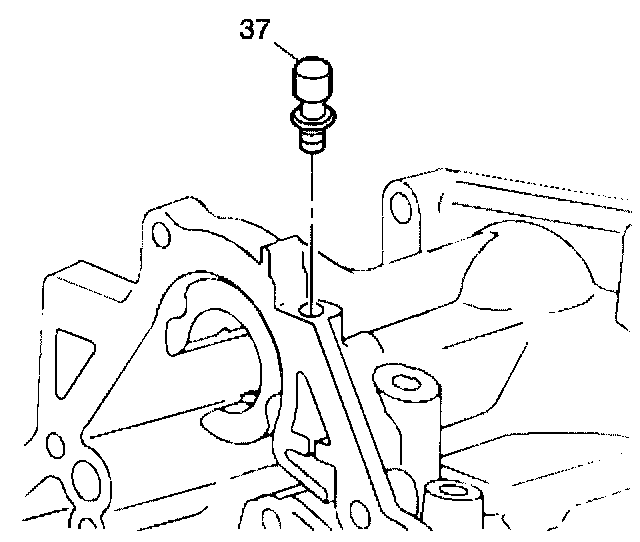

1. Use a small hammer and a flat-bladed tool and tap down on the transaxle vent seat in order to install the transaxle vent (37).
2. Install the throttle body air inlet duct.
