Automatic Transmission Range Selector Cable Lever Replacement

Automatic Transmission Range Selector Cable Lever Replacement

Removal Procedure
1. Remove the throttle body air inlet duct.

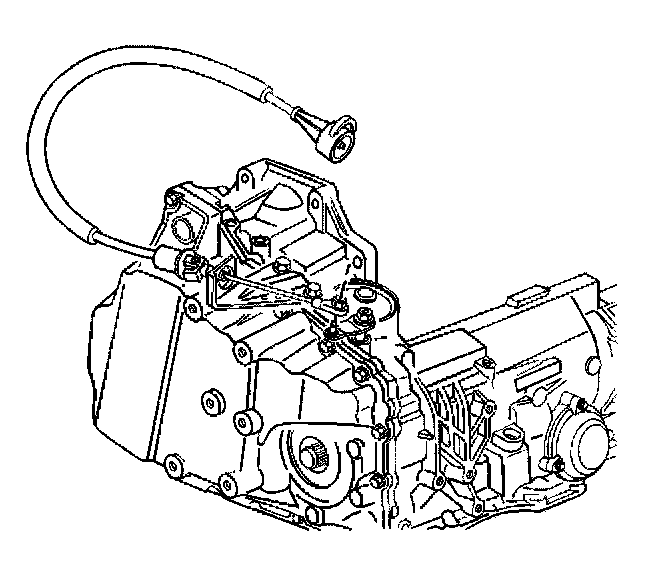

2. Remove the automatic transaxle range selector lever cable from the automatic transaxle range selector lever.

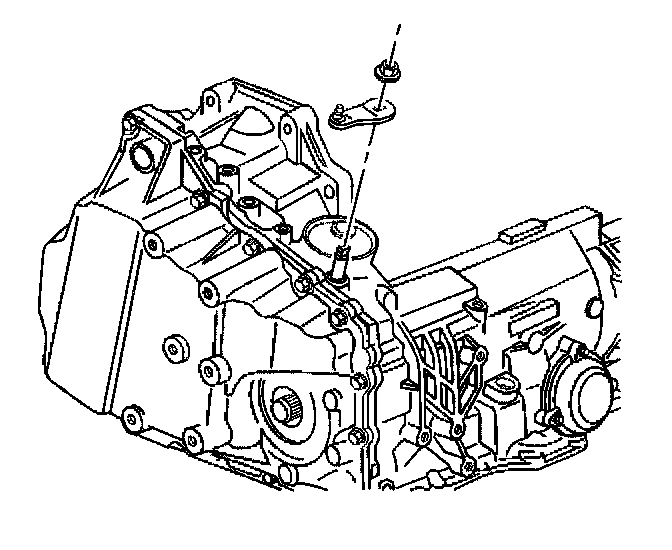

3. Remove the automatic transaxle range selector lever retaining nut.
4. Remove the automatic transaxle range selector lever from the automatic transaxle.

Installation Procedure

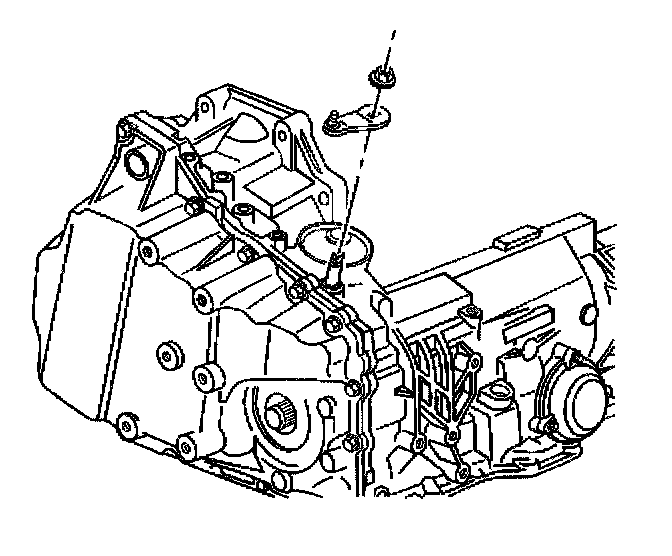

1. Install the automatic transaxle range selector lever to the automatic transaxle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the automatic transaxle range selector lever retaining nut.
Tighten the automatic transaxle range selector lever retaining nut to 20 Nm (15 ft. lbs.).

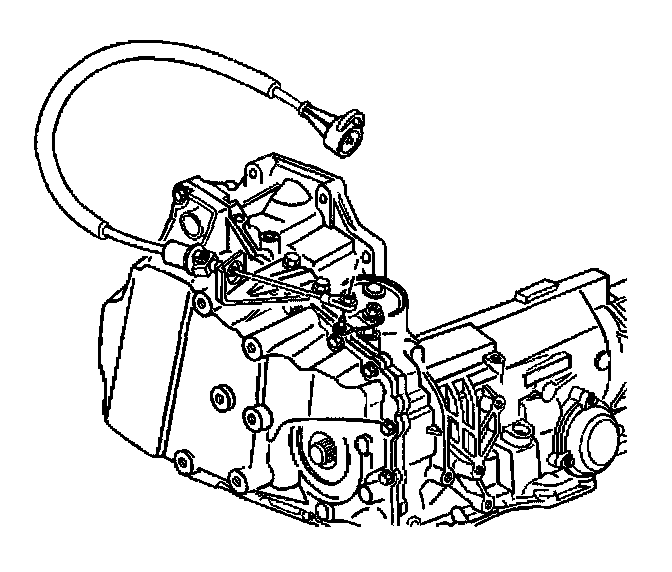

3. Install the automatic transaxle range selector lever cable to the automatic transaxle range selector lever.
4. Adjust the automatic transaxle range selector lever cable if necessary.
5. Install the throttle body air inlet duct.
