Automatic Transmission Mount Replacement

Automatic Transmission Mount Replacement

Removal Procedure
1. Remove the transaxle mount bracket.

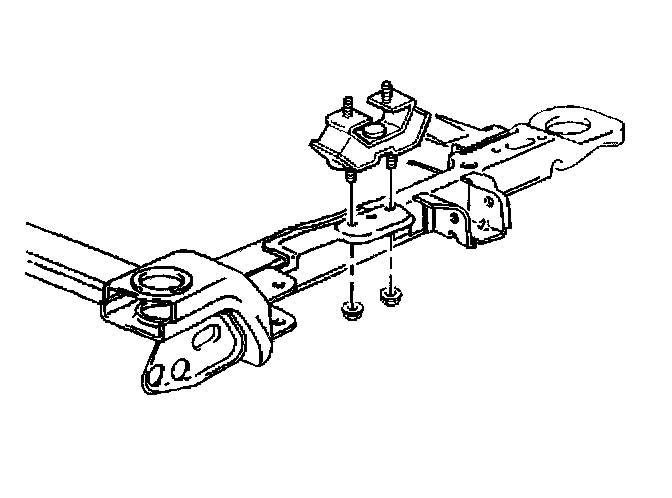

2. Remove the transaxle mount lower nuts to the transaxle mount frame bracket.
3. Remove the transaxle mount from the transaxle mount frame bracket.

Installation Procedure





1. Install the transaxle mount to the transaxle mount frame bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the transaxle mount lower nuts to the transaxle mount frame bracket.
Tighten the transaxle mount lower nuts to 47 Nm (35 ft. lbs.).
3. Install the transaxle mount bracket to the transaxle.
