Power Window Switch Replacement - Left Front

POWER WINDOW SWITCH REPLACEMENT - LEFT FRONT

REMOVAL PROCEDURE

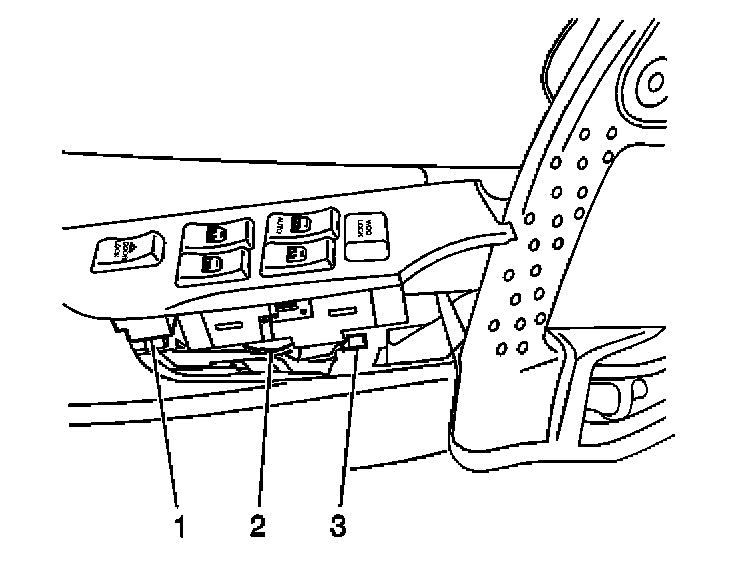

1. Remove the front door lock switch plate from the front door trim panel using a small flat-bladed tool at the front of the power window control switch.
2. Disconnect the electrical connector from the front door window control switch.
3. Remove the front door window control switch from the front door trim panel.
4. Remove the front door window control switch (2) from the front door window switch plate using a small flat-bladed tool.

INSTALLATION PROCEDURE

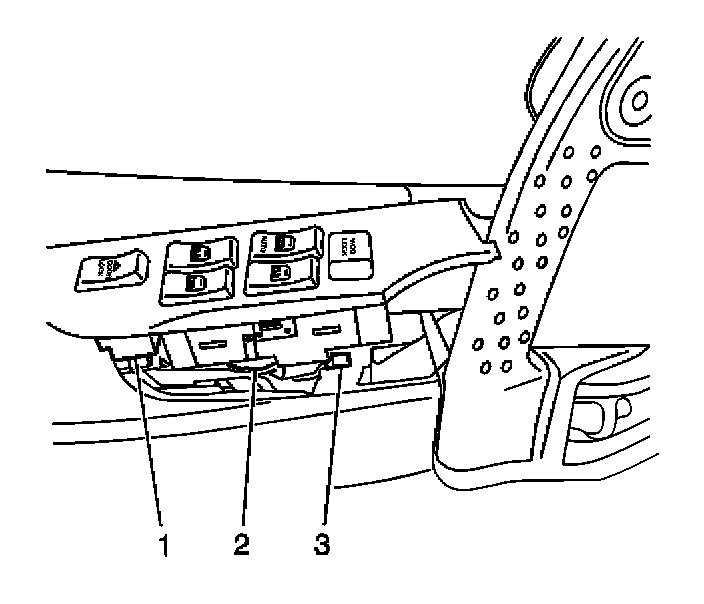

1. Install the front door window control switch (2) into the front door window switch plate.
2. Connect the electrical connectors to the front door window control switch.
3. Install the front door window control switch plate to the front door panel pressing into place until fully seated.
