Power Window Switch Replacement - Rear Door

POWER WINDOW SWITCH REPLACEMENT - REAR DOOR

REMOVAL PROCEDURE




1. Remove the power window switch mounting plate using a small flat-bladed tool.
Insert the tool at the rear of the switch mounting plate releasing the switch plate retainer.

IMPORTANT: Protect the trim panel at the point of insertion of the flat bladed tool to avoid damaging the door panel.

2. Lift the rear of the switch plate.
3. Disconnect the electrical connector.

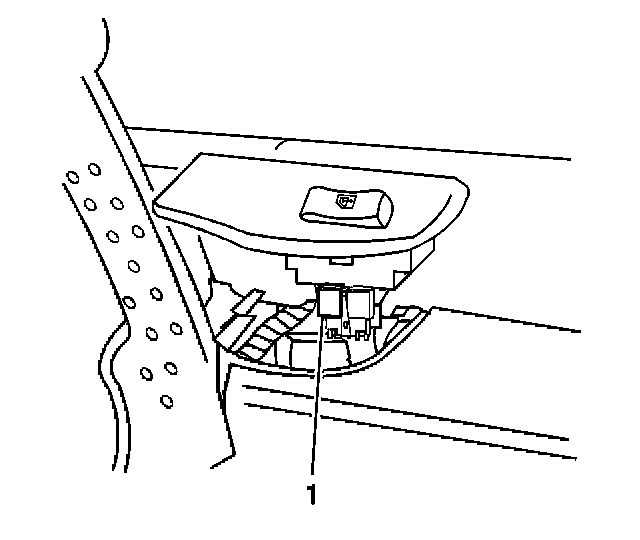

4. Remove the power window switch (1) from the mounting plate.

INSTALLATION PROCEDURE

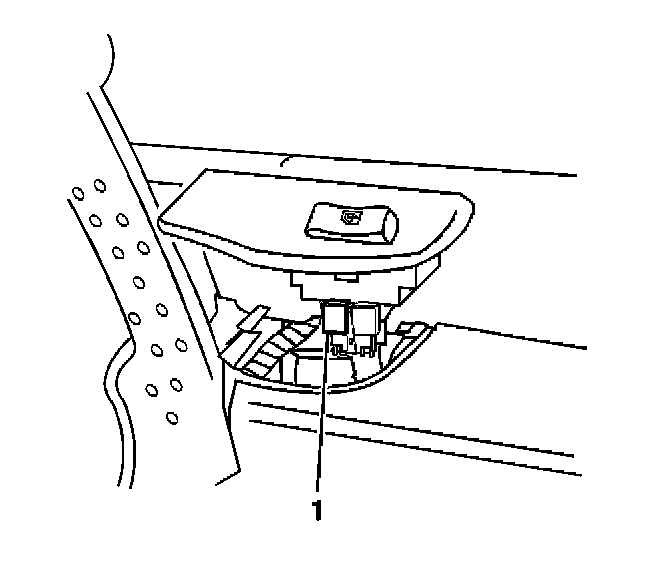

1. Install the power window switch (1) to the mounting plate.
2. Connect the electrical connector.
3. Insert the front of the mounting plate into the trim panel.
4. Press down on the rear of the mounting plate until the plate is fully seated.
