Traction Control Switch: Service and Repair





Traction Control Switch Replacement (w/NW9)

Removal Procedure

1. Remove the trim plate bezel - IP Cluster. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages and Console.
2. Remove the console accessory switch mount plate. Refer to Console Accessory Switch Mount Plate Replacement in Instrument Panel, Gages and Console.

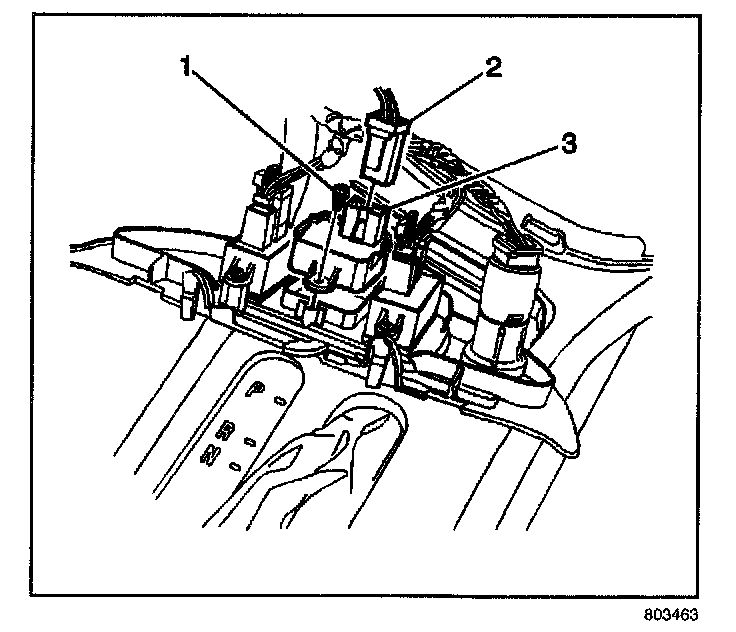

3. Disconnect the electrical connector (2) from the traction control switch.
4. Remove the traction control switch mounting screw (1).
5. Remove the traction control switch (3).

Installation Procedure
1. Install the traction control switch (3).

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the traction control switch mounting screw (1).
Tighten
Tighten the traction control mounting screw to 2 N.m (18 lb in).
3. Connect the electrical connector (2) to the traction control switch.
4. Install the console accessory switch mount plate. Refer to Console Accessory Switch Mount Plate Replacement in Instrument Panel, Gages and Console.
5. Install the trim plate bezel - IP Cluster. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages and Console.
