Seat Switch Replacement - Power

SEAT SWITCH REPLACEMENT - POWER

REMOVAL PROCEDURE
1. Remove the outer trim panel from the front seat cushion.

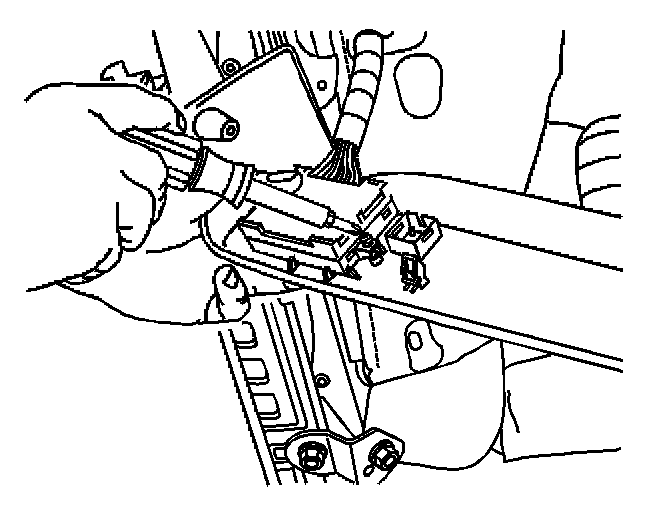

2. Remove the screws from the seat switch to the trim panel.

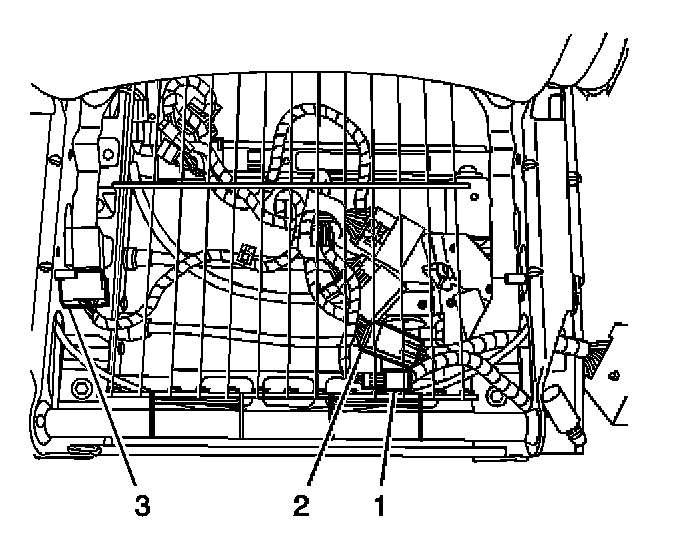

3. Disconnect the electrical connector (2) from the power front seat switch.
4. Remove the power front seat switch.

INSTALLATION PROCEDURE




1. Connect the electrical connector (2) to the power front seat switch.

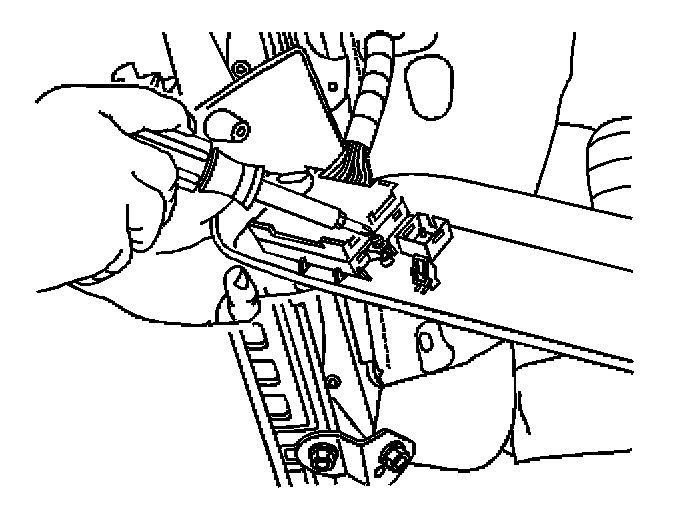

2. Install the power seat switch screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 3 N.m (27 lb in).

3. Install the outer trim panel to the front seat cushion.
