Procedures

HEATED SEAT SWITCH REPLACEMENT - FRONT

REMOVAL PROCEDURE
1. Remove the trim plate from the front floor console.

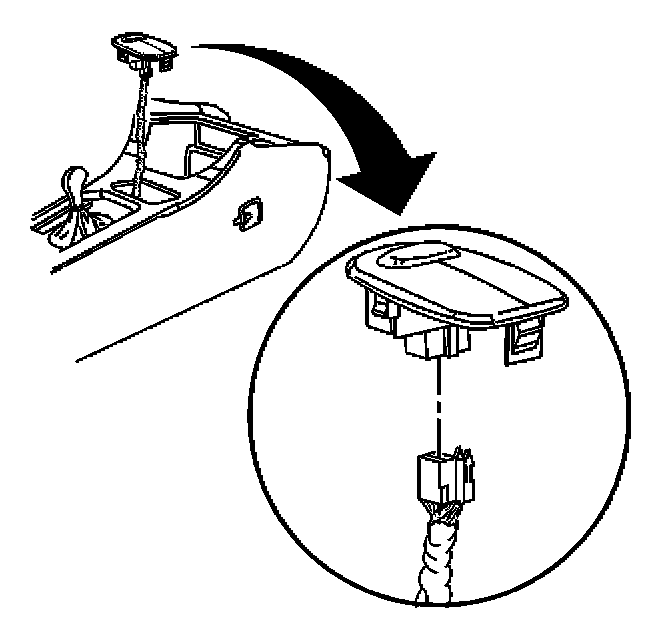

2. Disconnect the electrical connector from the wiring harness in the front floor console.
3. Using a small flat-bladed tool, release the retainer clips from the heated seat switch.
4. Remove the heated seat switch from the console trim plate.

INSTALLATION PROCEDURE




1. Install the heated seat switch to the front floor console trim plate, pressing into place until fully seated.
2. Connect the electrical connector to the console wiring harness.
3. Install the trim plate to the front floor console.
