Auxiliary Power Outlet: Service and Repair

ACCESSORY POWER RECEPTACLE REPLACEMENT - FLOOR CONSOLE

REMOVAL PROCEDURE
1. Remove the front floor console trim plate.

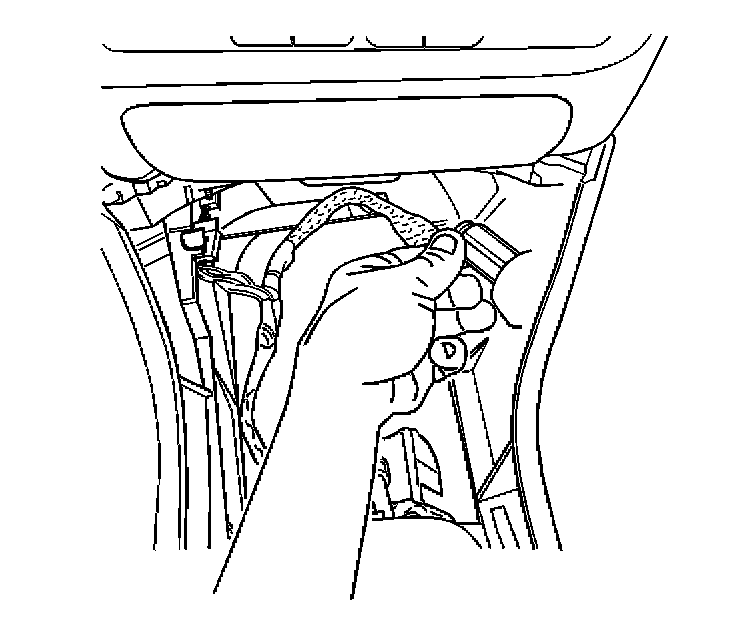

2. Disconnect the electrical connector from the front floor console power accessory port.

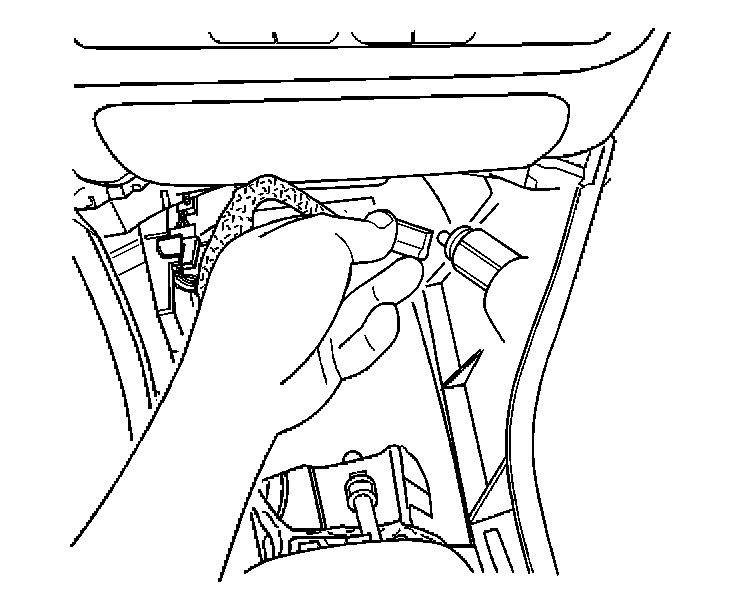

3. Unscrew the housing from the power accessory port.
4. Remove the power accessory port from the front floor console.

INSTALLATION PROCEDURE




1. Position the power accessory port to the front floor console.

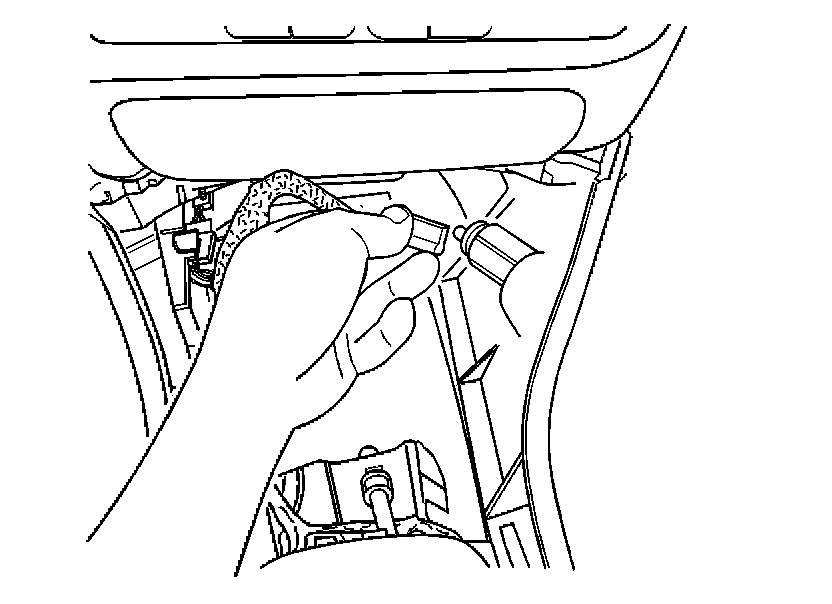

2. Screw the housing to the power accessory port.

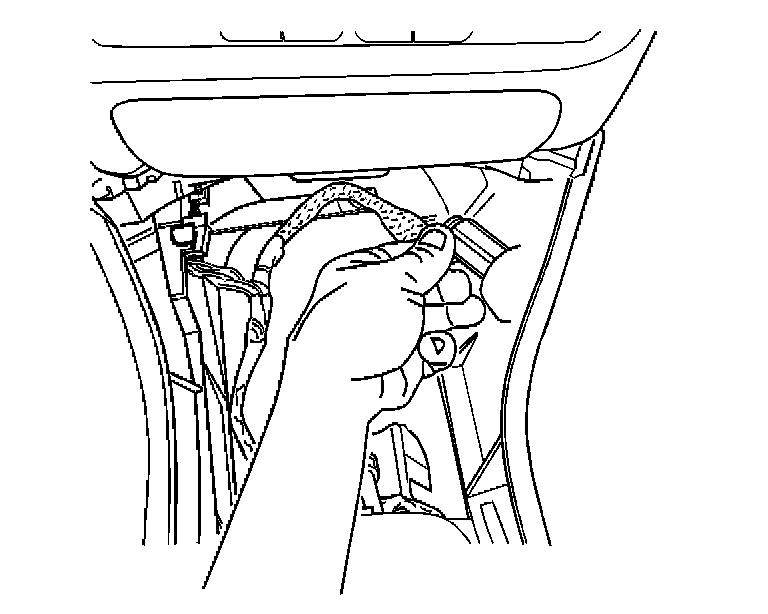

3. Connect the electrical connector to the power accessory port.
4. Install the front floor console trim plate.
