Removal and Replacement



Defroster Grille Replacement (Pontiac)

Removal Procedure

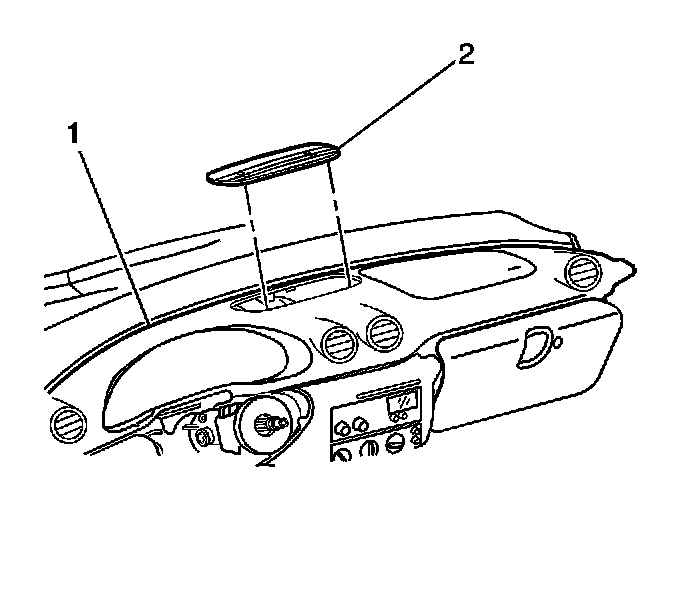

1. Release the defroster grille (2) retainers using a small flat-bladed tool.
2. Remove the grille (2) from the instrument panel (I/P) upper trim pad (1).

Installation Procedure




1. Position the grille (2) to the I/P trim pad (1).
2. Install the grille (2) to the I/P trim pad (1), pressing into place until fully engaged.
