Installation

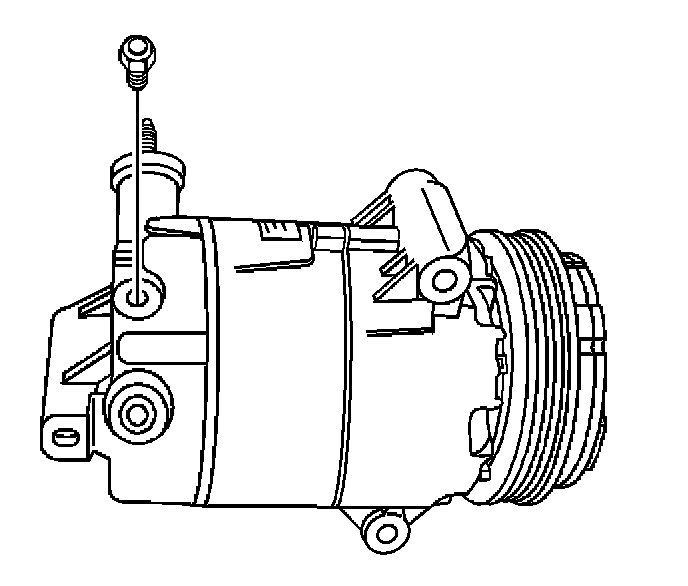

COMPRESSOR PRESSURE RELIEF VALVE INSTALL (CVC-DIRECT MOUNT) 1.
Clean the pressure relief valve seat area on the A/C compressor.
2.
Lubricate the O-ring of the new pressure relief valve with clean
refrigerant oil.
3.
Install the new pressure relief valve into the A/C compressor.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten Tighten the pressure relief valve to
7 N.m (60 lb in).
