Turn Signal Lamp: Service and Repair
PARK/TURN SIGNAL LAMP REPLACEMENTREMOVAL PROCEDURE
1. Open the hood.
2. Remove the hood close out filler panel.

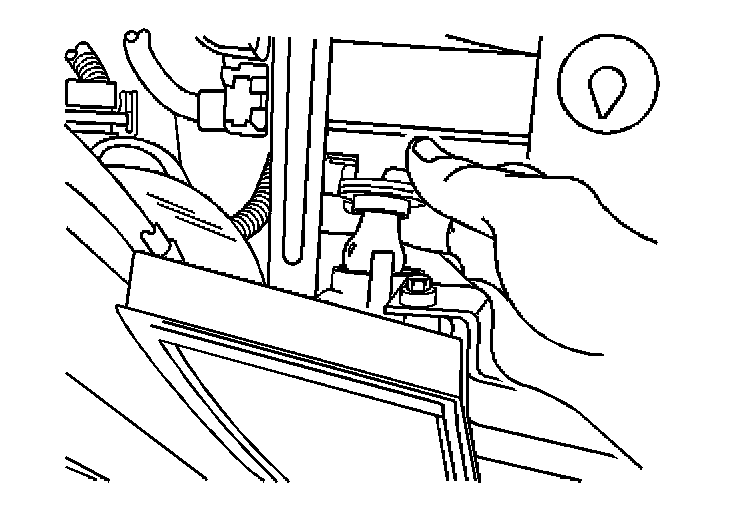

3. Remove the park/turn signal bulb/socket by depressing the lock tab and rotating the bulb/socket counterclockwise.

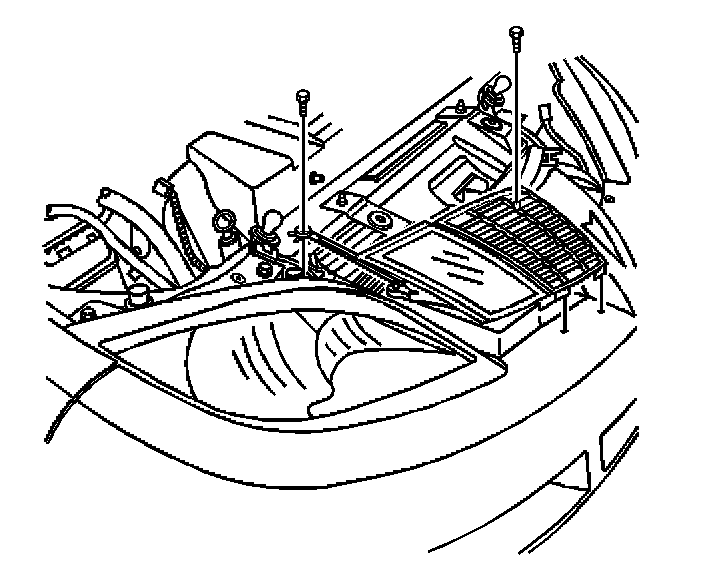

4. Remove the bolt that retains the park/turn signal lamp bracket to the upper tie bar.
5. Remove the screw that retains the grille assembly to the fascia. Remove the park/turn lamp housing with the grille assembly from the vehicle.

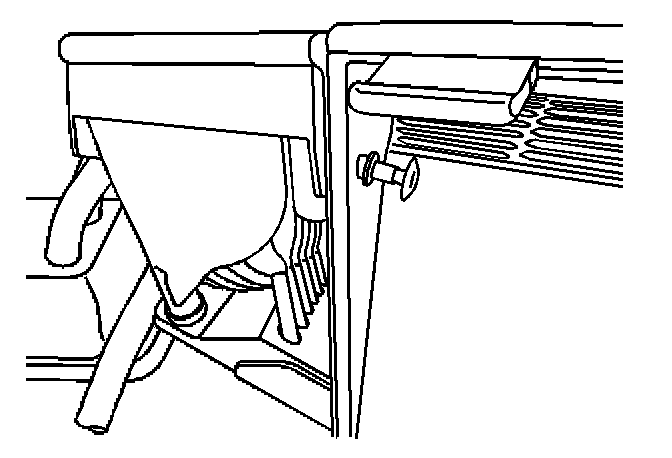

6. Remove the push retainer that secures the grille to the park/turn lamp assembly.

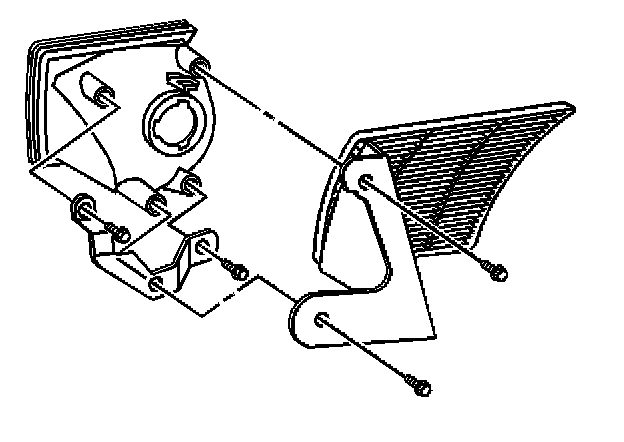

7. Remove the bolts/screws that retain the grille assembly to the park/turn lamp assembly.
8. Remove the bolts that retain the park/turn signal lamp assembly from the lamp.
INSTALLATION PROCEDURE
1. Install the bolts/screws to retain the park/turn signal lamp assembly to the park/turn lamp.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the bolts/screws to 2 N.m (18 lb. in)
2. Install the bolts/screws to retain the grille assembly to the park/turn lamp.
Tighten
Tighten the bolts/screws to 2 N.m (18 lb. in)
3. Install the push retainer that secures the grille to the park/turn lamp assembly.
4. Position the park/turn lamp housing with the grille assembly to the vehicle.
5. Install the bolt that retains the park/turn signal lamp bracket to the upper tie bar.
Tighten
Tighten the bolt to 10 N.m (89 lb in)
6. Install the screw that retains the grille assembly to the fascia.
7. Install the park/turn signal bulb/socket by depressing the lock tab and rotating the bulb/socket clockwise.
8. Install the hood close out filler panel.
9. Close the hood.
