Engine ID and VIN Derivative

ENGINE ID AND VIN DERIVATIVE LOCATION

Engine ID and VIN Derivative:

The eighth digit of the vehicle identification number (VIN) is the engine code letter, which identifies the engine as a 5.7L V8 (VIN eighth digit: G) (RPO code LS1).

Stick-on labels attached to the engine, laser etching, or stampings in the engine block indicate the engine unit number/build date code.

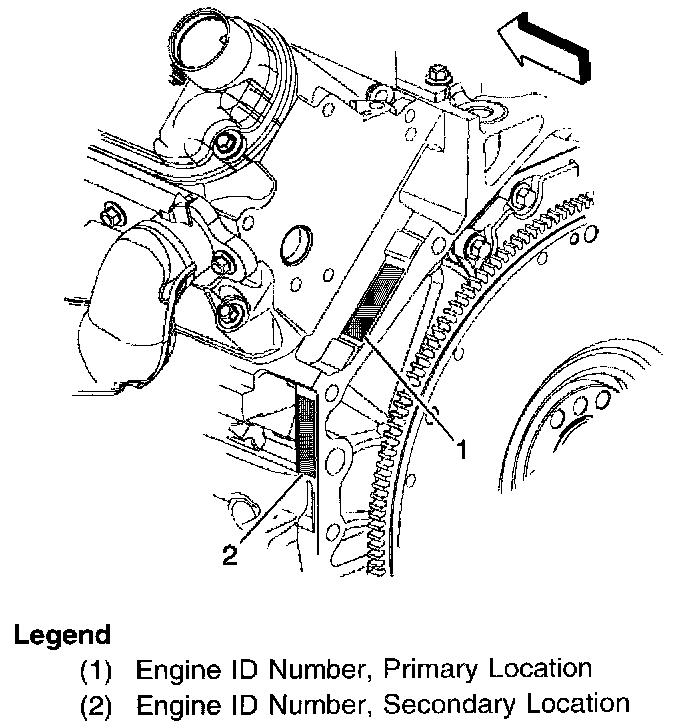

The engine ID number will be located rear of LH cylinder head or the front part of LH oil pan rail.
