Cruise Control Switch: Adjustments

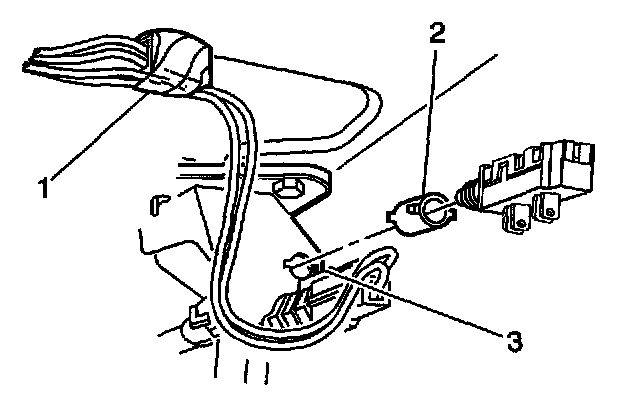

CRUISE RELEASE SWITCH ADJUSTMENT 1.
Hold the brake pedal in the pressed position.
2.
Push the switch forward until the switch body locates the clip (2).
3.
Pull the brake pedal fully against the pedal stop.
4.
Press the brake pedal again to ensure the switch is adjusted correctly.
5.
Connect the cruise control release switch electrical connector (1).
