Cruise Release Switch Replacement

CRUISE RELEASE SWITCH REPLACEMENT

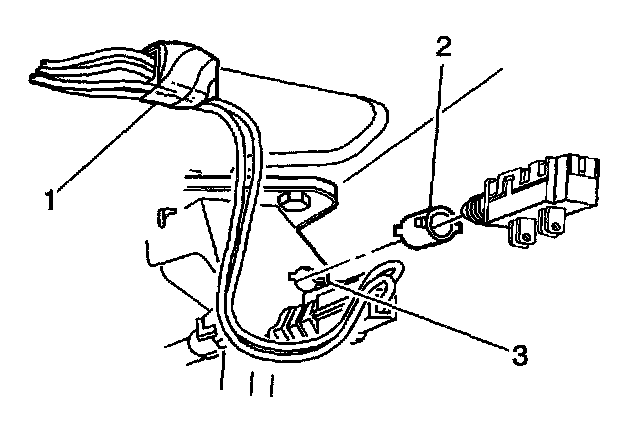

Removal Procedure





1 .Remove the instrument panel lower trim retainer.
2. Disconnect the cruise control release switch electrical connector (1).
3. Pull the switch from the tubular clip (2).
4. If necessary, remove the clip from the brake pedal support (3).

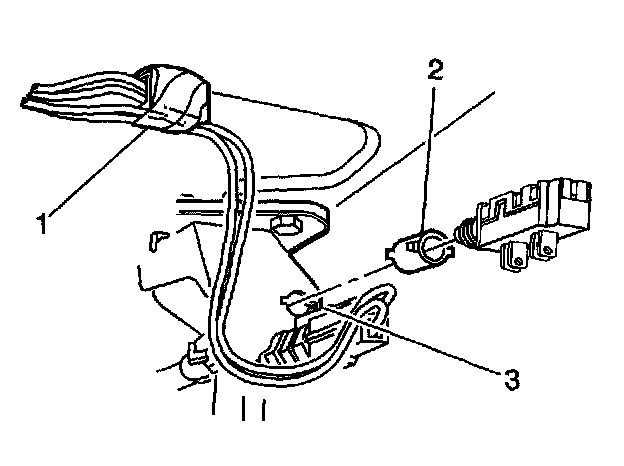

Installation Procedure





1. If removed, install the tubular clip into the mounting hole of the break pedal support (3), then adjust the release switch.
2. Connect the cruise control release switch electrical connector (1).
3. Install the instrument panel lower trim retainer
