Body Control Systems
Body Control System
Schematic and Routing Diagrams

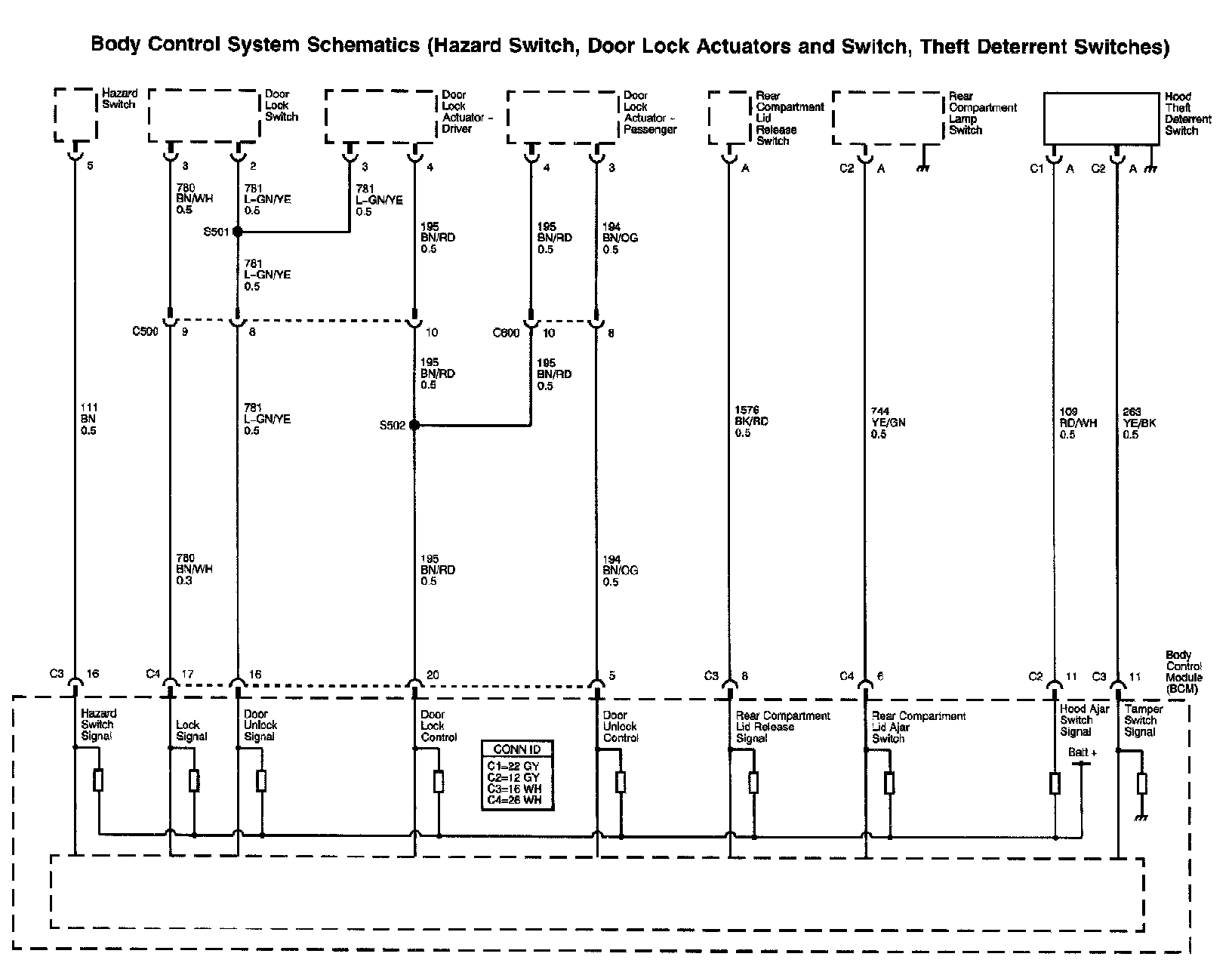

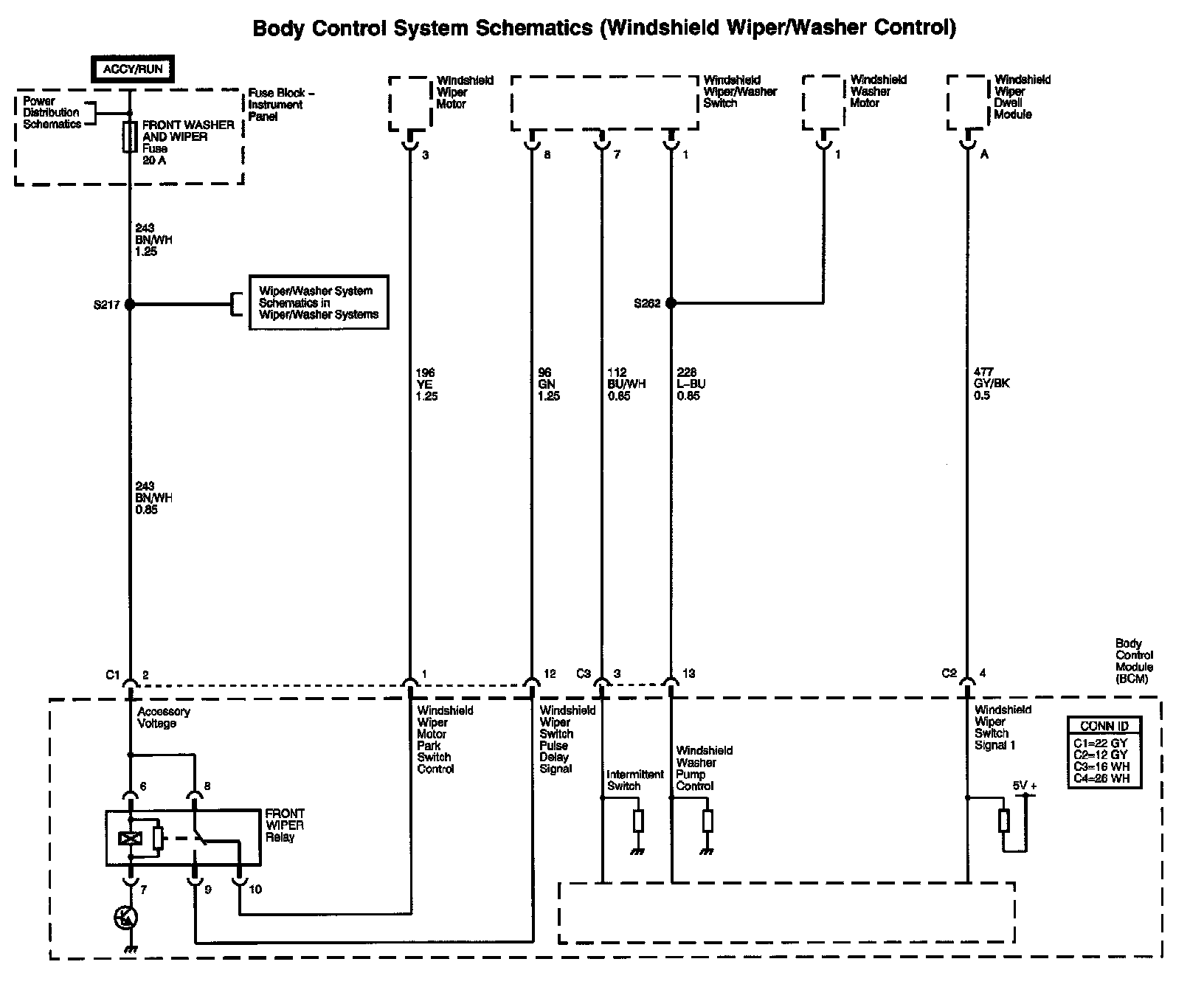

Body Control System Diagram 1:

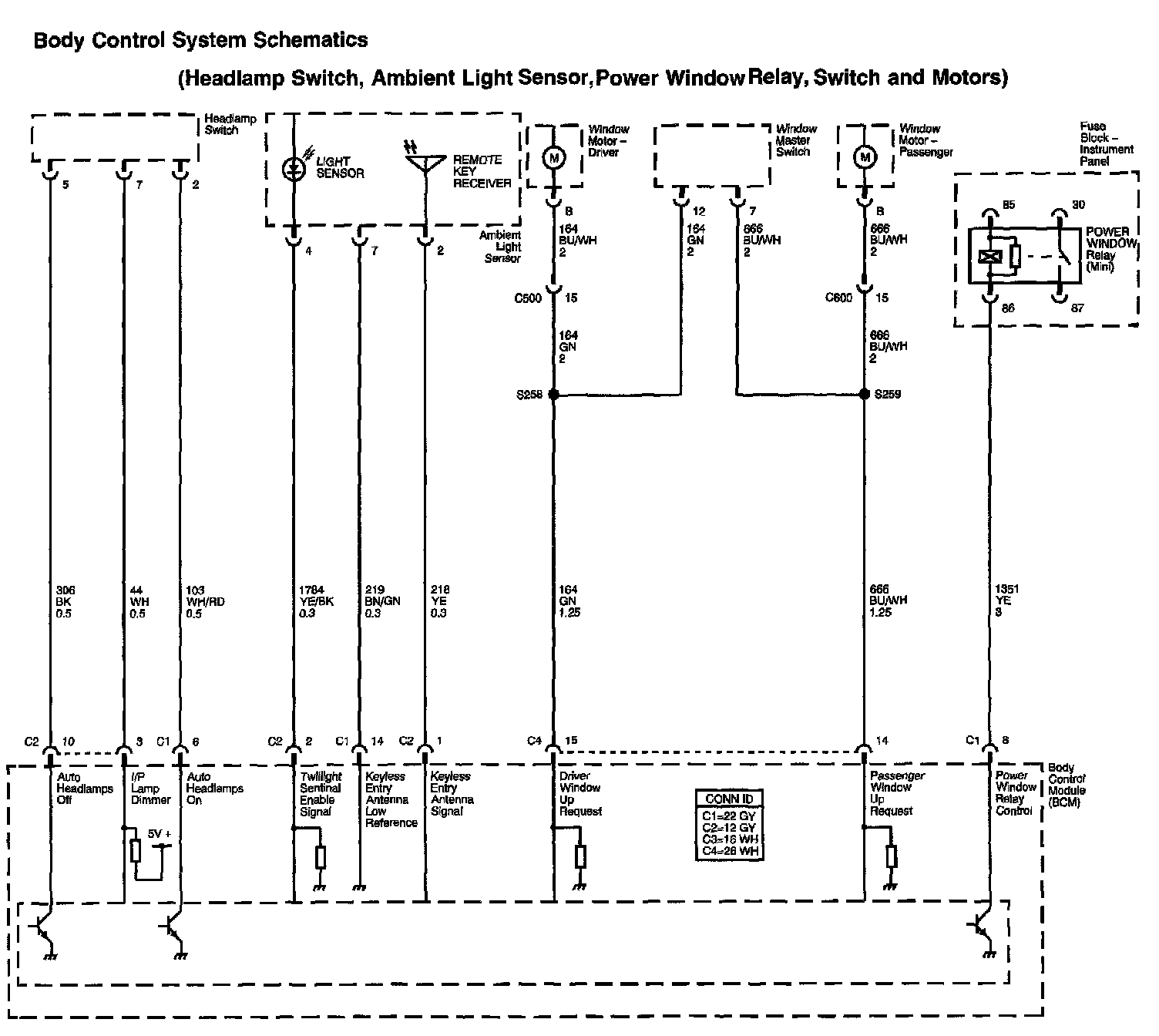

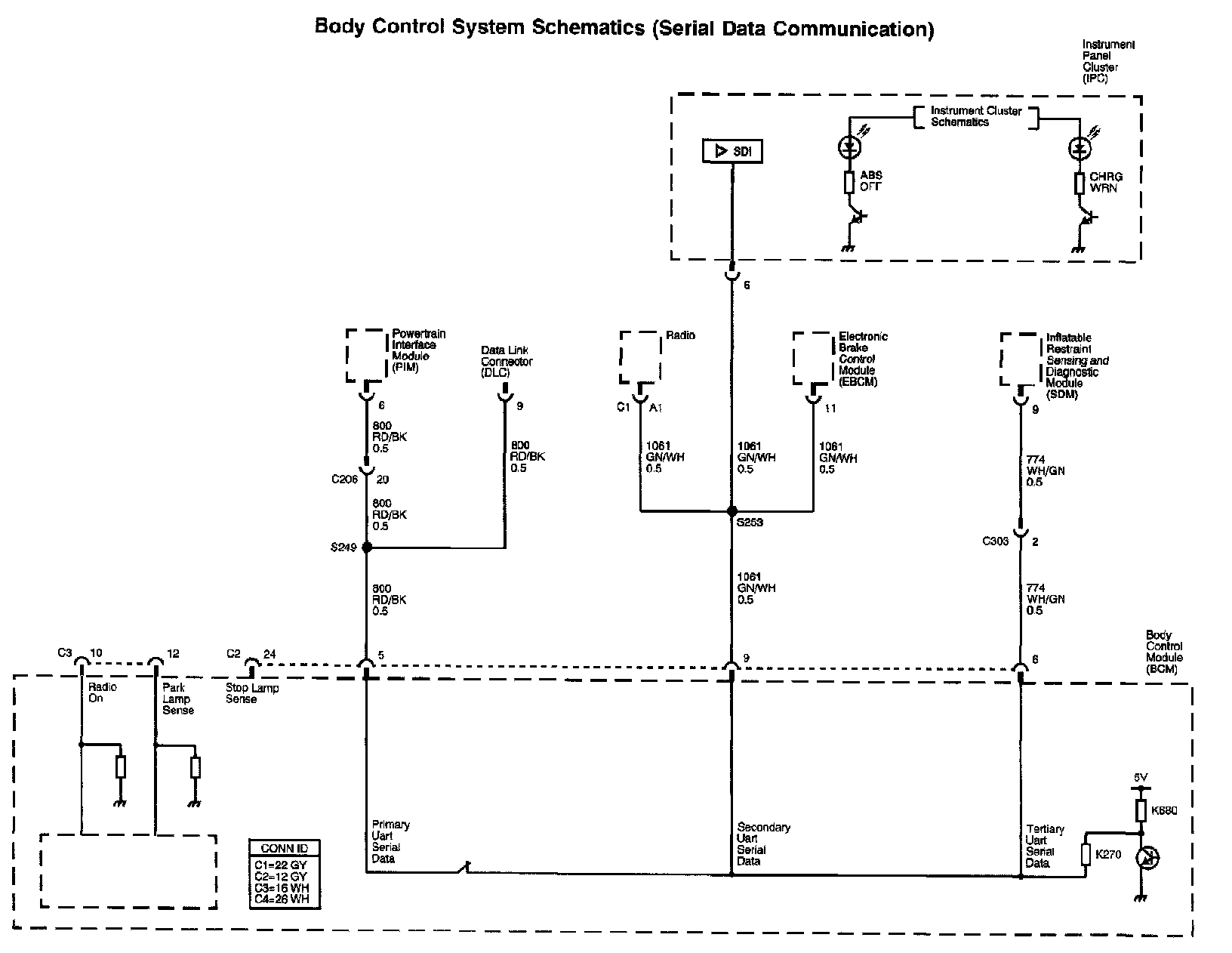

Body Control System Diagram 2:

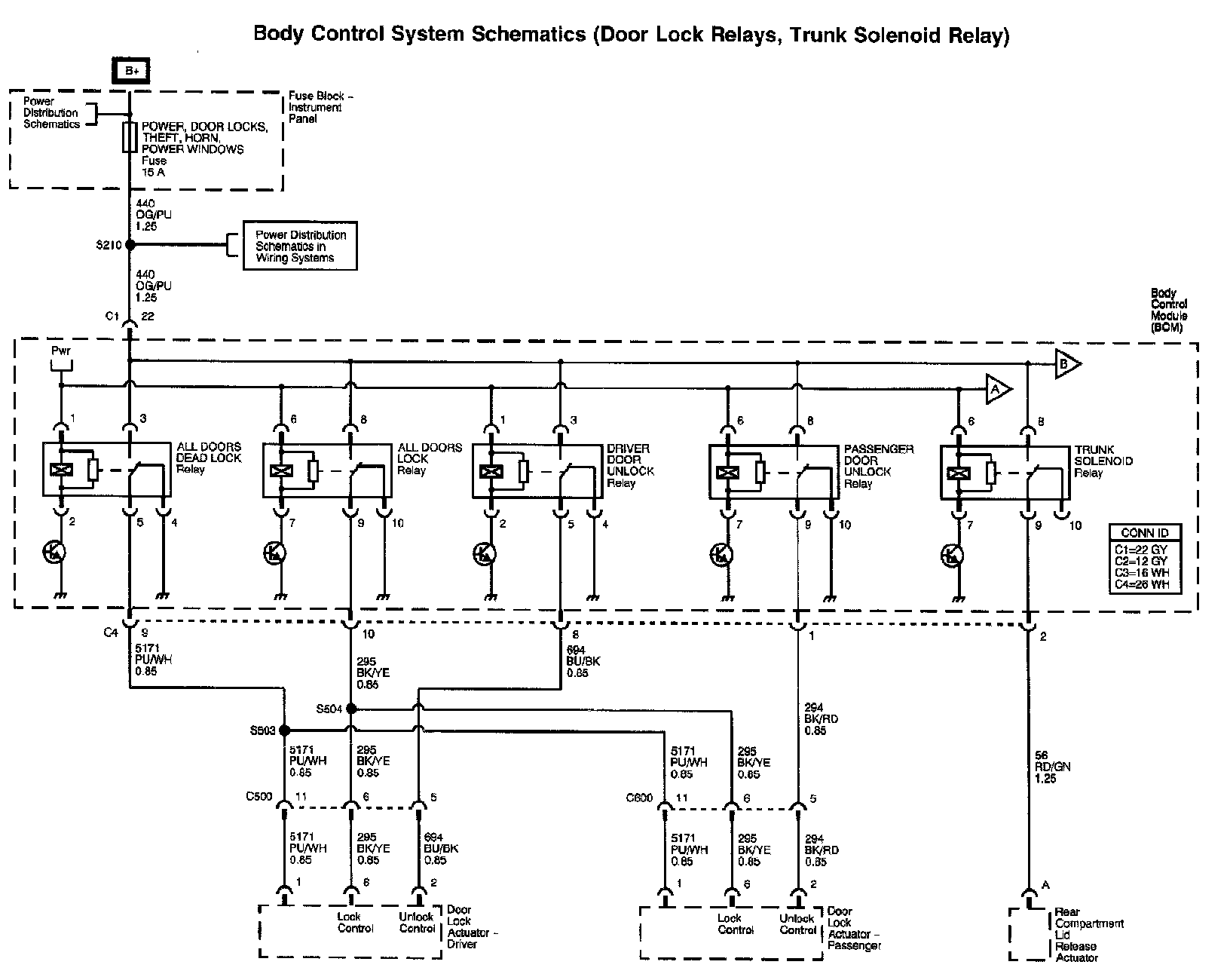

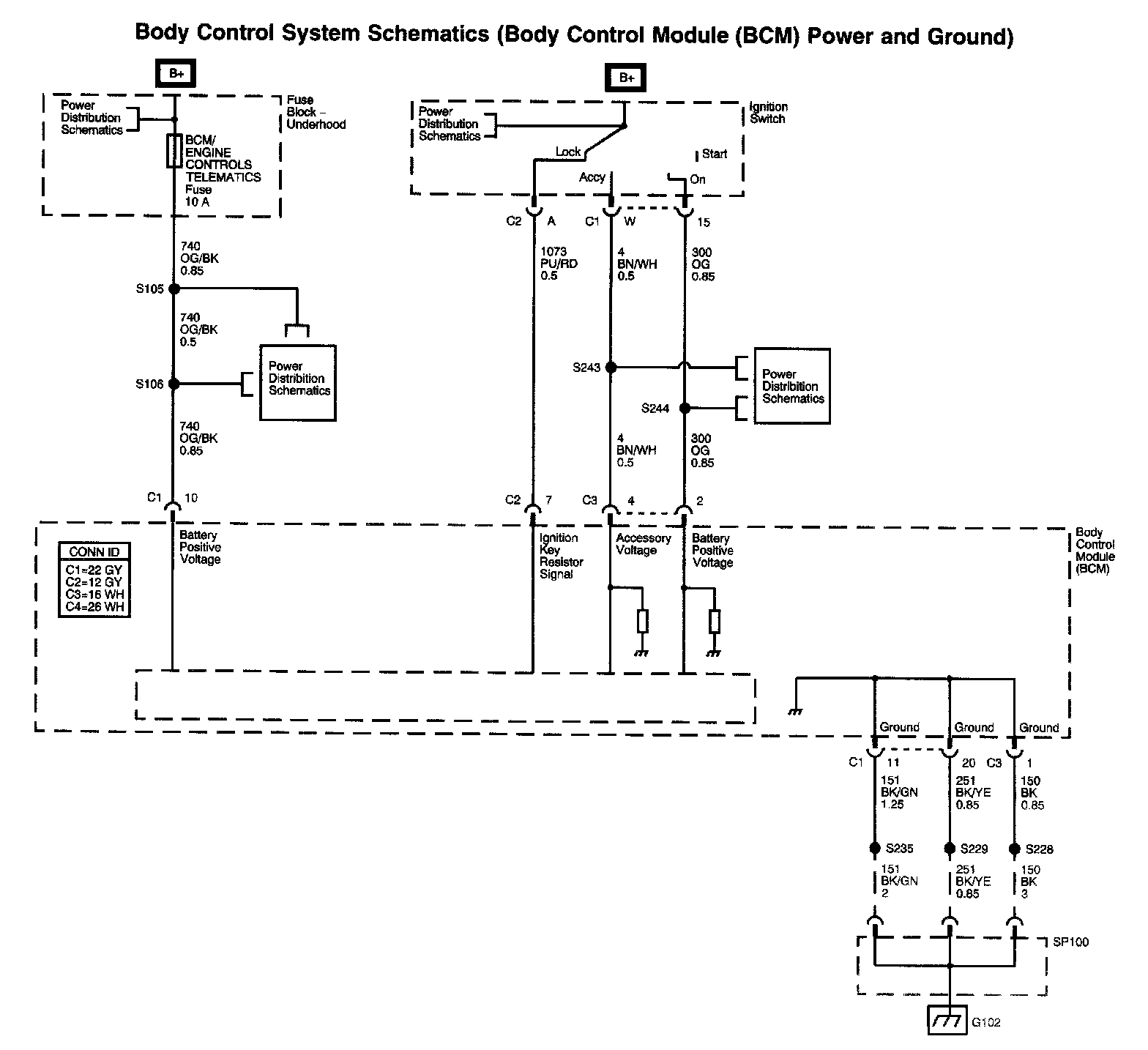

Body Control System Diagram 3:

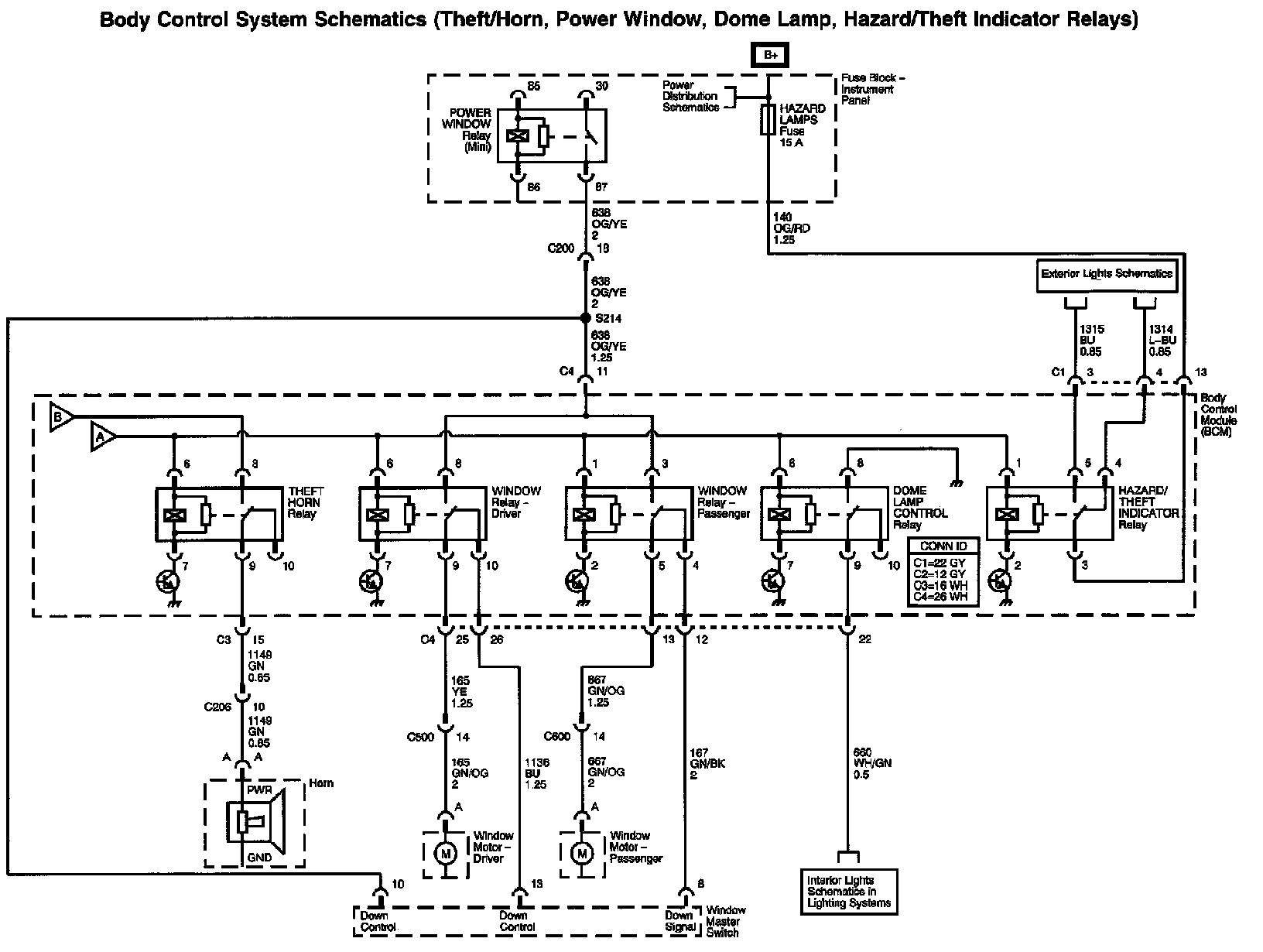

Body Control System Diagram 4:

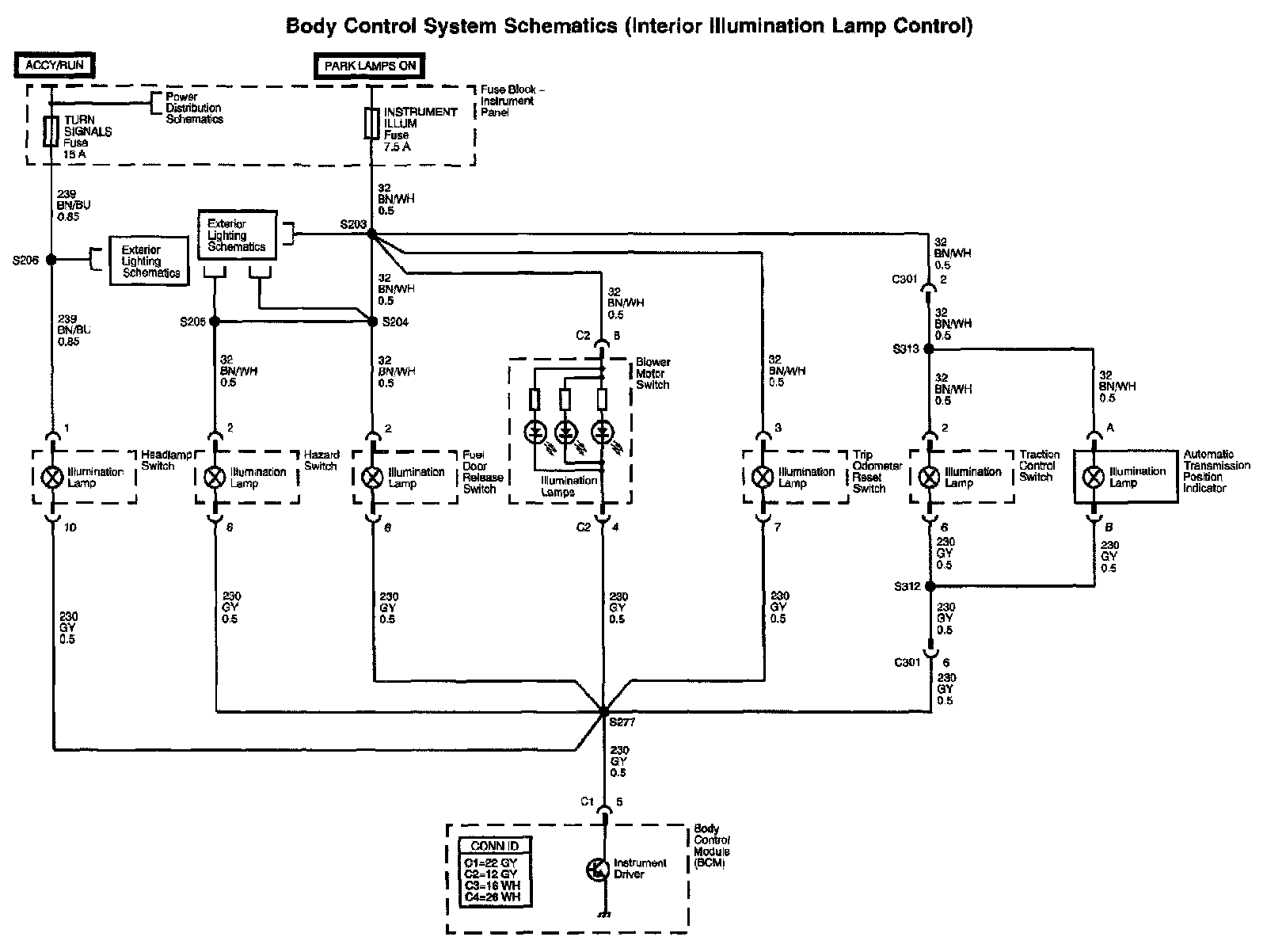

Body Control System Diagram 5:

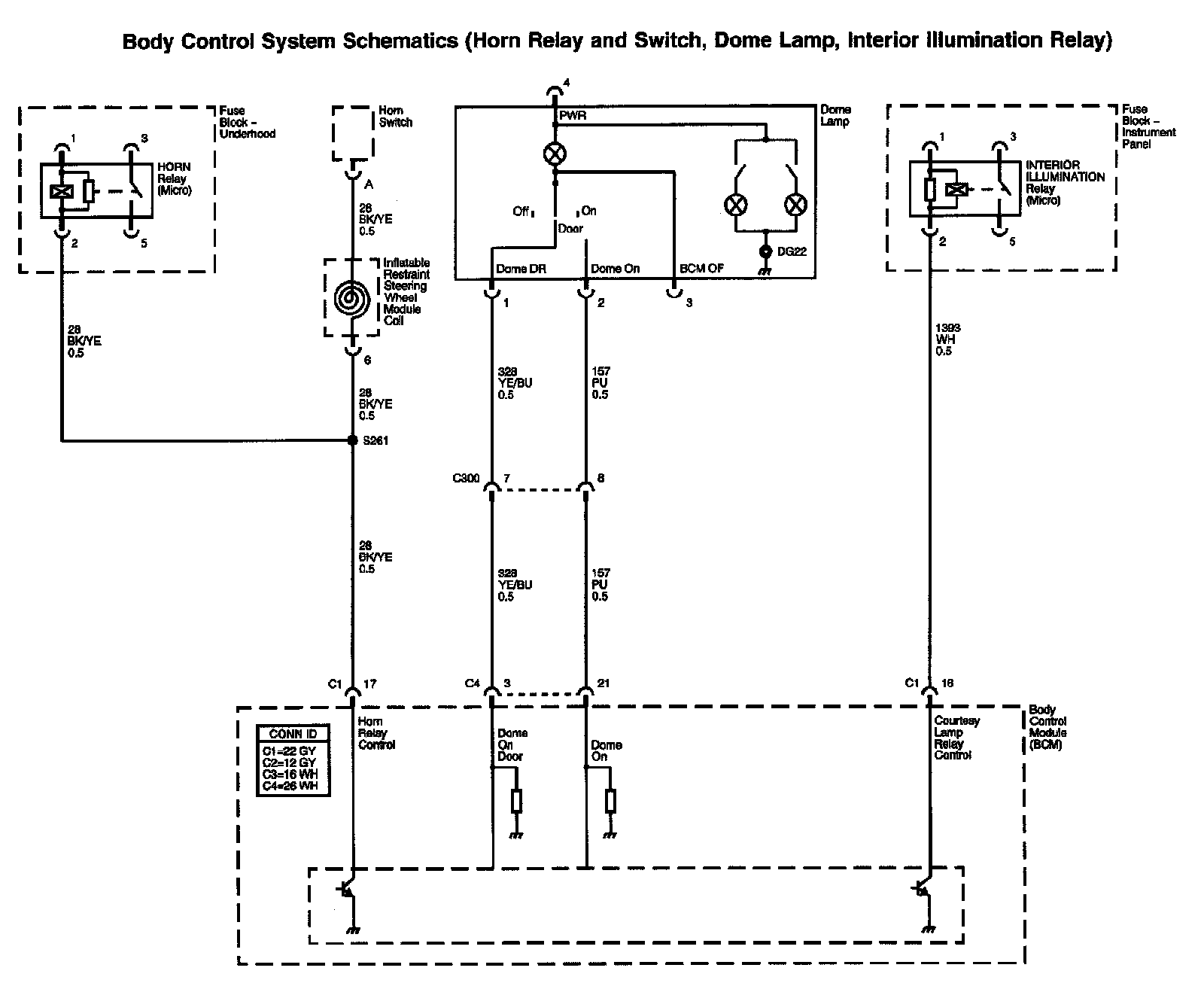

Body Control System Diagram 6:

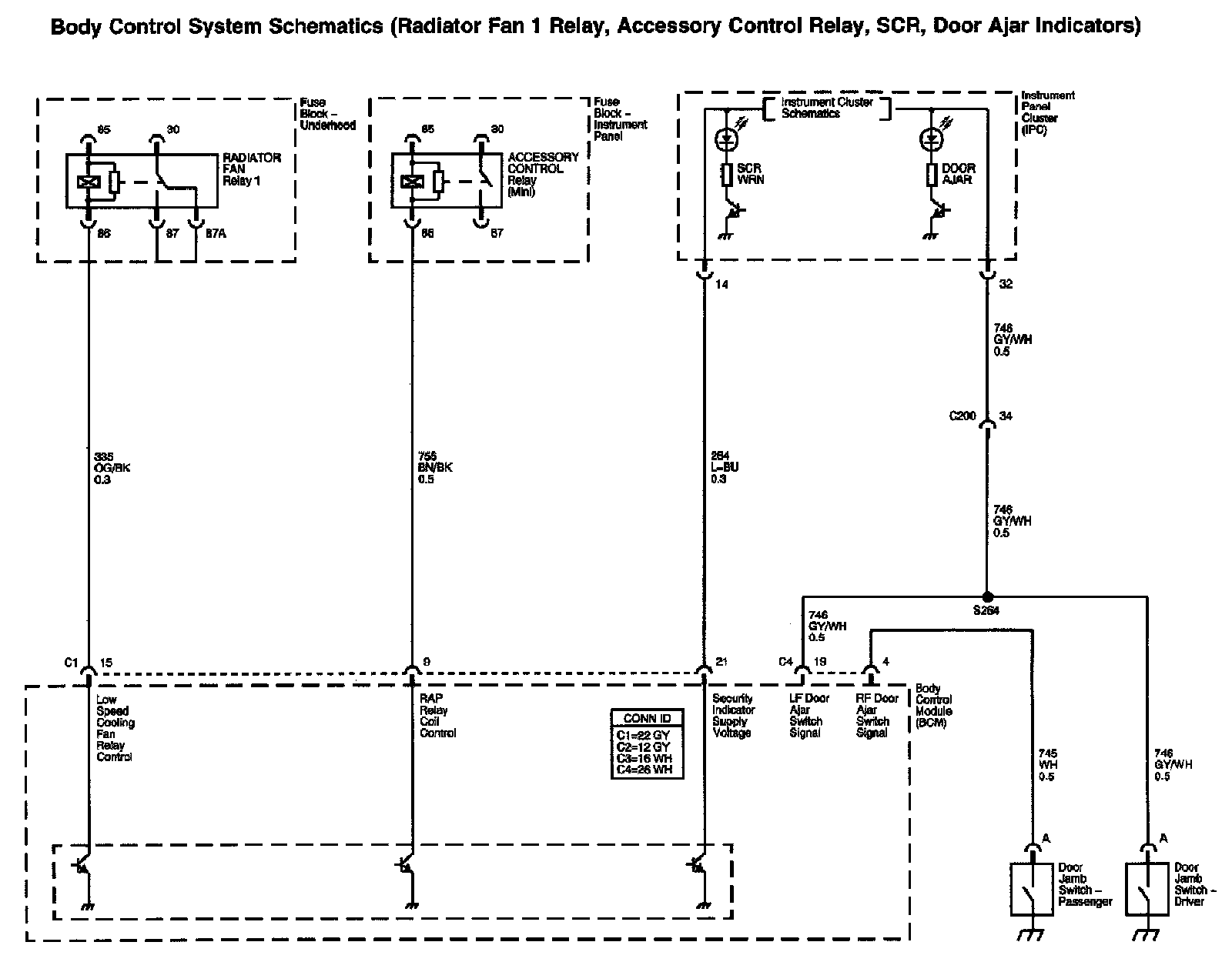

Body Control System Diagram 7:

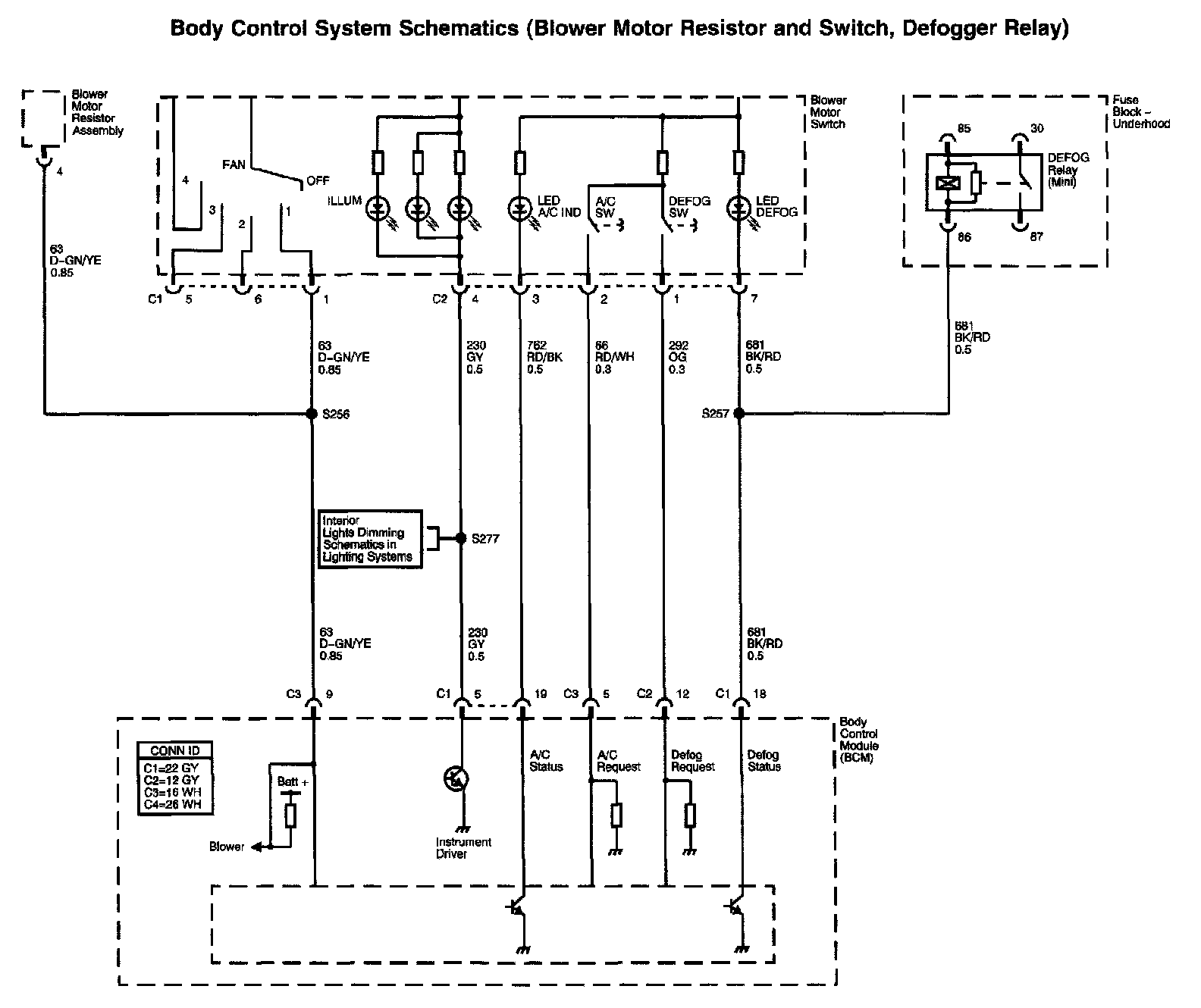

Body Control System Diagram 8:
Body Control System Diagram 9:
Body Control System Diagram 10:
Body Control System Diagram 11:
