Daytime Running Lamp Control Unit: Service and Repair

Daytime Running Lights (DRL) Control Module Replacement

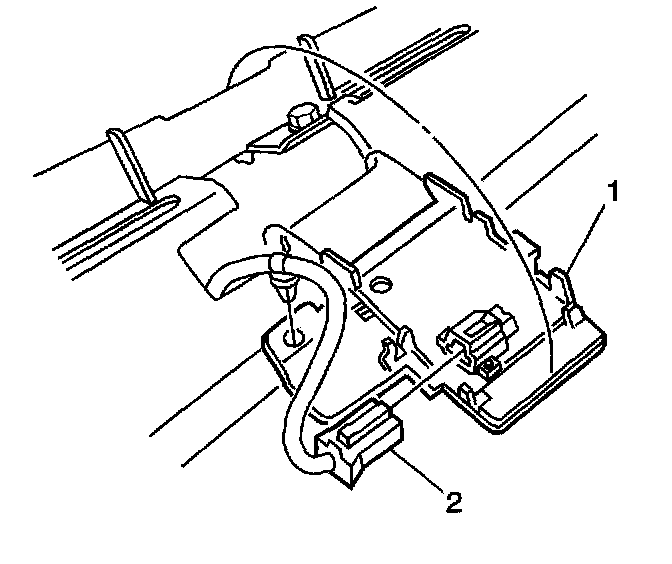

Removal Procedure
1. Remove the windshield defroster grilles.
2. Carefully unclip the daytime running lamps (DRL) control module (1) from the instrument panel (I/P).
3. Disconnect the wiring connector (2) from the DRL control module (1).
4. Remove the DRL control module (1) from the vehicle.

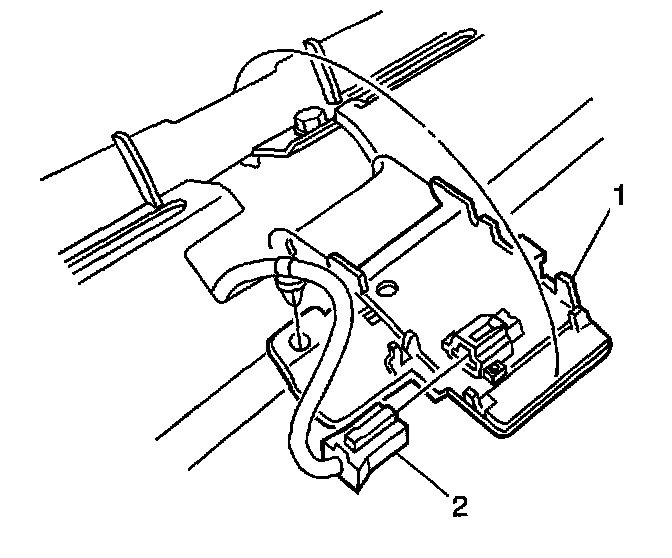

Installation Procedure







1. Connect the wiring connector (2) to the DRL control module (1).
2. Install the DRL control module (1) to the instrument panel.
3. Install the instrument panel defroster grilles.
