Clutch Assembly Replacement

Clutch Assembly Replacement (5.7L)

Removal Procedure





1. Remove the manual transmission.
2. Remove the clutch pressure plate bolts (4).

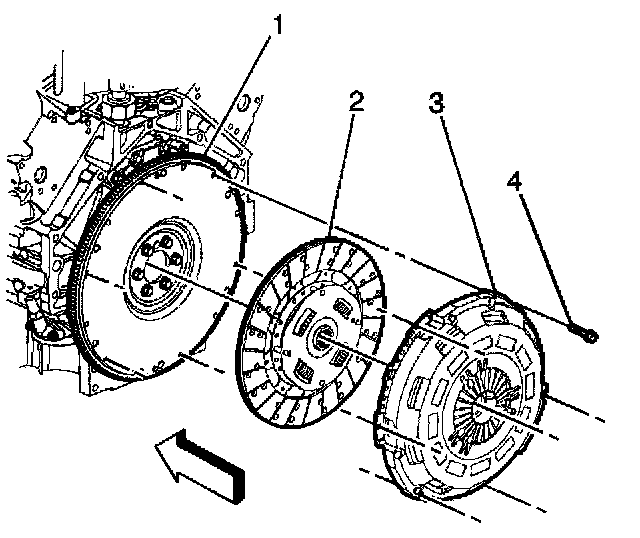

3. Remove the clutch pressure plate (3) and driven disc (2) from the dowel pins on the flywheel (1).

Installation Procedure

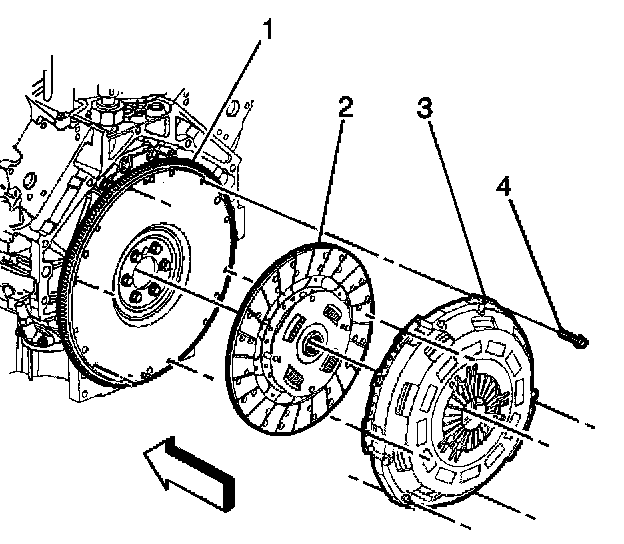

1. Install the clutch pressure plate (3) and driven plate (2) to the dowel pins on the flywheel (1).
2. Install the clutch pressure plate bolts finger tight.
3. Install a suitable clutch alignment arbor in order to align the clutch driven plate to the clutch pilot bearing.






Notice: Refer to Fastener Notice in Service Precautions.

4. Tighten the clutch pressure plate bolts.
^ Tighten the clutch pressure plate bolts in sequence shown to 50 Nm (37 ft. lbs.).
5. Adjust the pressure plate assembly.
6. Install the manual transmission.
