Traction Control Switch: Service and Repair

Traction Control Switch Replacement

Removal Procedure





1. Remove the floor console. Refer to Console Replacement - Front Floor.

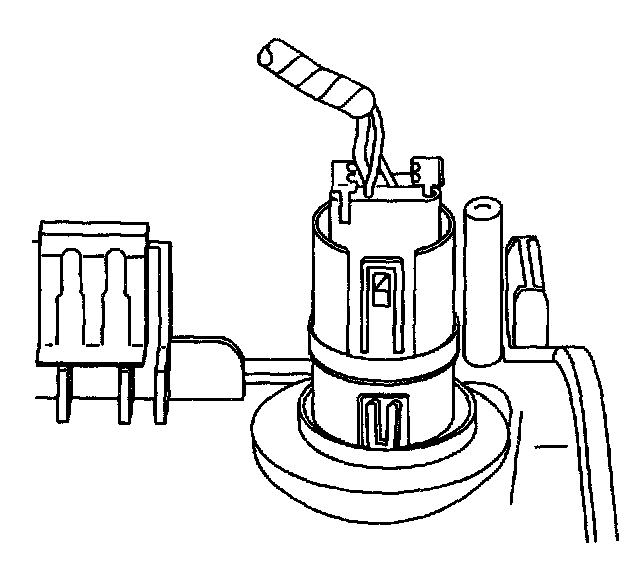

2. Disconnect the electrical connector.

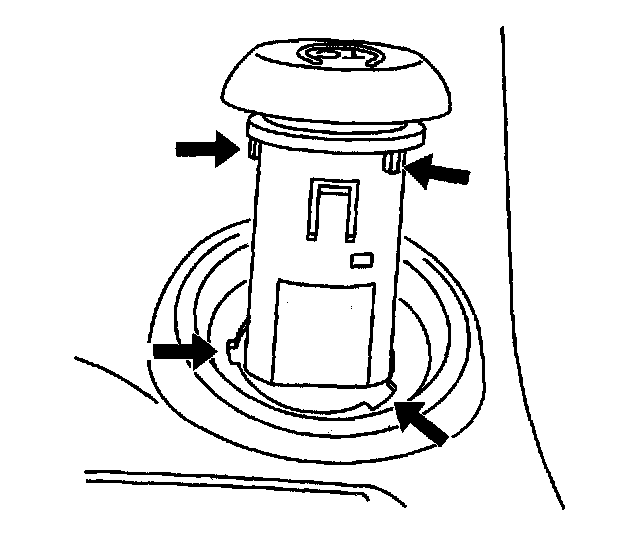

3. Disengage the retainers.

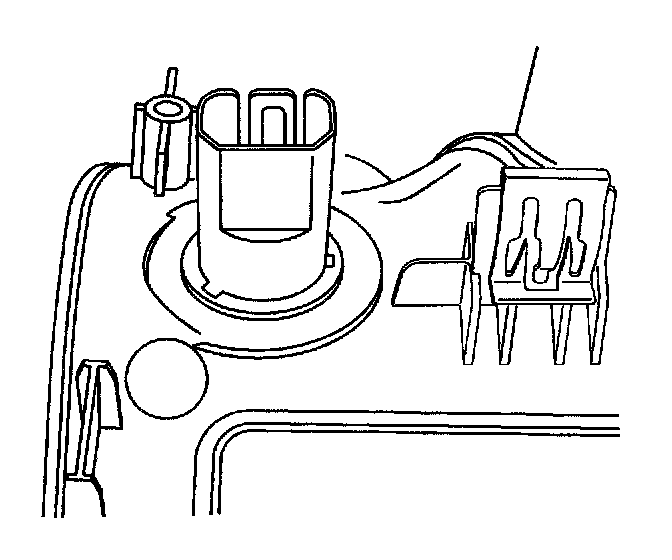

4. Press the switch from the bottom out the top of the floor console. Remove the traction control switch.

Installation Procedure

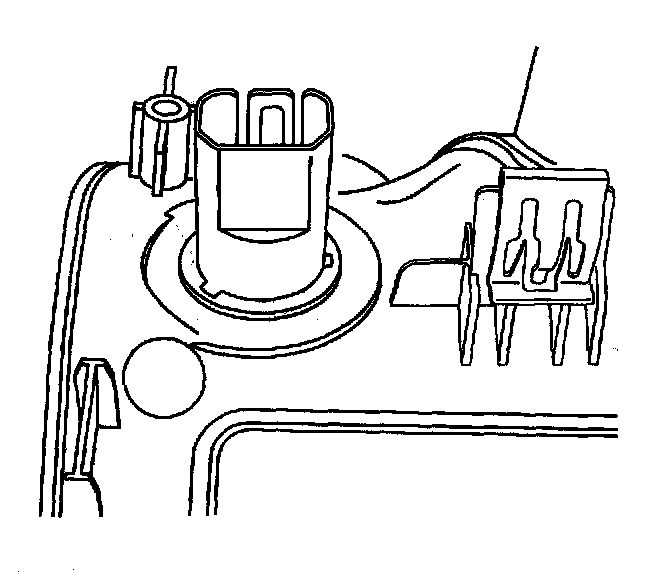

1. Align the tabs on the switch with the slots in the floor console.

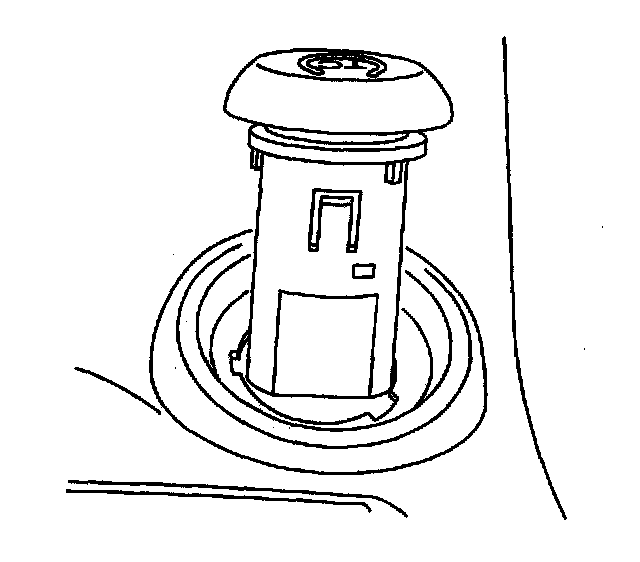

2. Press the traction control switch through the opening in the floor console.

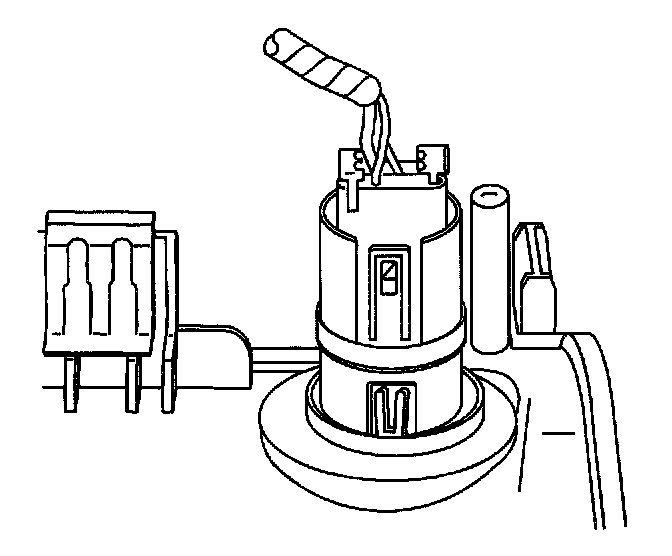

3. Connect the electrical connector.
4. Install the floor console. Refer to Console Replacement - Front Floor.
