Components

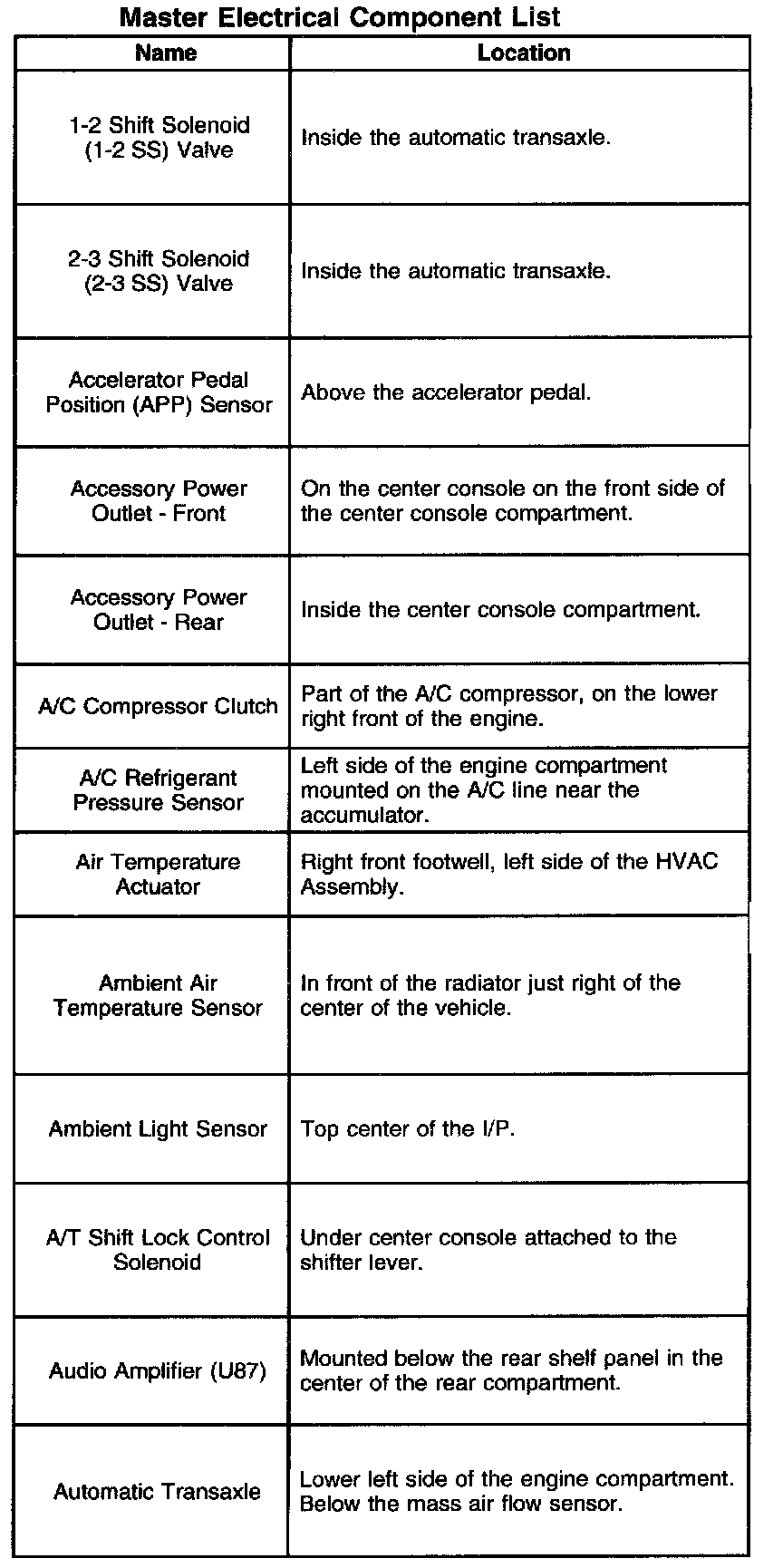

1-2 Shift Solenoid - Automatic Transaxle:

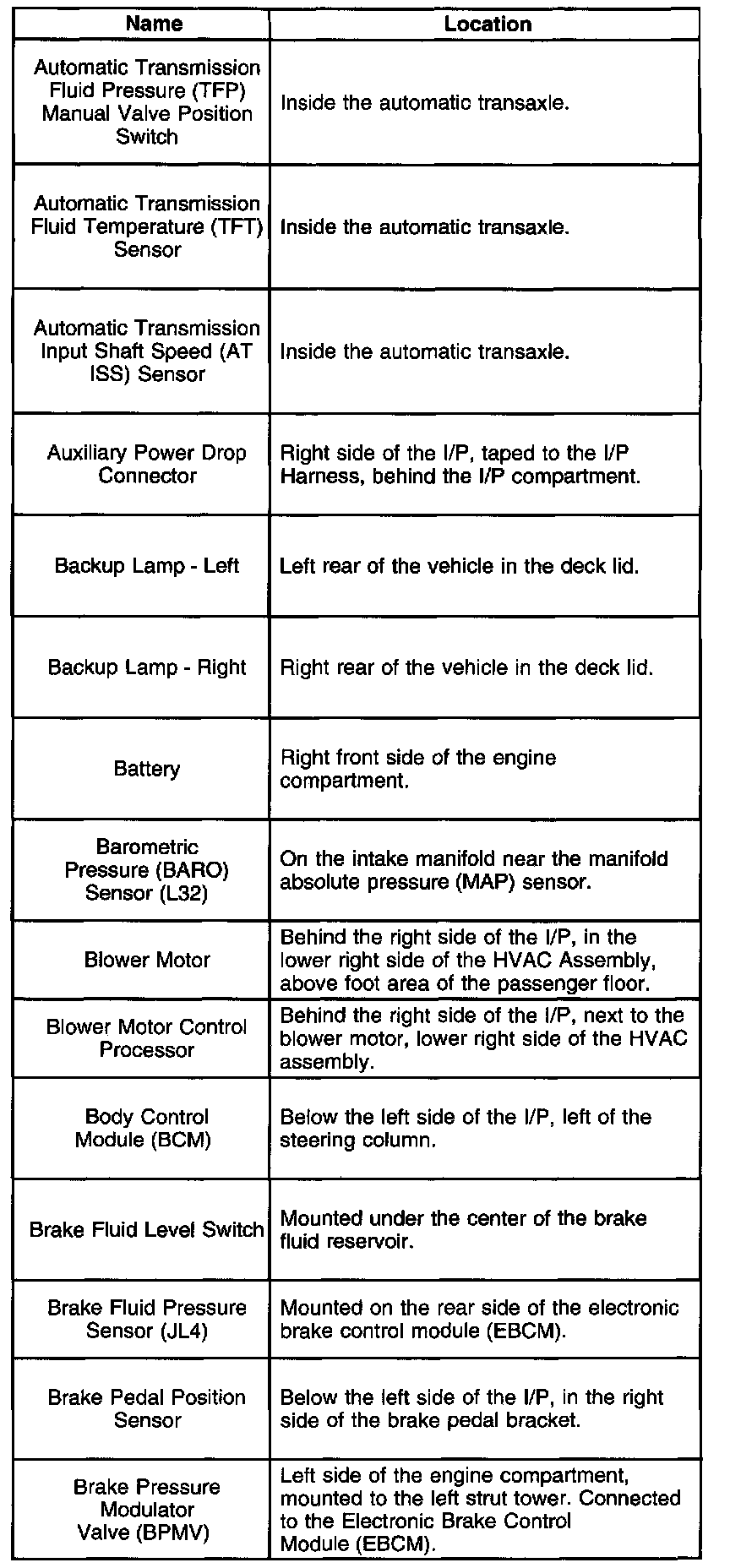

Au - Br:

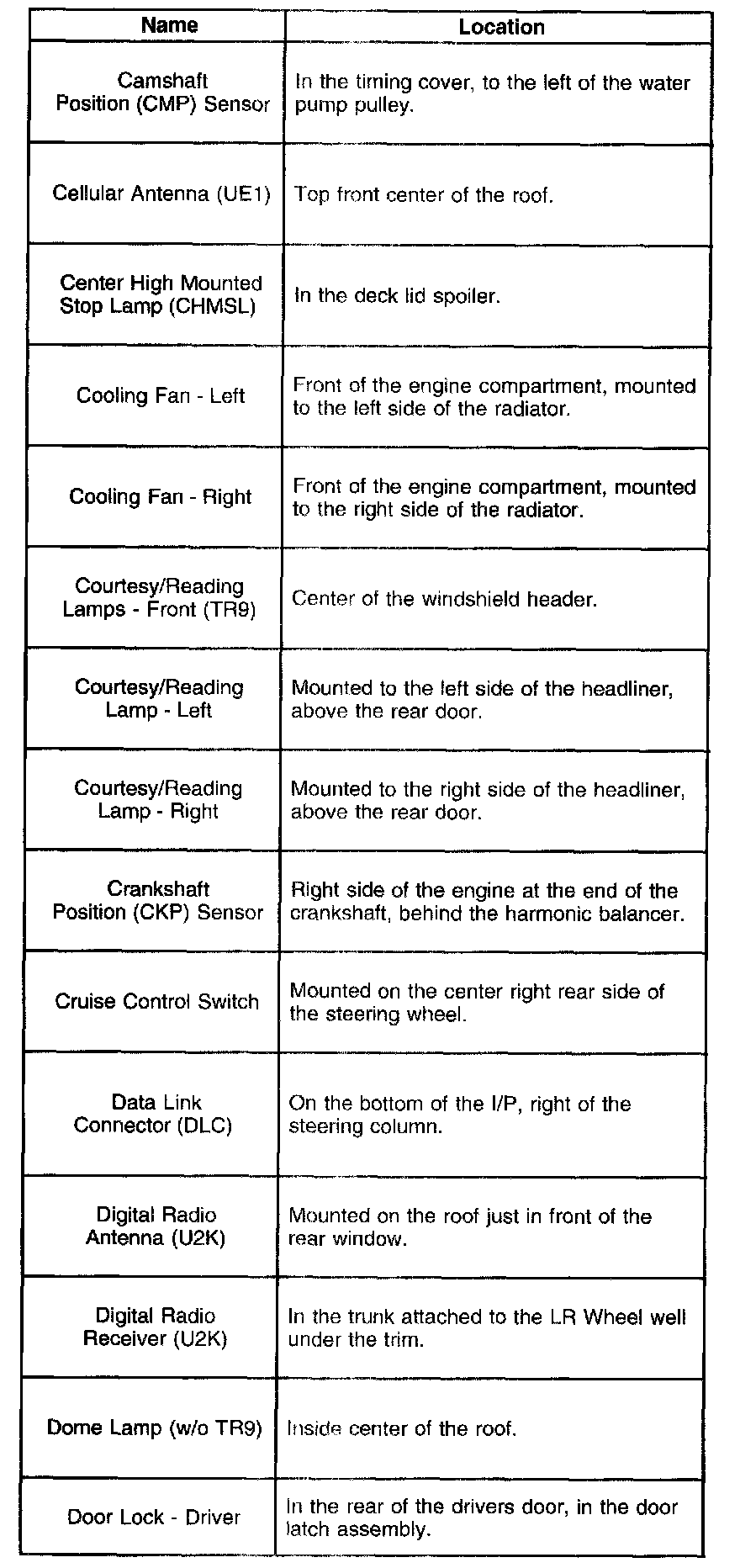

Ca - Do:

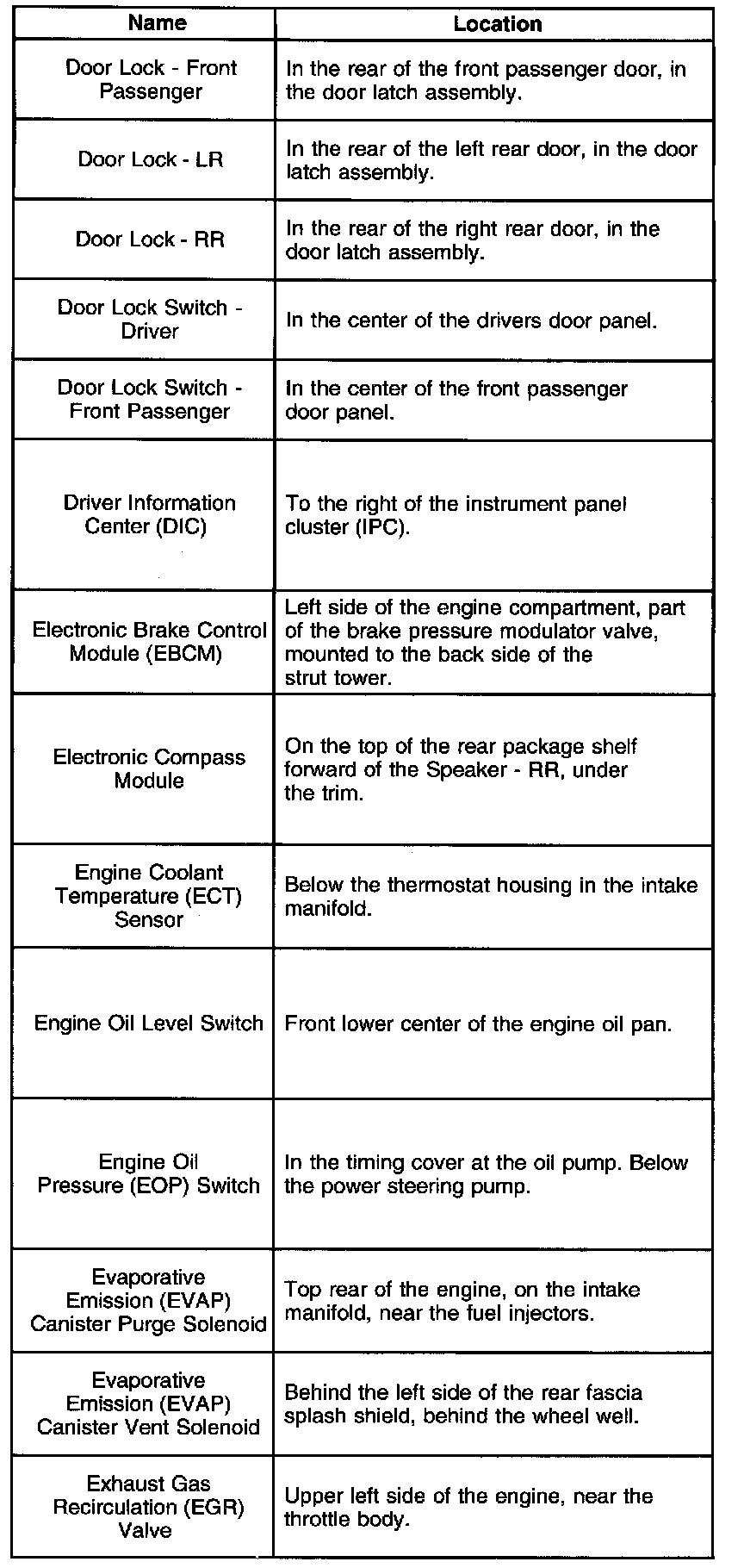

Do - Ex:

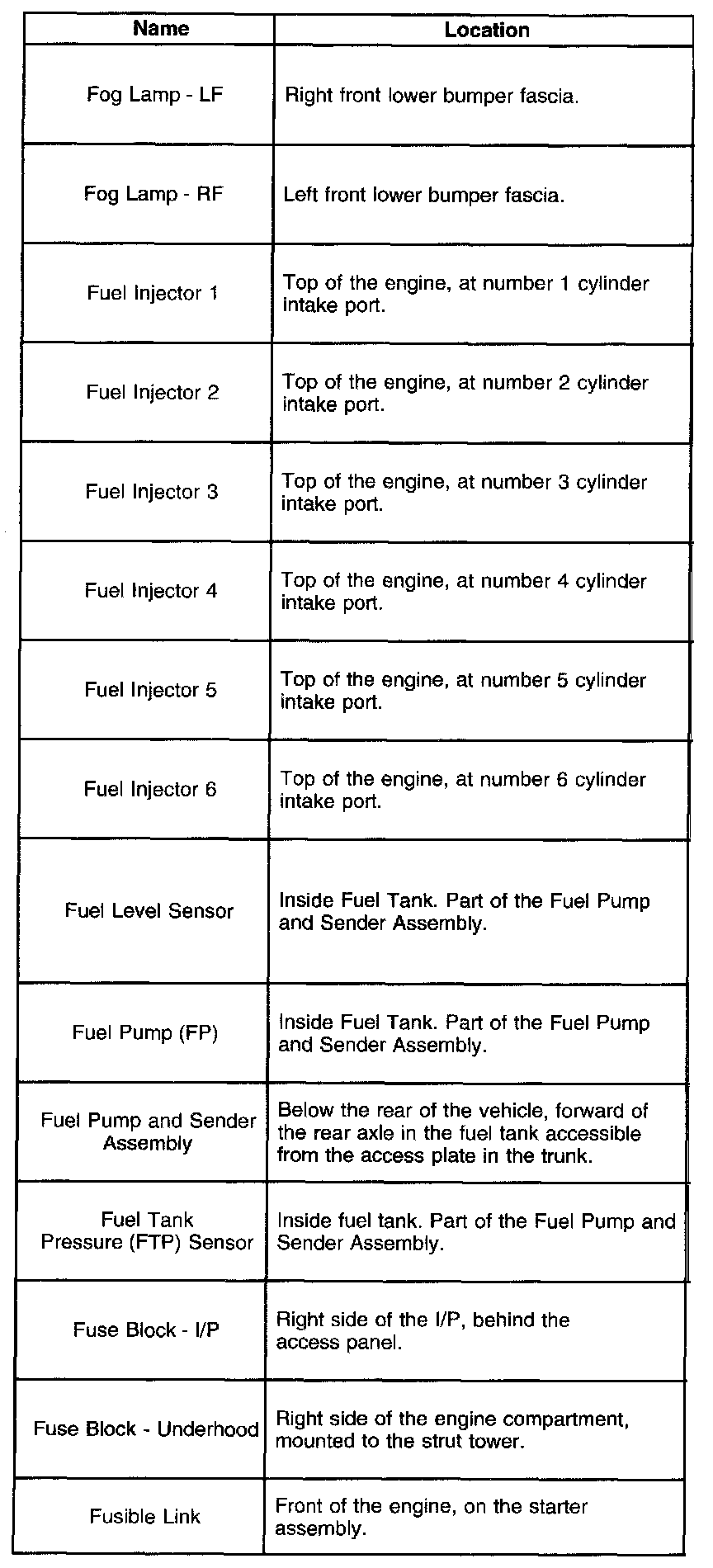

Fo - Fu:

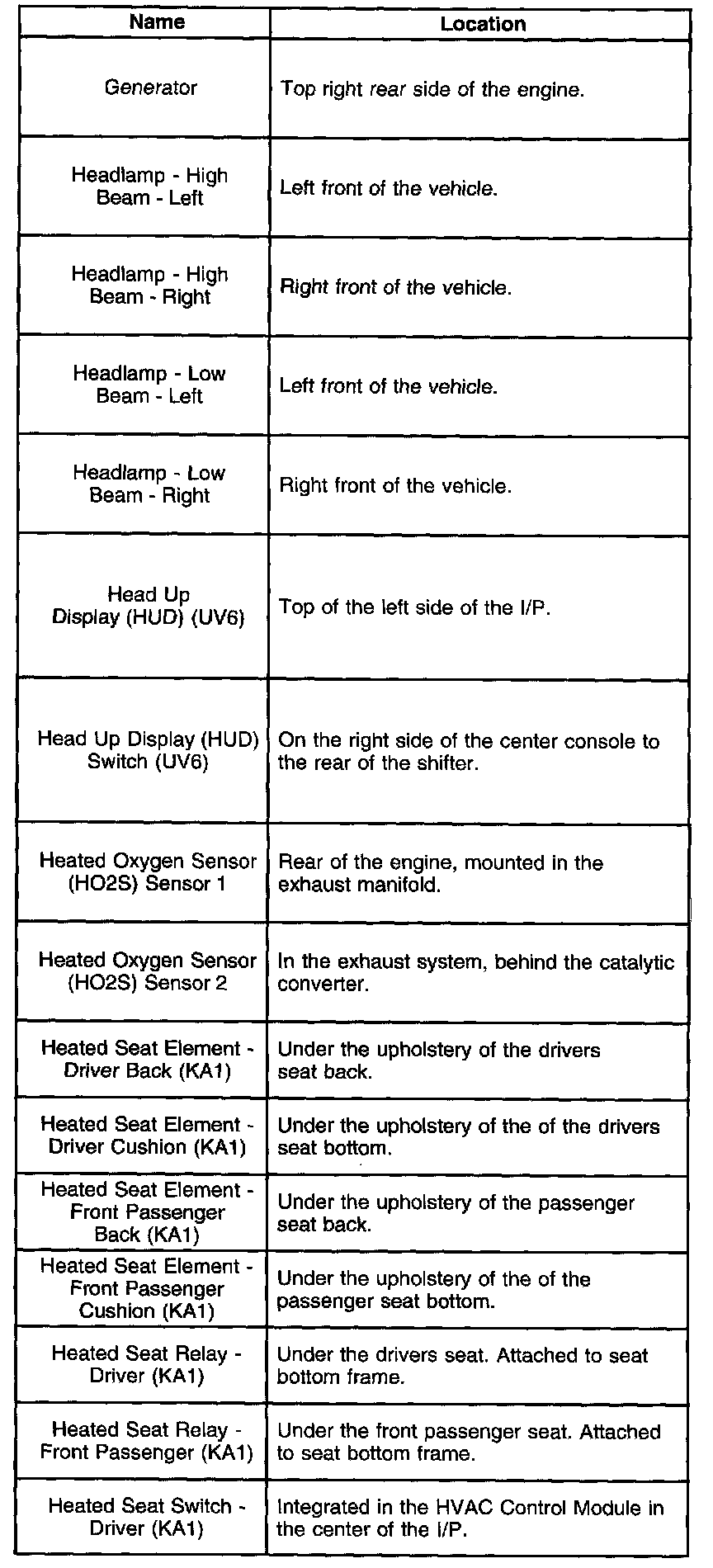

Ge - He:

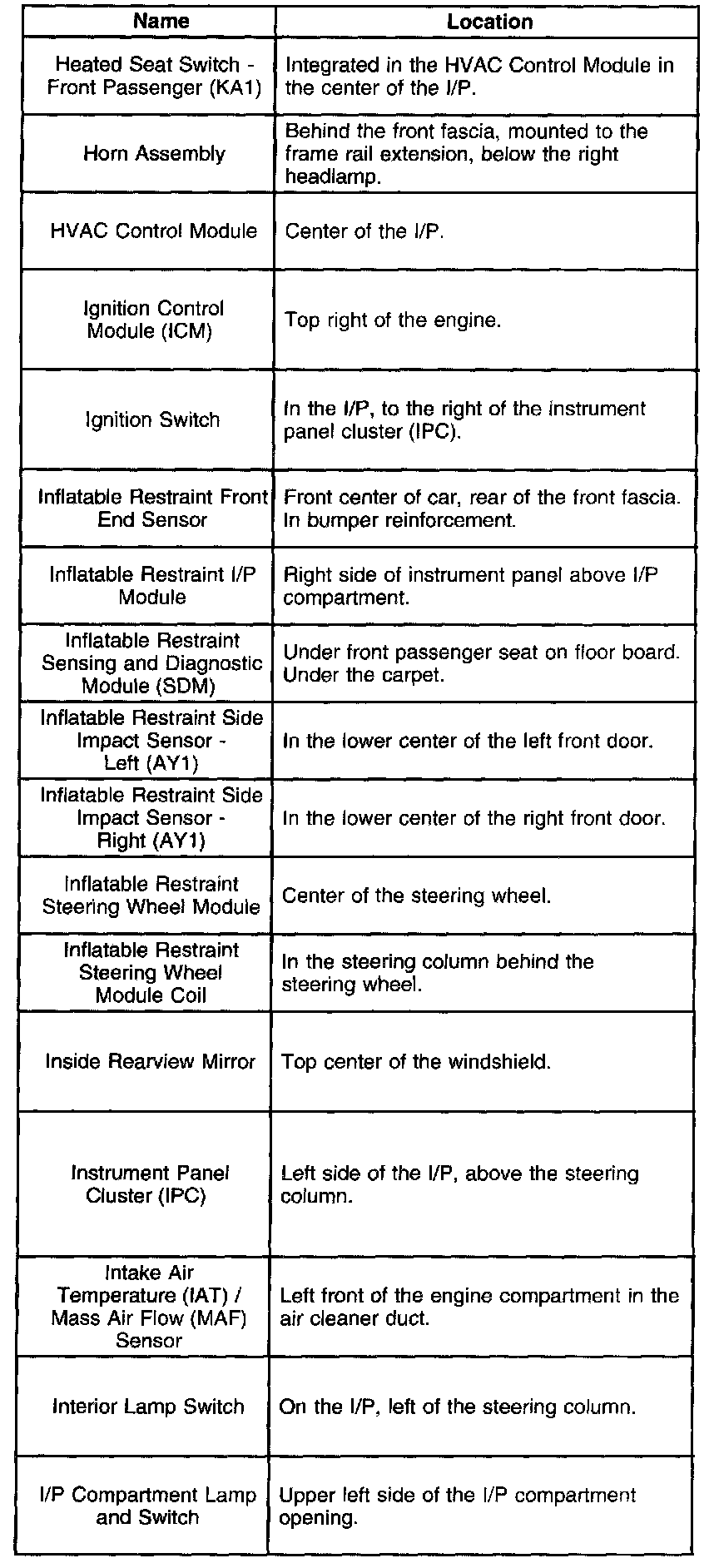

He - I/P:

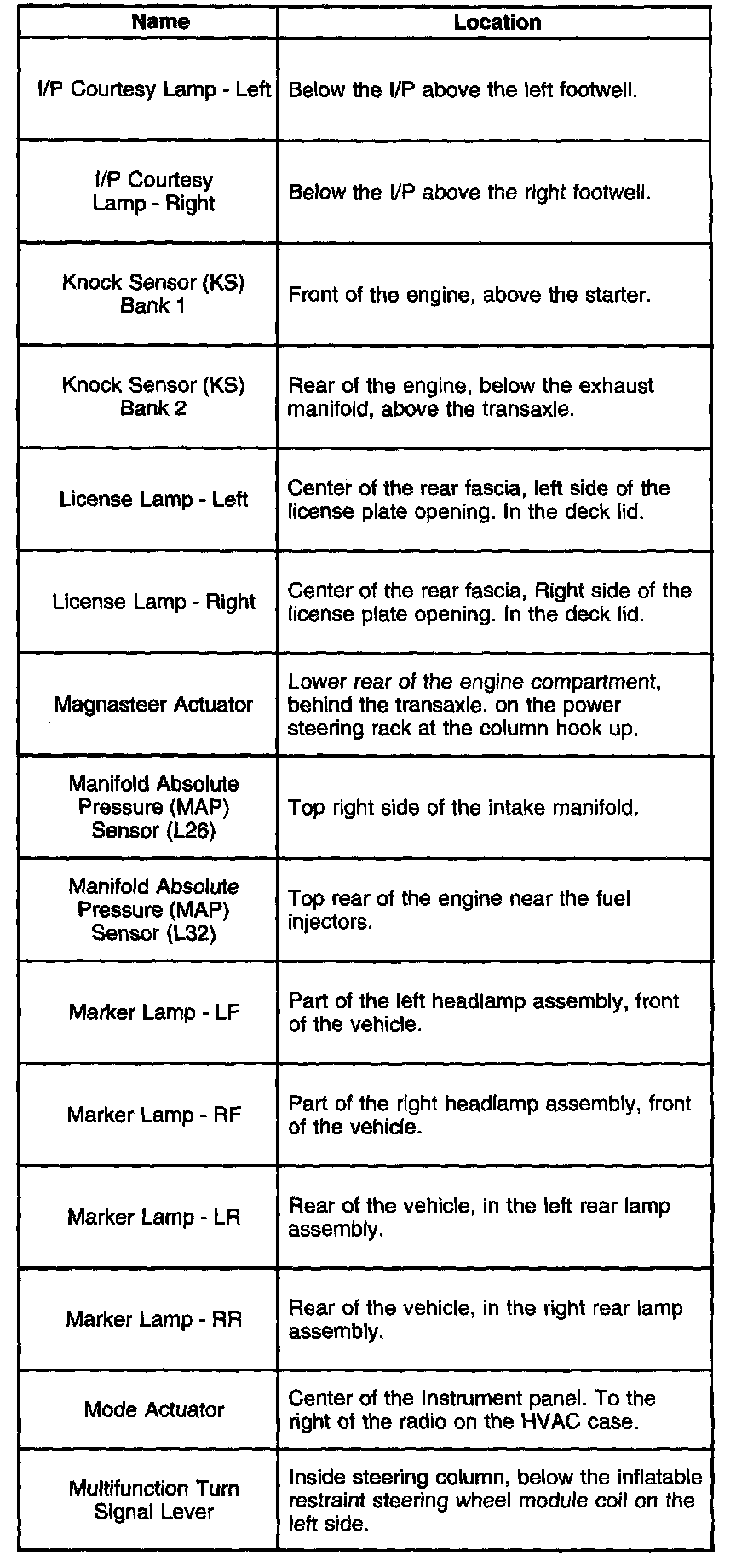

I/P - Mu:

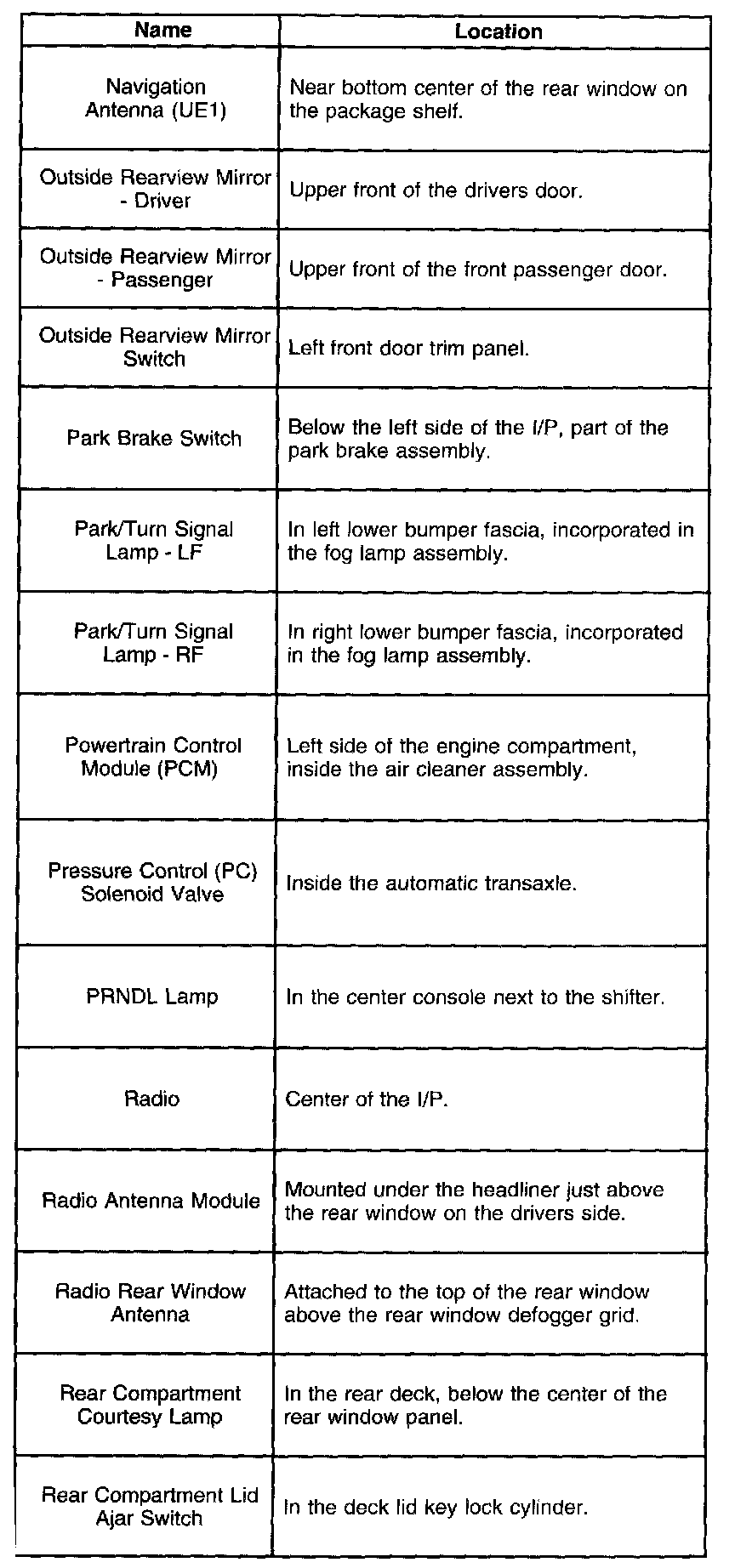

Na - Re:

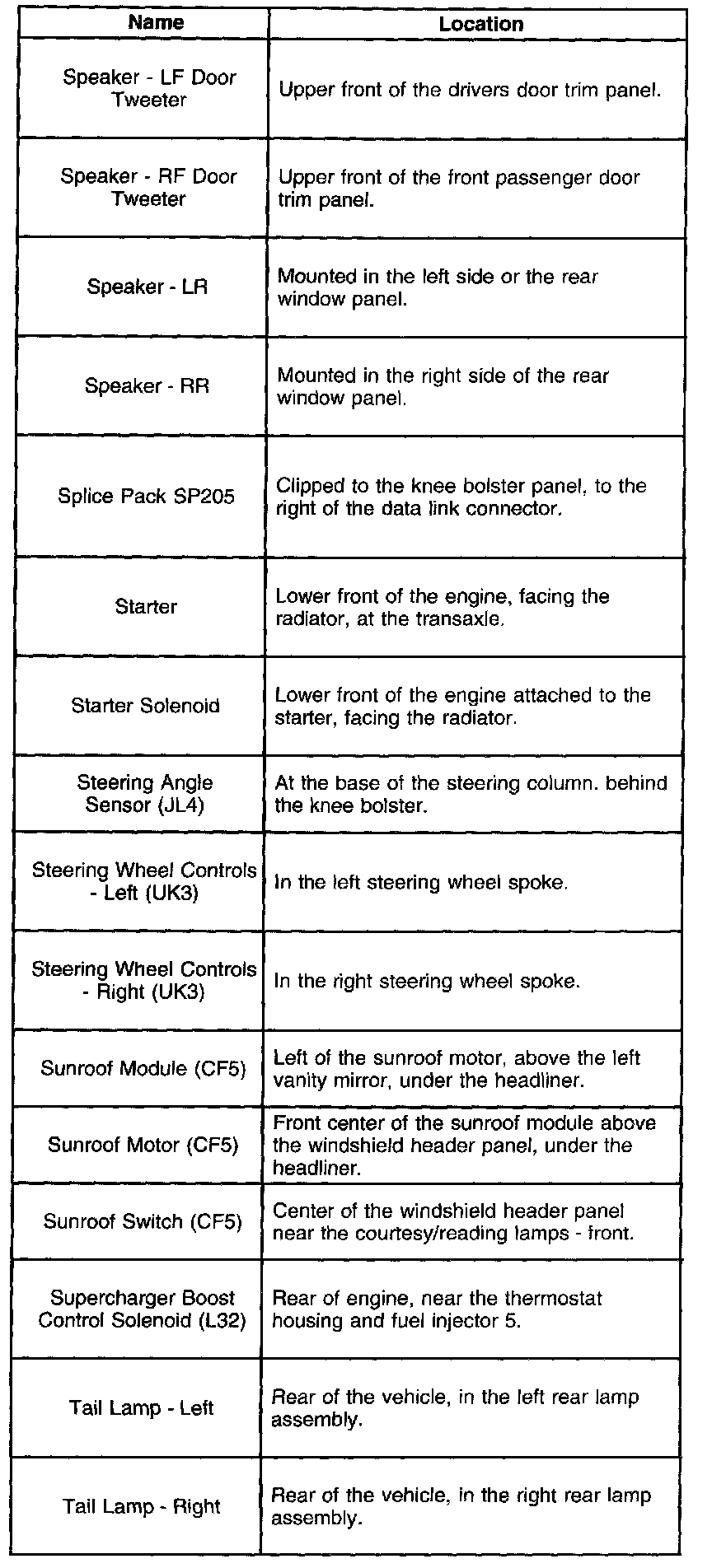

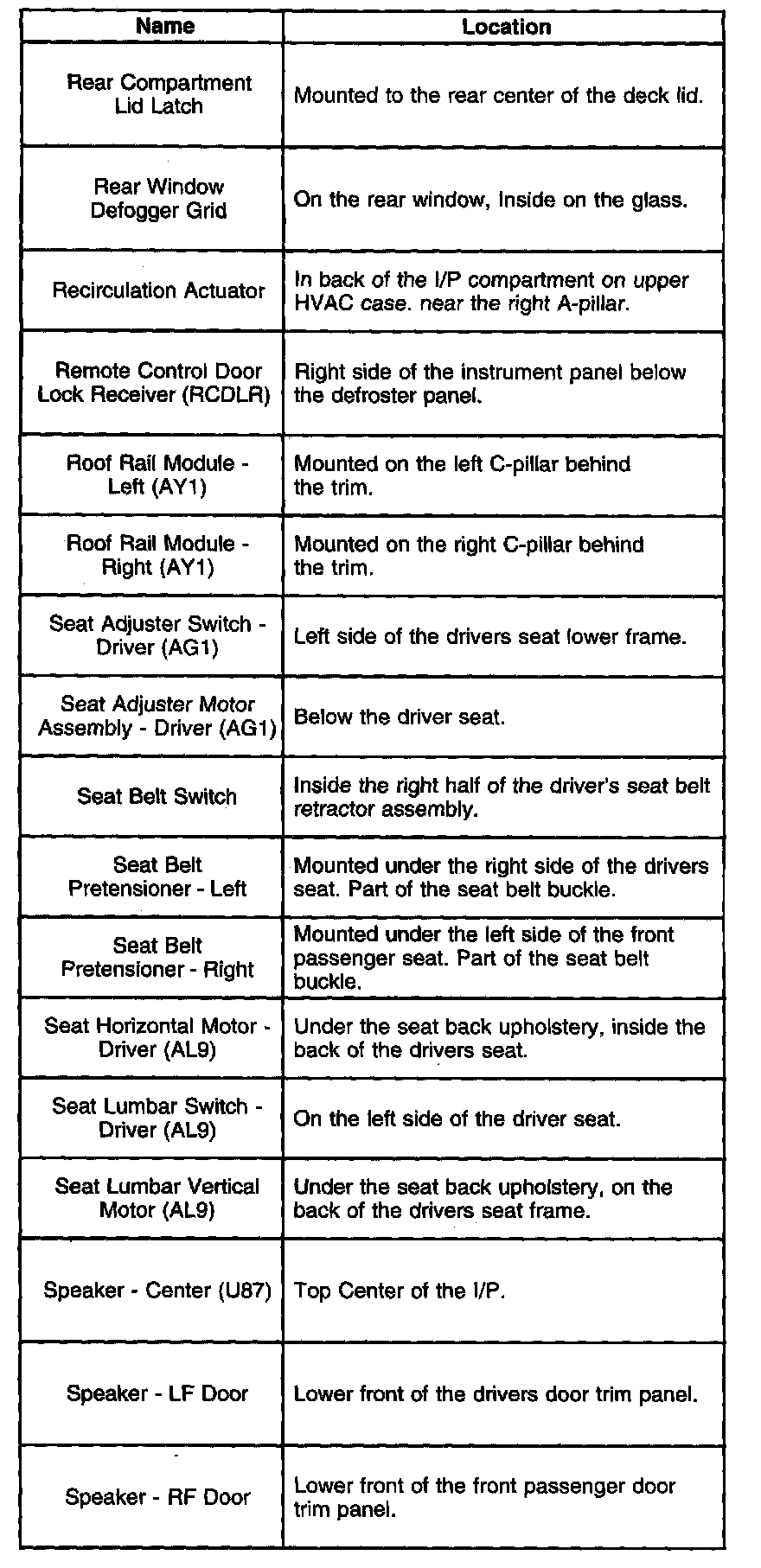

Re - Sp:




Sp - Ta:

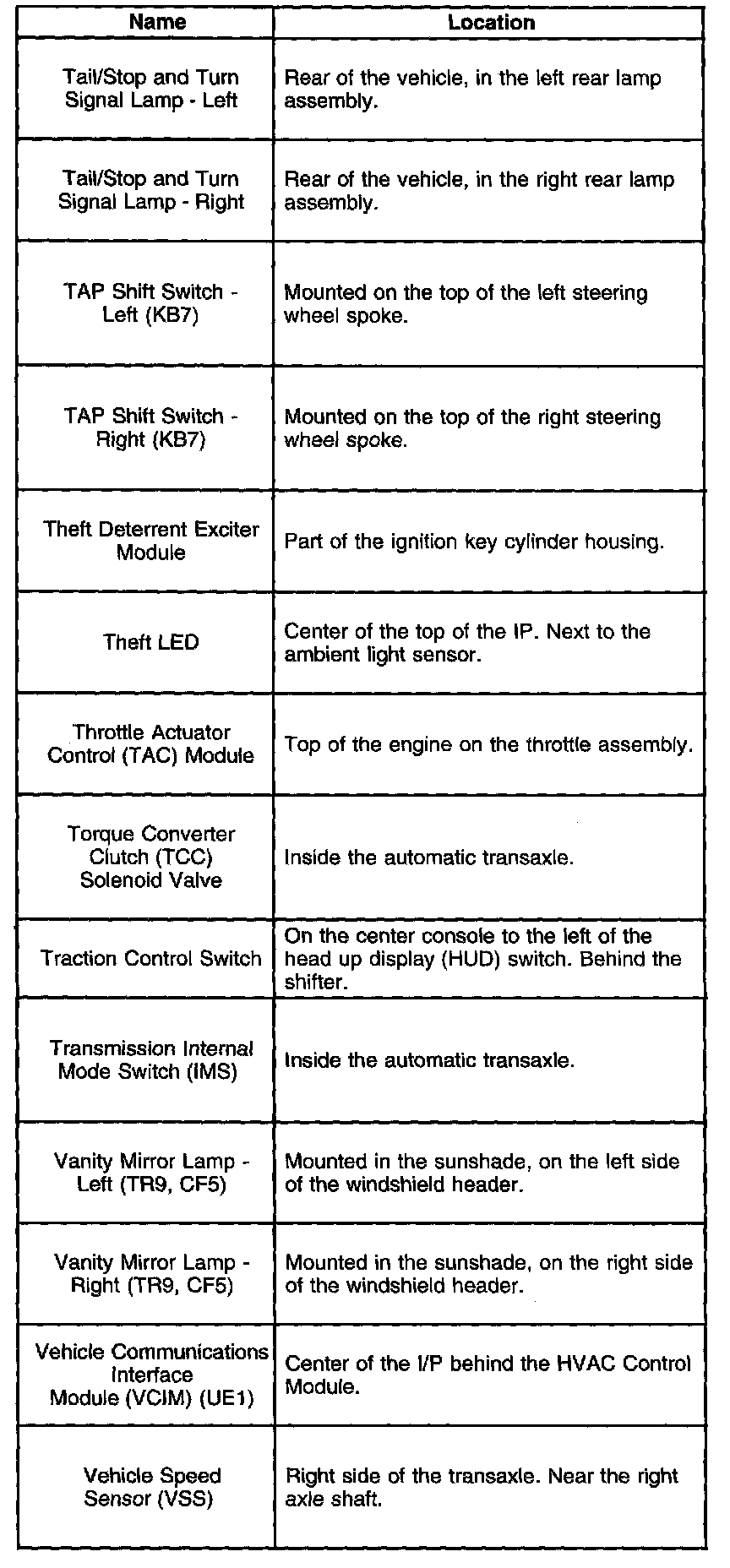

Ta - Ve:

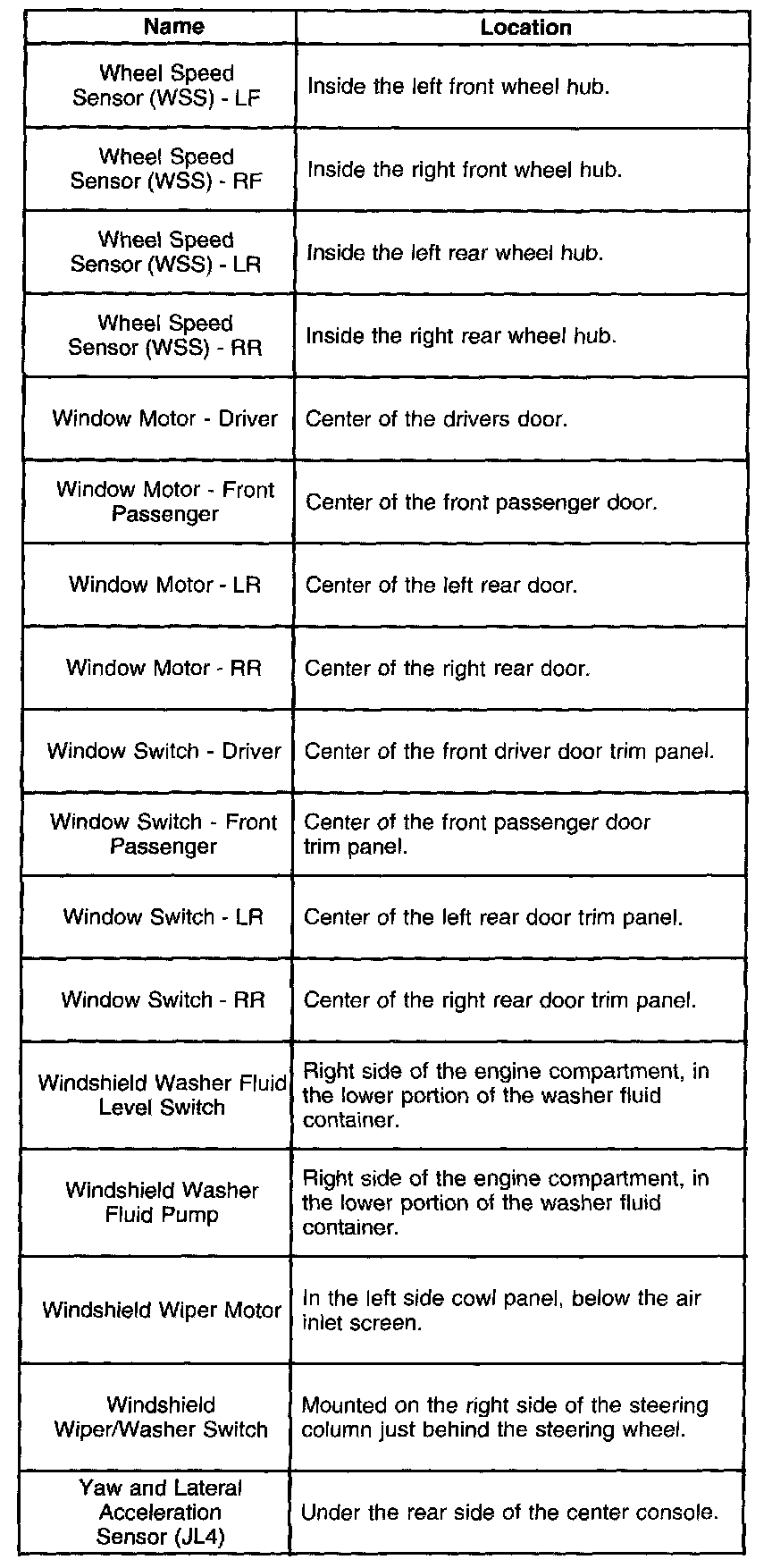

Wh - Ya:
