Cylinder Head Assembly

Torque Specifications:

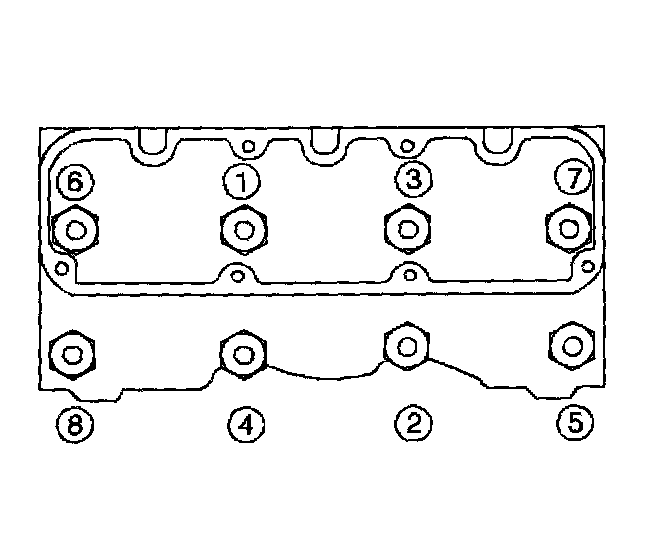

Cylinder Head Bolt (Install the new head bolts each time)
First Pass 50 Nm (37 ft. lbs.)
Final Pass 120 degrees

Cylinder Head Deck Height 216.459 mm (8.522 in.)
Cylinder Head Deck Surface Flatness - Overall 0.0762 mm (0.003 in.)

Torque Specifications:

Lower Intake Manifold Bolt 15 Nm (11 ft. lbs.)

Torque Specifications:

Upper Intake Manifold Bolt 10 Nm (89 in. lbs.)
Exhaust Manifold Bolt/Nut 30 Nm (22 ft. lbs.)
Camshaft Sprocket Bolt
First Pass 100 Nm (74 ft. lbs.)
Final Pass 90 degrees)
Camshaft Thrust Plate Bolt 15 Nm (11 ft. lbs.)
