System Specifications

Timing Chain Dampener Bolt 22 Nm (16 ft. lbs.)
Crankshaft Balancer Bolt
First Pass 150 Nm (111 ft. lbs.)
Final Pass 76 degree

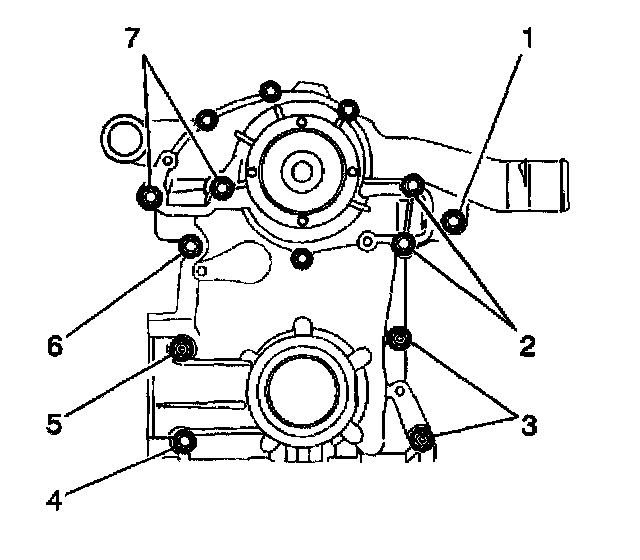

Timing Cover Bolts 20 Nm (15 ft. lbs.).
Final Pass 40 degrees.
