Front Door Switch Replacement



Front Door Switch Replacement

Removal Procedure

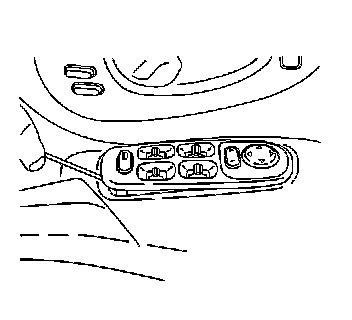

1. Insert a flat bladed tool under the rear edge of the switch trim plate.
2. Gently pry upwards to release the rear edge of the switch trim plate from the door trim panel.
3. Slide the switchplate rearwards to release the front retainer tabs.
4. Disconnect the electrical connectors.




5. Remove the switch pack (2) by releasing the retaining tabs on the switch trim plate (1).

Installation Procedure




1. Snap the switch pack into the switch trim plate.
2. Install the electrical connectors.
3. Install the front end of the switch plate into the door trim panel.
4. Press down on the rear of the switch plate to engage the retainer clips.
