Steering/Suspension - Trim Height/Alignment Spec. Change

Bulletin No.: 05-03-07-004

Date: April 13, 2005

SERVICE MANUAL UPDATE

Subject:
Revised Trim Height Specifications and Wheel Alignment Specifications

Models:
2005 Pontiac G6

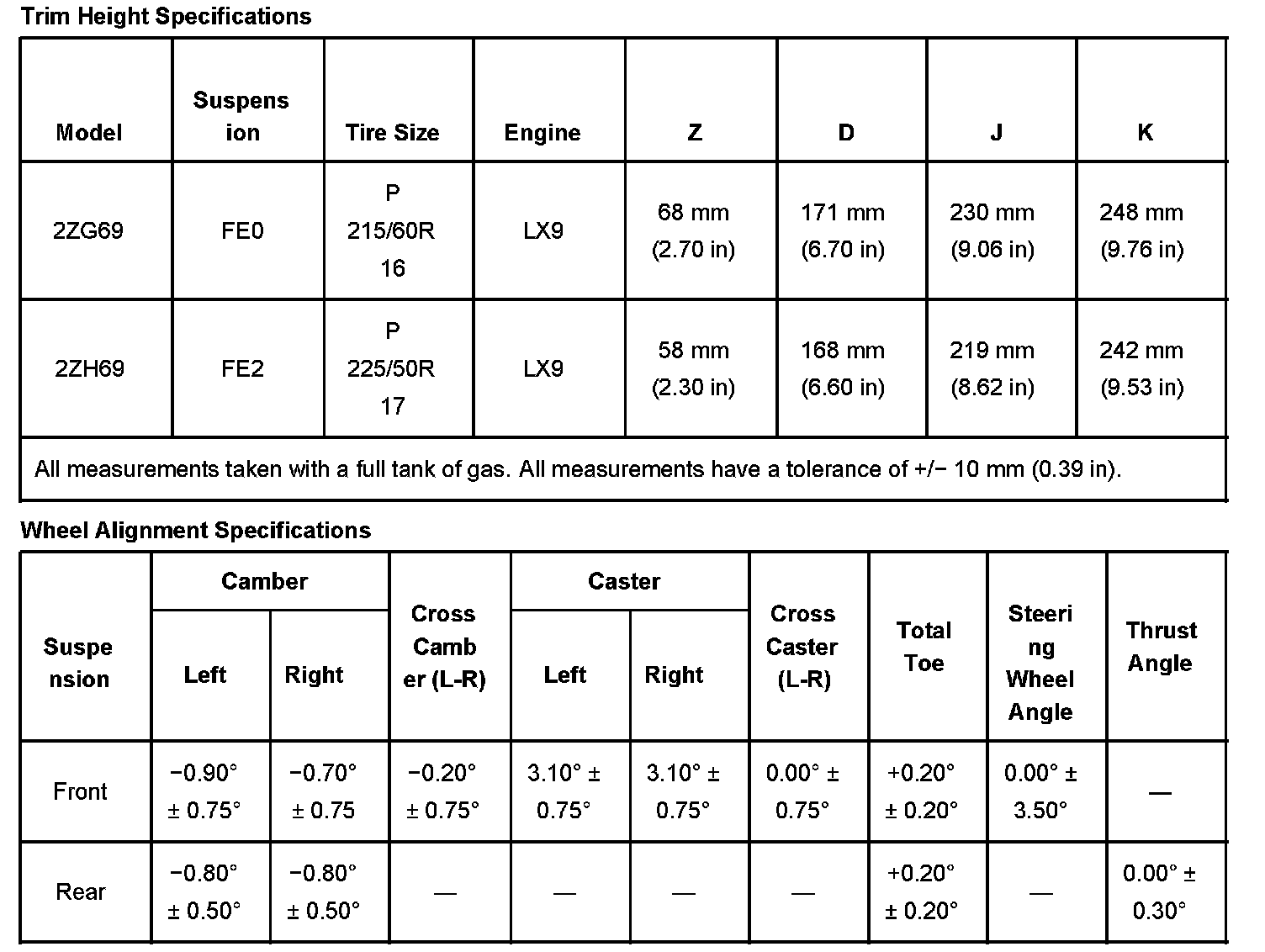

This bulletin is being issued to revise the Trim Height Specifications and the Wheel Alignment Specifications in the Wheel Alignment sub-section of the Service Manual. Please replace the current information in the Service Manual with the information shown.

The information has been updated within SI. If you are using a paper version of this Service Manual, please make a reference to this bulletin on the affected page.
