Console Replacement - Overhead
Console Replacement - OverheadRemoval Procedure 1.
Remove the
headliner.
2.
Cut the retainer clips off of the rear posts.
3.

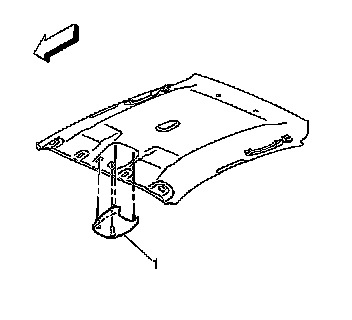

Remove the overhead console (1) from the
headliner.
Installation Procedure 1.
Position the overhead console (1) into the
headliner.
2.
Push two new retainer clips onto the
console rear attaching posts.
3.
Install the
headliner.
