Antilock Brakes / Traction Control Systems: Locations

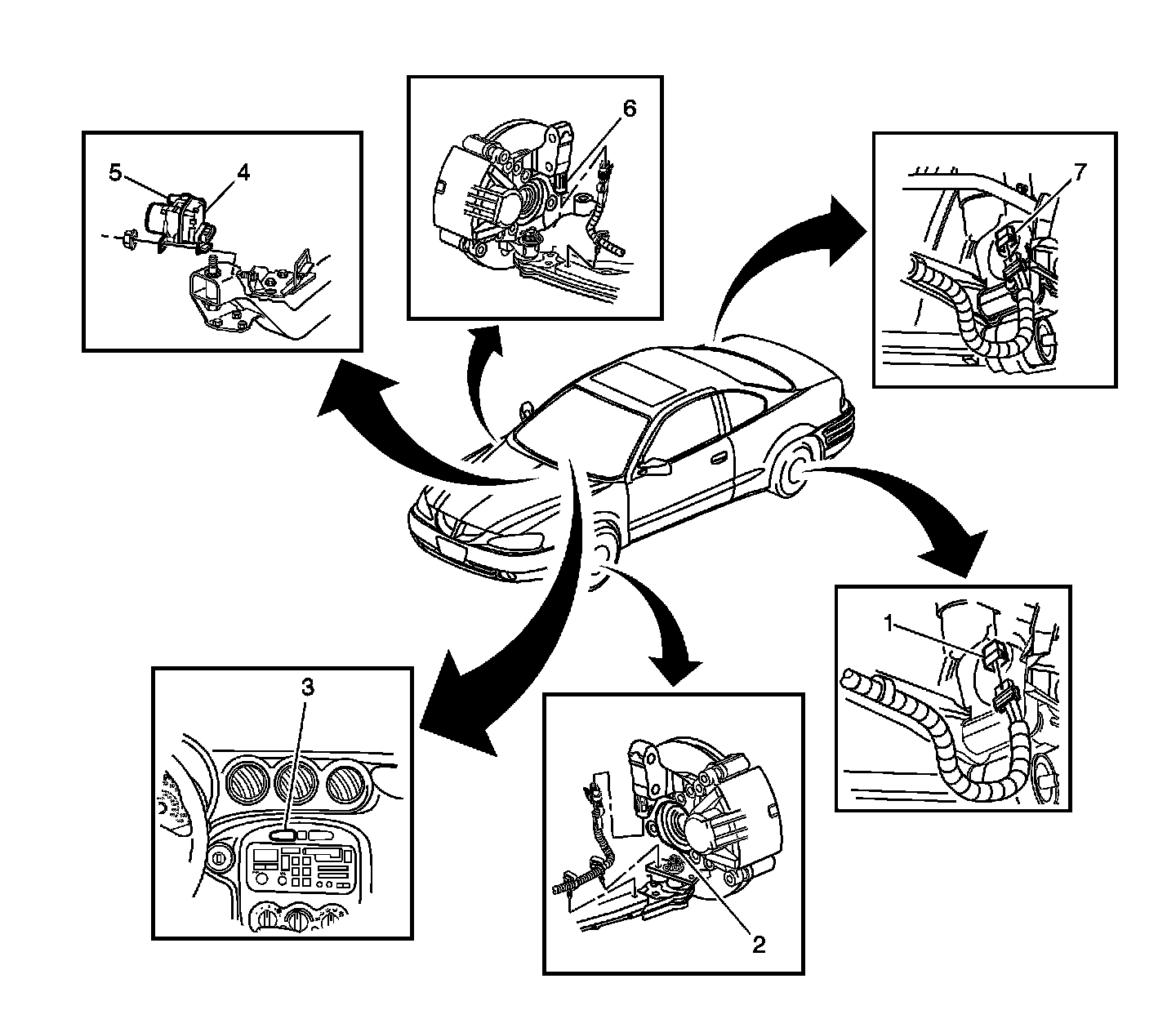

ABS Component Views ABS Component Views:
1 - Wheel Speed Sensor (WSS) - LR
2 - Wheel Speed Sensor (WSS) - LF
3 - Traction Control Switch
4 - Electronic Brake Control Module (EBCM)
5 - Brake Pressure Modulator Valve (BPMV)
6 - Wheel Speed Sensor (WSS) - RF
7 - Wheel Speed Sensor (WSS) - RR
