Steering Column

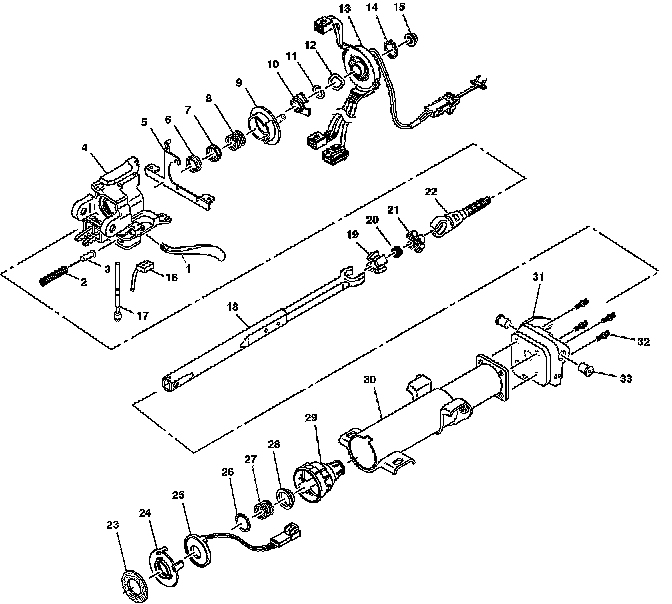

Steering Column Disassembled View
Tilt Steering Column





1 - Tilt Lever
2 - Tilt Spring
3 - Spring Guide
4 - Bearing and Housing Assembly
5 - Switch Adapter Plate
6 - Inner Race
7 - Upper Bearing Inner Race Seat
8 - Upper Bearing Spring
9 - Turn Signal Cancel Cam Assembly
10 - Cam Orientation Plate
11 - Bearing Retainer
12 - Wave Washer
13 - SIR Coil
14 - Retaining Ring
15 - Flanged Prevailing Torque Nut
16 - Spacer
17 - Anti Rotation Pin
18 - Lower Shaft Assembly
19 - Centering Sphere
20 - Joint Preload Spring
21 - Centering Sphere
22 - Race and Upper Shaft Assembly
23 - Steering Shaft Seal
24 - Sensor Retainer
25 - Steering Wheel Speed Sensor Assembly
26 - Lower Spring Retainer
27 - Lower Bearing Spring
28 - Lower Bearing Seat
29 - Adapter and Bearing Assembly
30 - Steering Column Jacket Assembly
31 - Steering Column Support Assembly
32 - TORX(R) Head Screws
33 - Pivot Pins
