Trunk Lamp: Service and Repair

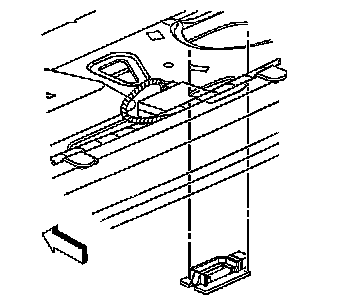

REAR COMPARTMENT LAMP REPLACEMENTREMOVAL PROCEDURE 1.
Open the rear compartment.
2.
Disengage the rear compartment lamp retainers and lower the lamp.
3.
Remove the bulb from the lamp socket.
INSTALLATION PROCEDURE 1.
Install the bulb to the lamp socket.
2.
Align the rear compartment lamp to the shelf panel opening. Press the lamp into place to secure the retainers.
3.
Close the rear compartment.
