Auxiliary Power Outlet: Service and Repair



ACCESSORY POWER RECEPTACLE REPLACEMENT - 12 VOLT

REMOVAL PROCEDURE

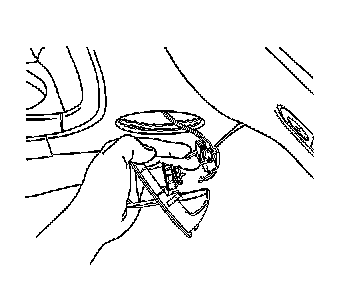

1. Use a small flat-bladed tool on the retainer in order to release the power accessory receptacle housing from the lower instrument panel (I/P).




2. Remove the power accessory receptacle housing from the lower I/P.

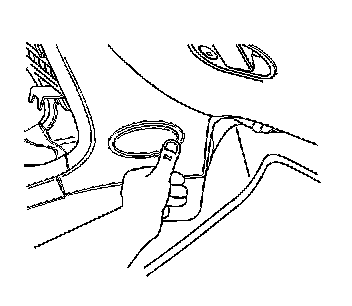

3. Release the electrical connector retainer tabs from the power accessory receptacle.




4. Disconnect the electrical connector from the power accessory receptacle.

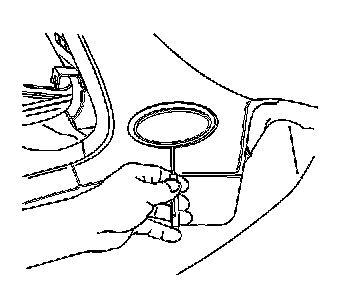

5. Remove the retainer and the housing from the bezel, if necessary.

INSTALLATION PROCEDURE




1. Install the retainer and the housing to the bezel, if necessary.

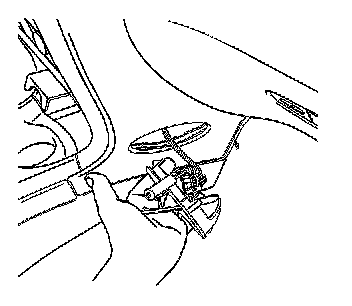

2. Connect the electrical connector to the power accessory receptacle.




3. Position the power accessory receptacle housing to the lower I/P.

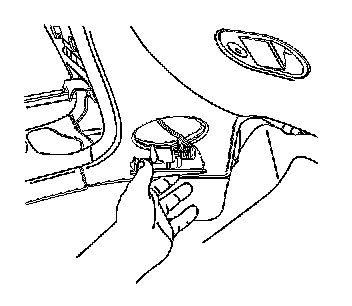

4. Install the power accessory receptacle housing into the lower I/P. Press the housing into place until fully seated.
5. Inspect the power accessory receptacle for proper operation.
