Engine Support Fixture

Engine Support Fixture

^ Tools Required
- J 28467-B Universal Engine Support Fixture
- J 28467-501 Engine Support Fixture Adapters

Installation Procedure

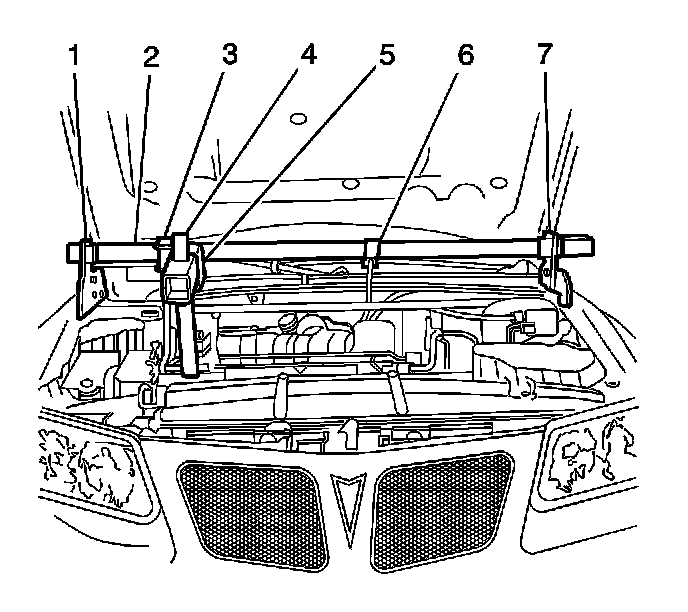

1. Install the J 28467-501 (1, 7) onto fender rails near the strut towers.
2. Install the cross car tube J 28467-3 (2) to the J 28467-501 (1, 7).
3. Install the radiator shelf tube J 28467-2A on top of the cross car tube J 28467-3 (2) over the J 42504.
4. Install the round tube of the front support assembly J 28467-4A (4) through the large hole in the radiator shelf tube J 28467-2A. The hole used in the radiator shelf tube J 28467-2A (5) depends on the vehicle application.
5. Place the rubber padded foot of the front support assembly J 28467-4A on the upper tie bar.
6. Install the 7/16 inch x 2.0 inch quick release pin J 28467-9 through the hole in the front support assembly J 28467-4A in order to level the radiator shelf tube J 28467-2A.
7. Install the lift hook J 28467-7A through the lift hook bracket J 28467-6A (5).
8. Install the assembled lift hook bracket J 28467-6A (6) over the strut tower tube J 28467-3 (2).
