Wiper Motor Module Replacement (Old)



WIPER MOTOR MODULE REPLACEMENT (OLD)

REMOVAL PROCEDURE
1. Remove the wiper arms.
2. Remove the air inlet grille.

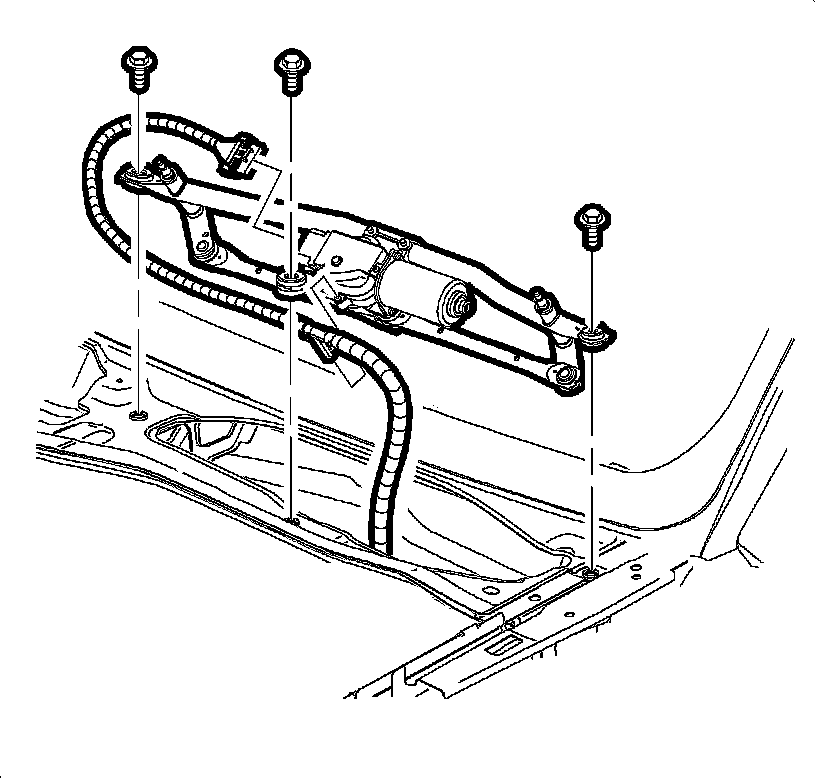

3. Remove the wiper module bolts.
4. Lift the wiper motor module away from the cowl.
5. Disconnect the wire harness rosebud clip from the wiper module frame.
6. Disconnect the wiper module electrical connector at the motor.

INSTALLATION PROCEDURE




1. Connect the wiper module electrical connector to the motor.
2. Connect the wire harness rosebud clip to the wiper module frame.
3. Install the wiper module assembly into the plenum.
4. Install the fasteners attaching the wiper module assembly to the plenum.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the fasteners to 12 N.m (9 lb ft).
5. Turn the key to RUN position and cycle wiper system to ensure motor is in the park position.
6. Install the air inlet screens.
7. Install the wiper arms.
