Automatic Transmission/Transaxle

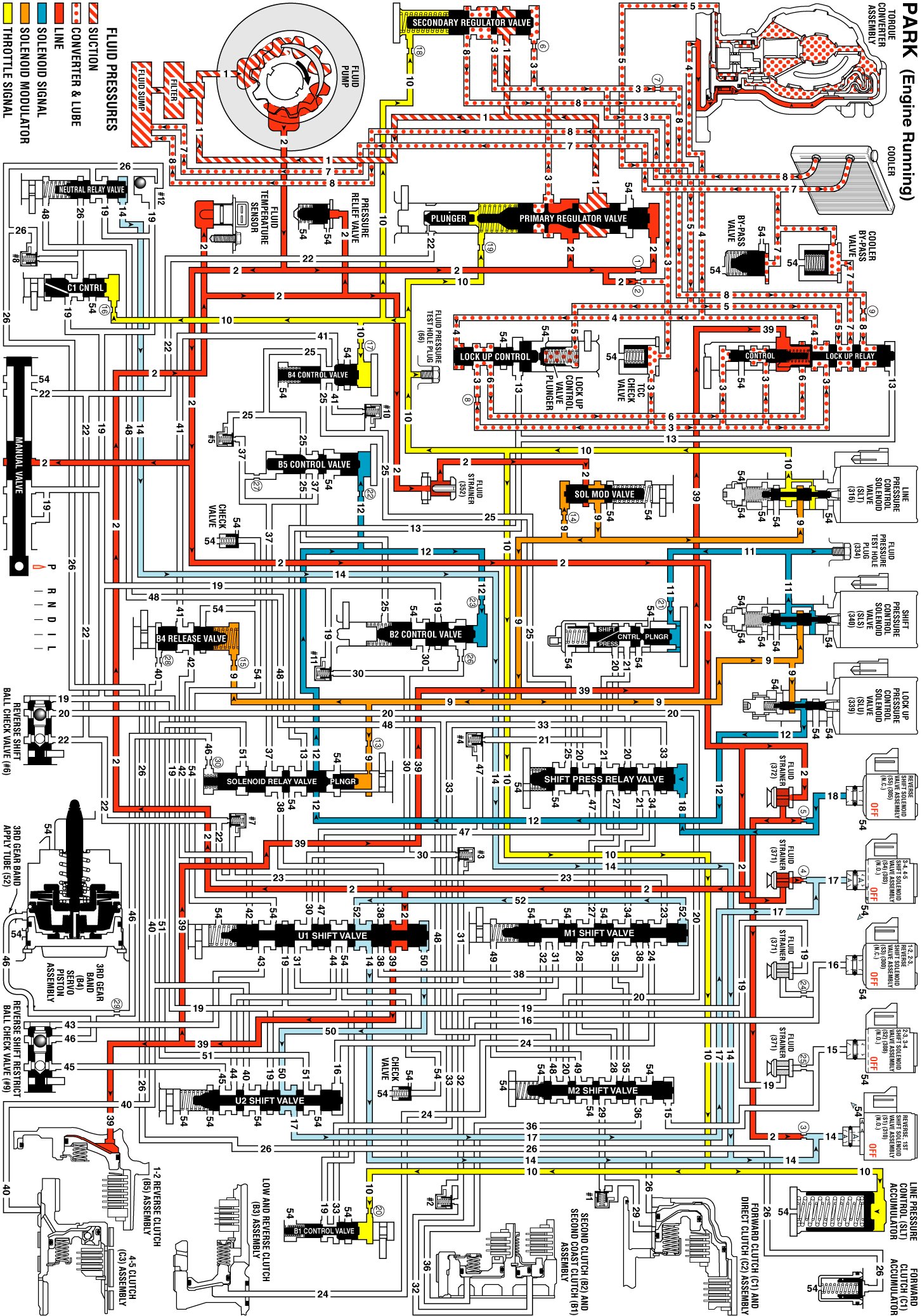

Park - Engine Running

Park - Engine Running:

Reverse

Reverse:

Reverse - Inhibit

Reverse - Inhibit:

Neutral - Engine Running

Neutral - Engine Running:

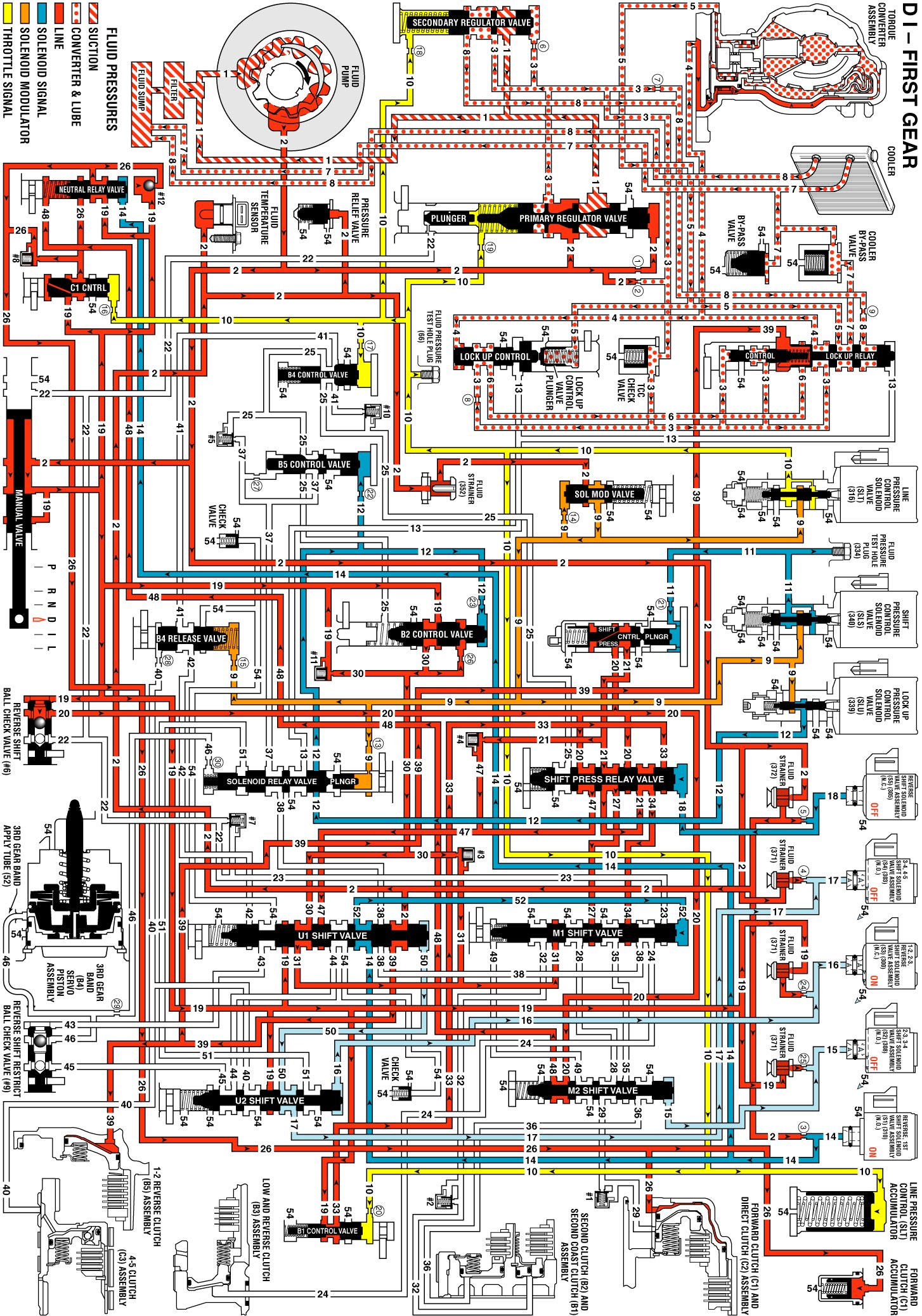

Drive and Intermediate Range - First Gear

Drive and Intermediate Range - First Gear:

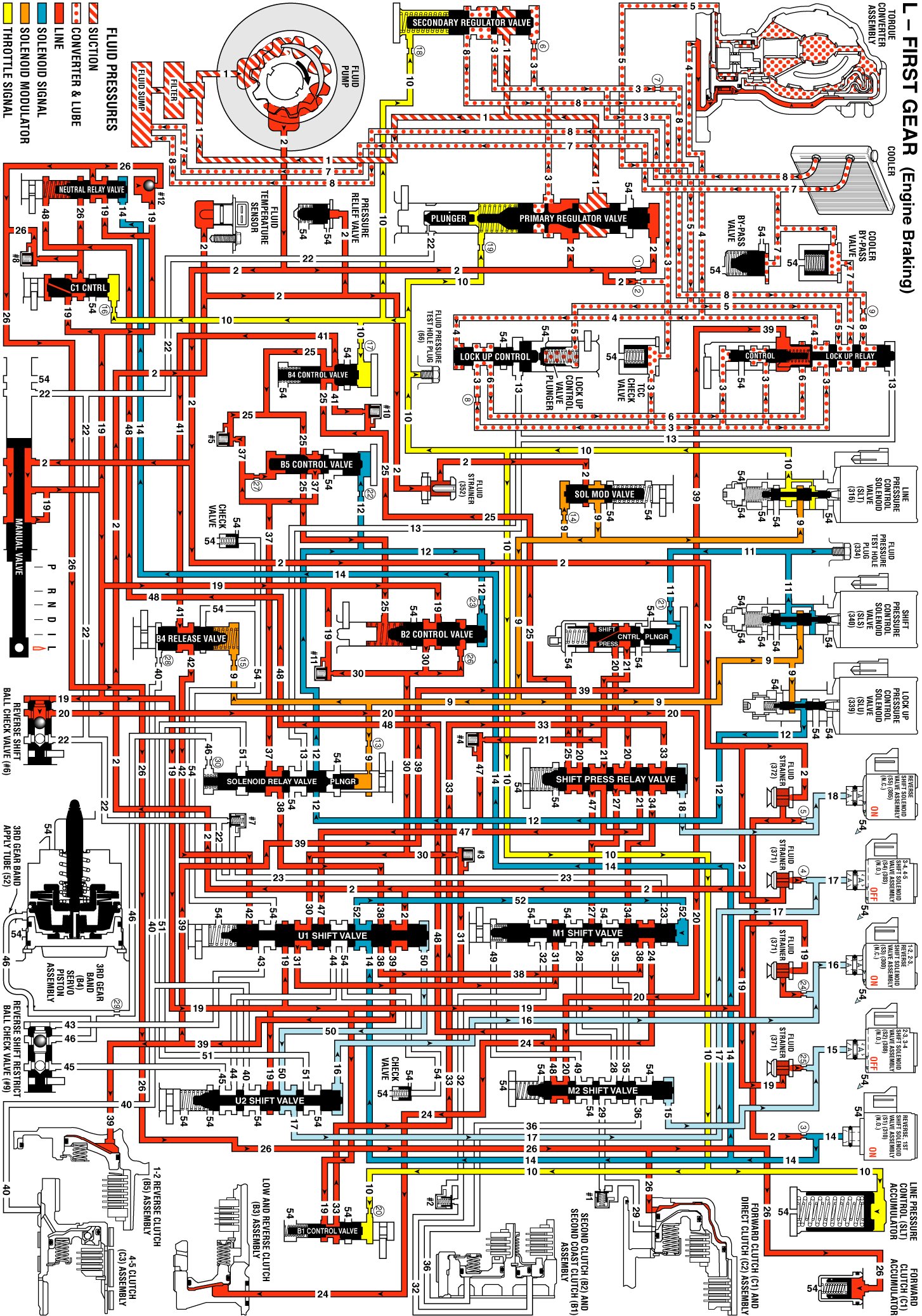

Low Range - First Gear, Engine Braking

Low Range - First Gear, Engine Braking:

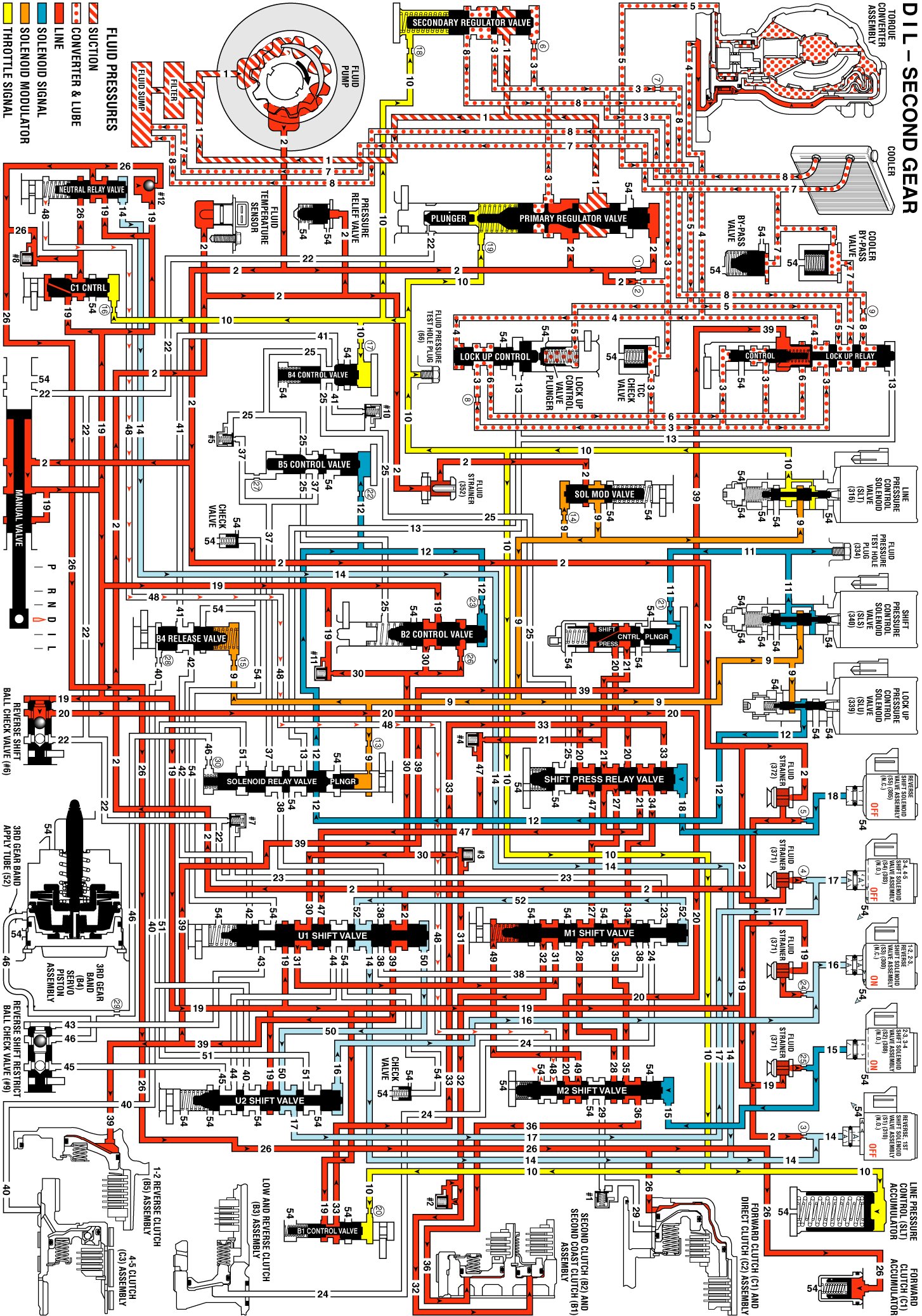

Drive, Intermediate and Low Range - Second Gear

Drive, Intermediate and Low Range - Second Gear:

Drive and Intermediate Range - Third Gear

Drive and Intermediate Range - Third Gear:

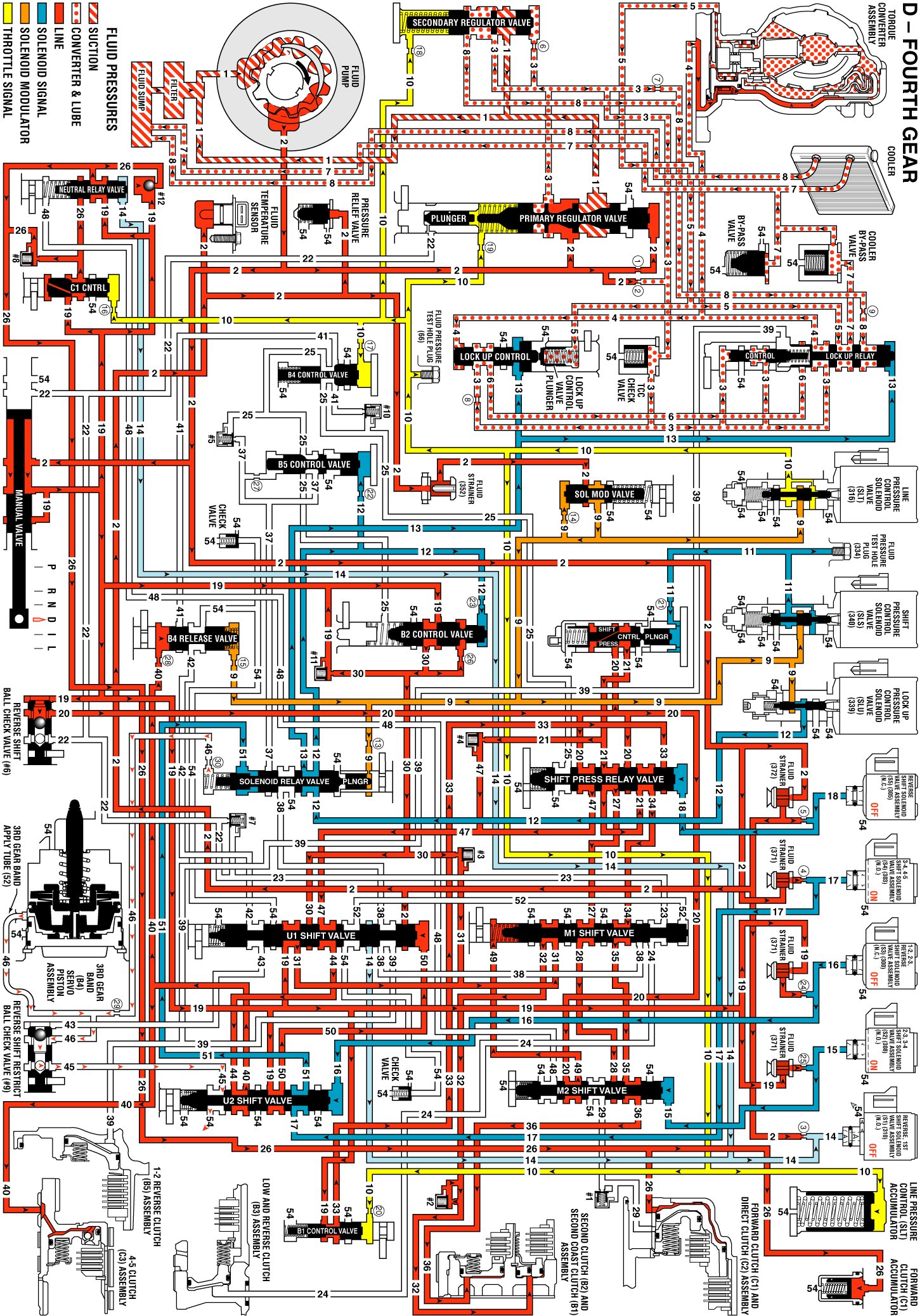

Drive Range - Fourth Gear

Drive Range - Fourth Gear:

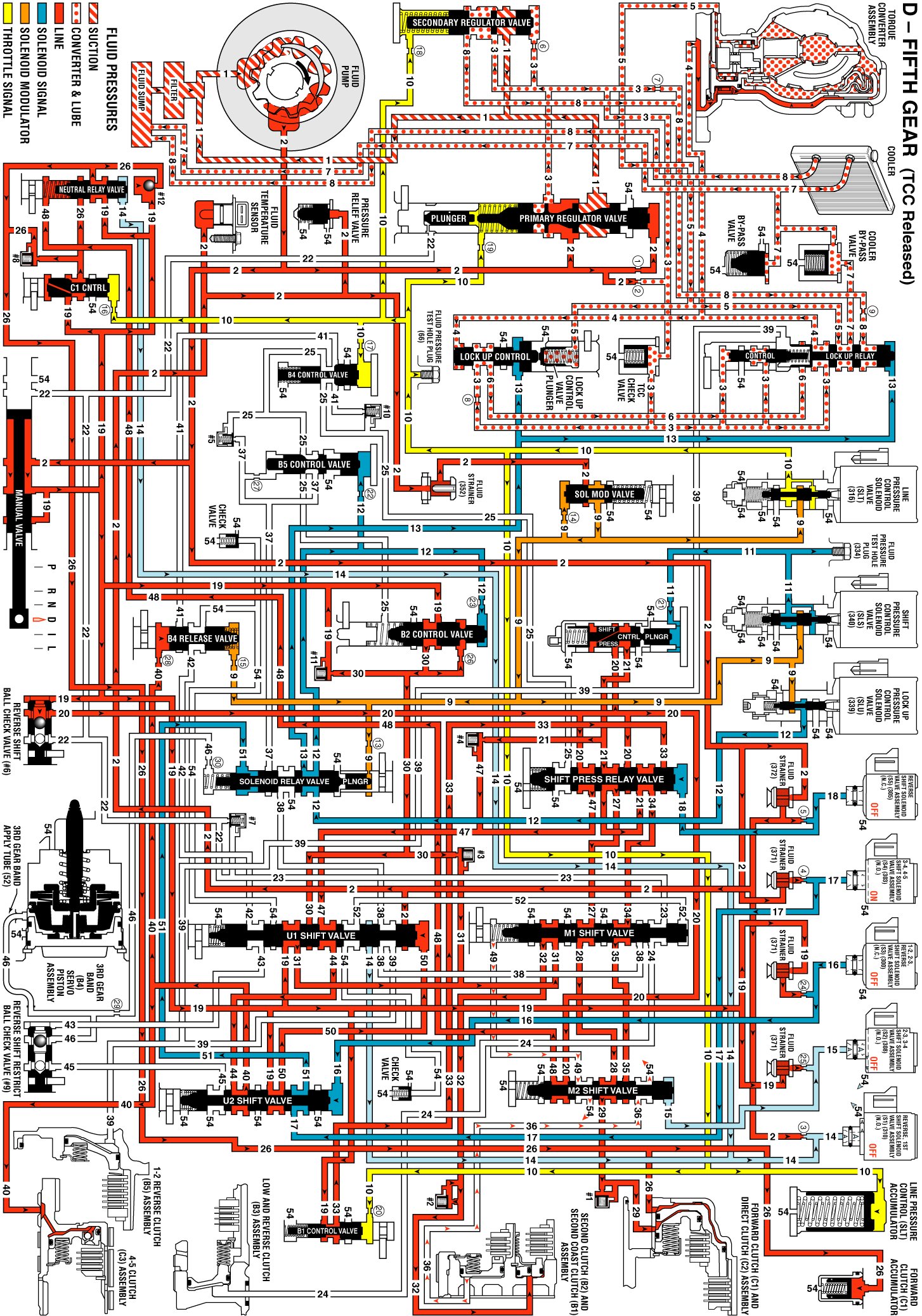

Drive Range Fifth Gear - TCC Released

Drive Range Fifth Gear - TCC Released:

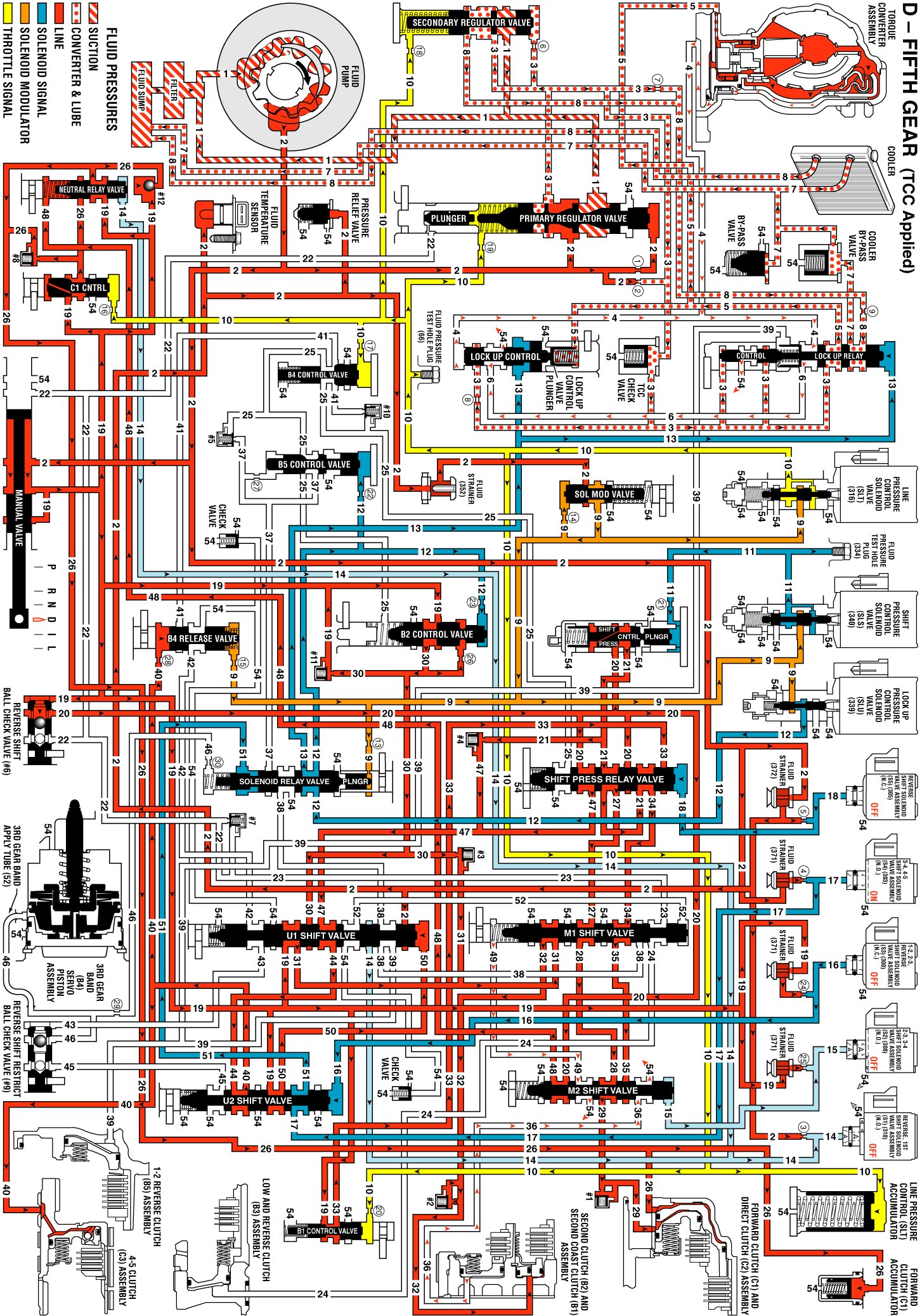

Drive Range Fifth Gear - TCC Applied

Drive Range Fifth Gear - TCC Applied:

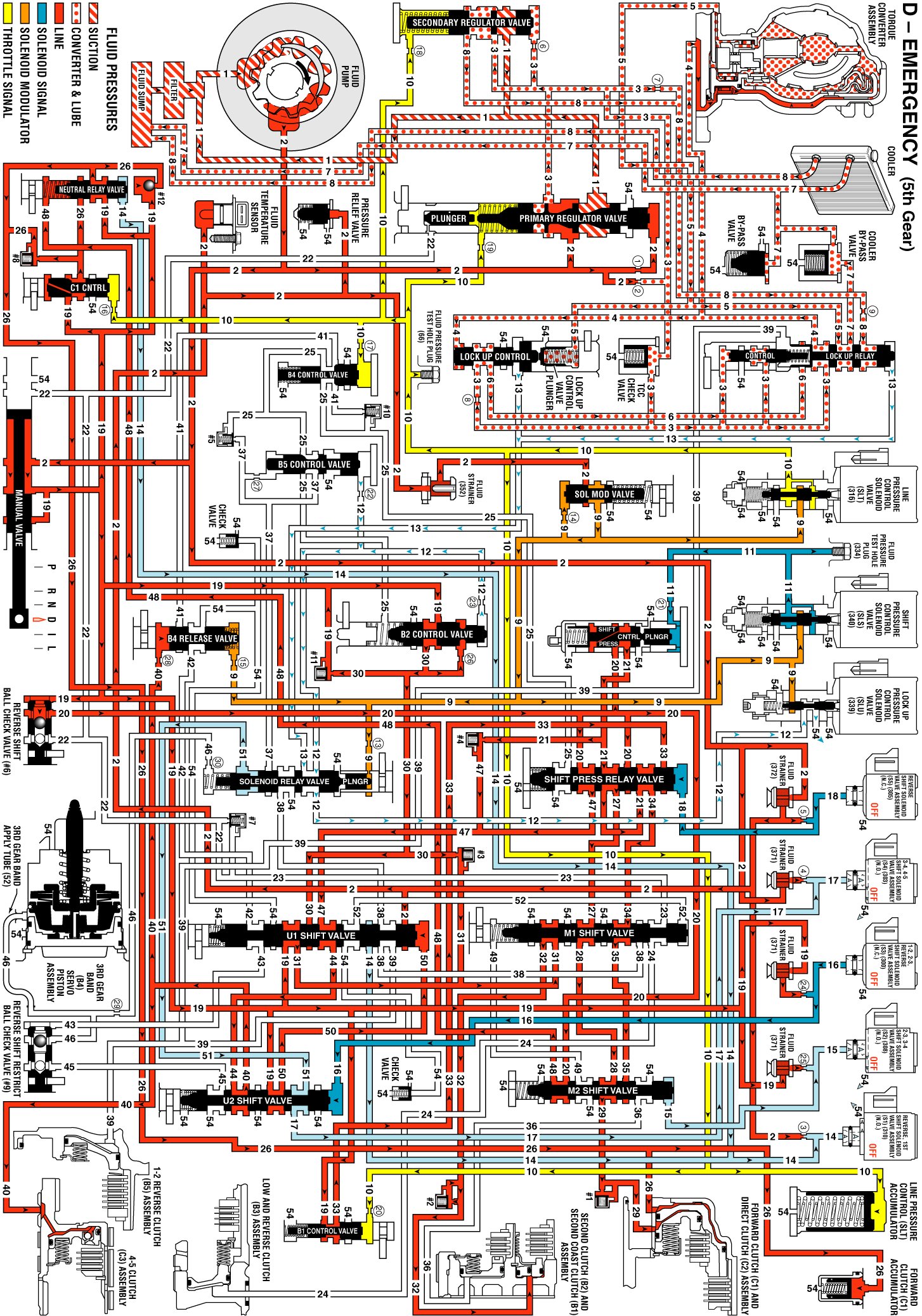

Drive Range - Emergency Fifth Gear

Drive Range - Emergency Fifth Gear:
