CONSOLE REPLACEMENT - FRONT FLOOR

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

NOTE: Fastener Notice in Service Precautions.

2. Remove the gearshift lever boot.

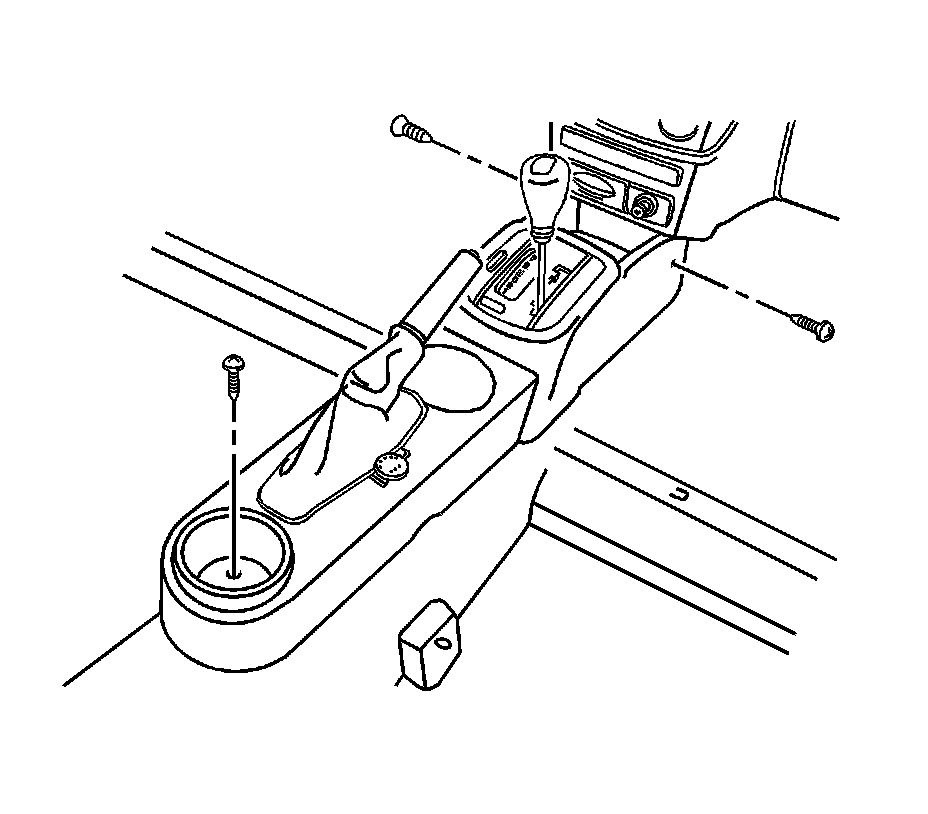

3. Remove the screws from the floor console.
4. Disconnect the electrical connector.
5. Remove the floor console.

INSTALLATION PROCEDURE




1. Connect the electrical connector.
2. Install the floor console with the screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the floor console screws to 4 N.m (35 lb in).

3. Install the gearshift lever boot.
4. Connect the negative battery cable.
