Procedures



Lock Cylinder Replacement - Door

Removal Procedure





1. Remove the door seal trim. Refer to Water Deflector Replacement - Door (Service and Repair) .
2. Disconnect the outside door handle and the lock rods.

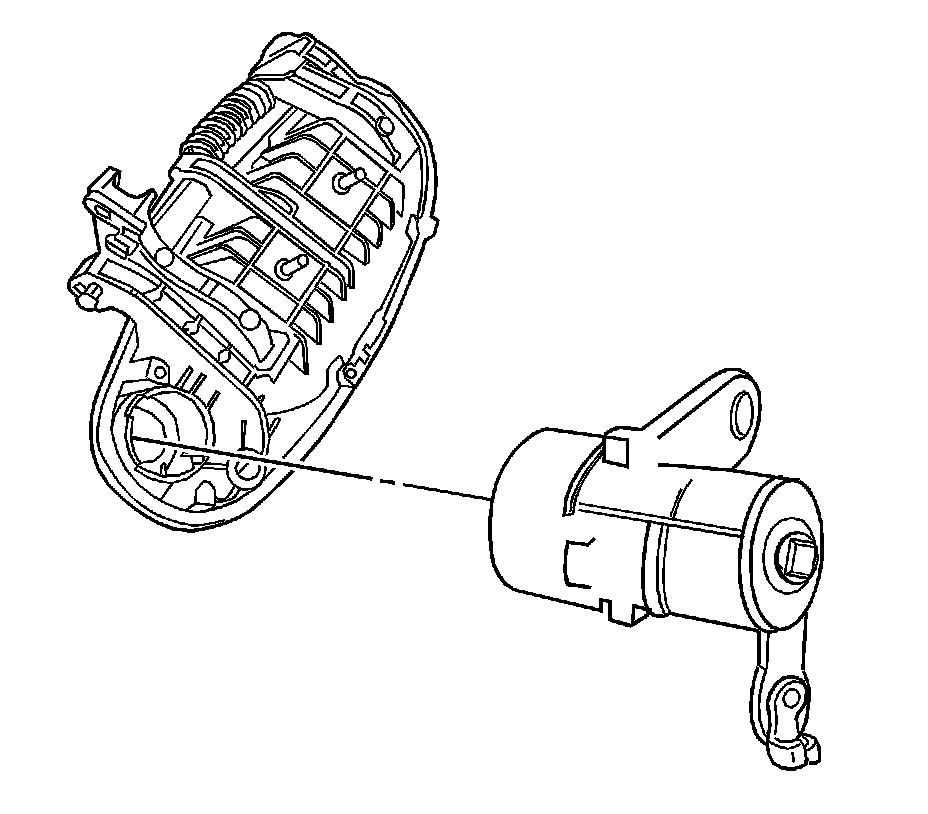

3. Remove the retaining clip and the lock cylinder.



Installation Procedure





1. Install the lock cylinder with the retaining clip.
2. Connect the outside door handle and the lock rods.
3. Install the door seal trim. Refer to Water Deflector Replacement - Door (Service and Repair) .
