Trunk / Liftgate Lock Cylinder: Service and Repair

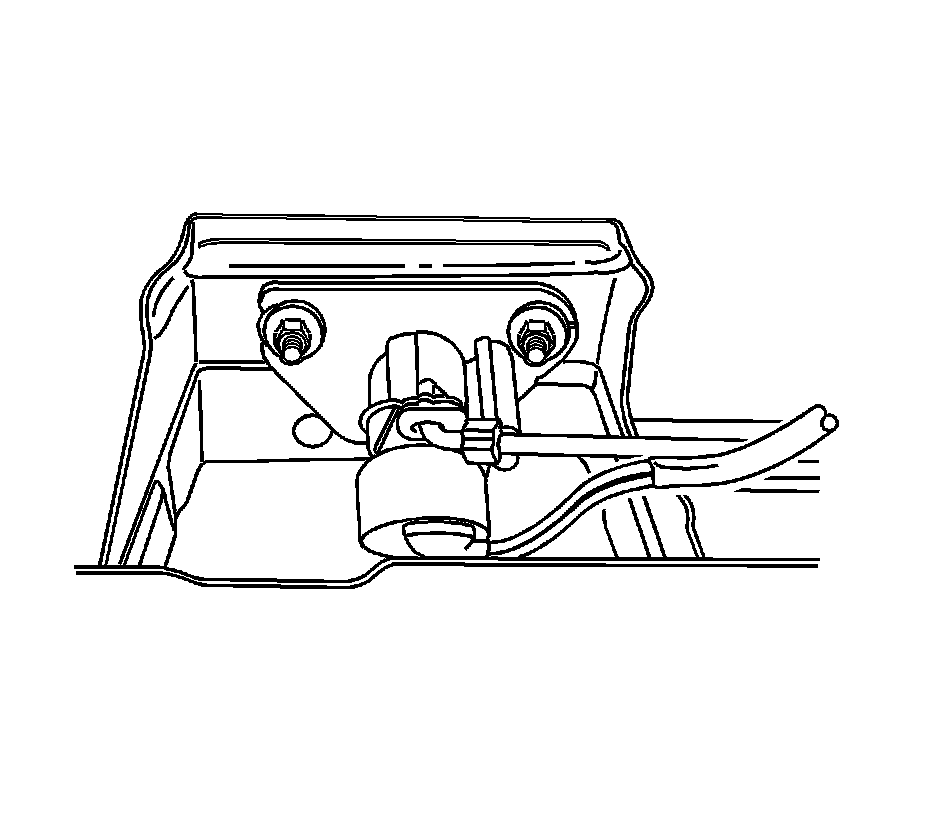

Lock Cylinder Replacement - Rear Compartment Lid

Removal Procedure





1. Remove the hatchback door lower garnish molding, if equipped.
2. Disconnect the lock rod.
3. Remove the nuts and the lock cylinder.



Installation Procedure






Notice: Refer to Fastener Notice in Cautions and Notices.

1. Install the lock cylinder with the nuts.

Tighten the luggage compartment lock cylinder nuts to 3 N.m (27 lb in).

2. Connect the lock rod.
3. Install the hatchback door lower garnish molding, if equipped.
