Seat Back Replacement - Front



SEAT BACK REPLACEMENT - FRONT

REMOVAL PROCEDURE




1. Remove the front bucket seat from the vehicle.

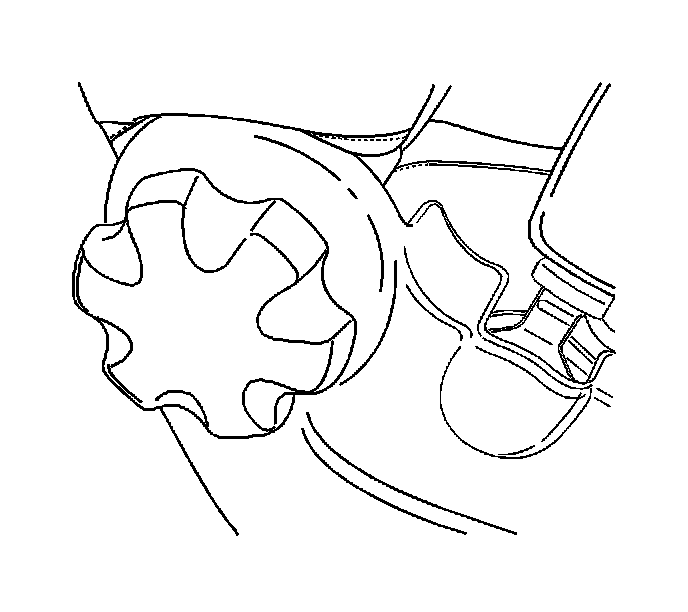

2. Remove the recliner adjustment knob.




3. Remove the recliner cover from the front seat.

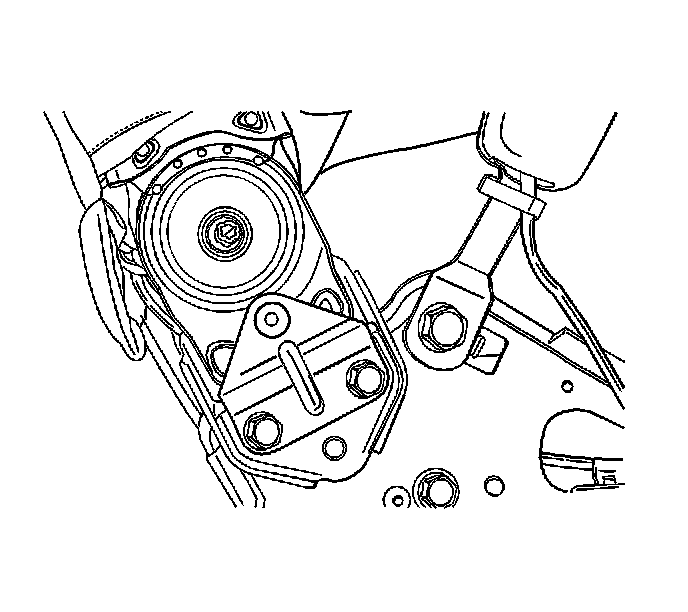

4. Remove the seat back bolts from the seat cushion.
5. Remove the seat back.

INSTALLATION PROCEDURE




1. Install the seat back bolts to the seat cushion.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the seat back bolts to 25 N.m (18 lb ft).




2. Install the recliner cover.
3. Install the recliner adjustment knob.
4. Install the front bucket seat in the vehicle.
