Seat Adjuster Replacement - Front
SEAT ADJUSTER REPLACEMENT - FRONTREMOVAL PROCEDURE 1.
Remove the
seat back.
2.

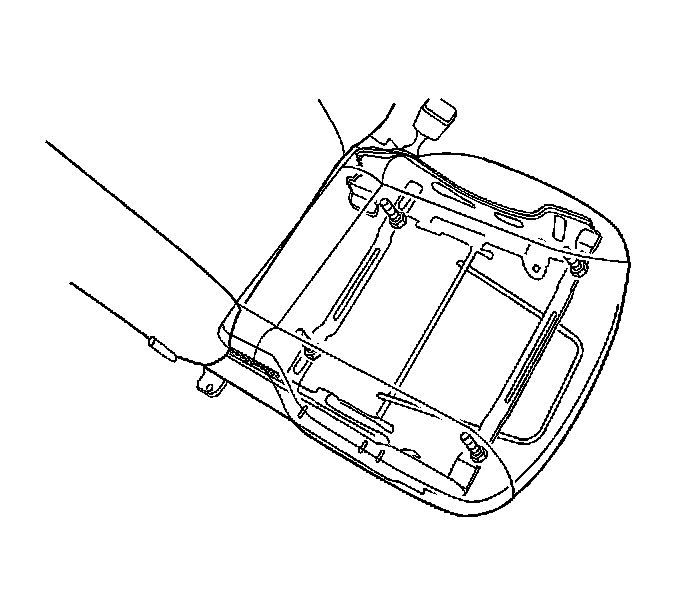

Remove the
seat cushion bolts and the front seat adjusters from the seat cushion.
INSTALLATION PROCEDURE 1.
Install the front seat adjusters to the
seat cushion with the bolts.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten the front seat cushion bolts to
25 N.m (18 lb ft).
2.
Install the
seat back.
