Front Disc Brake Splash Shield Replacement

Disc Brake Splash Shield Replacement - Front

Removal Procedure





1. Remove the rotor.

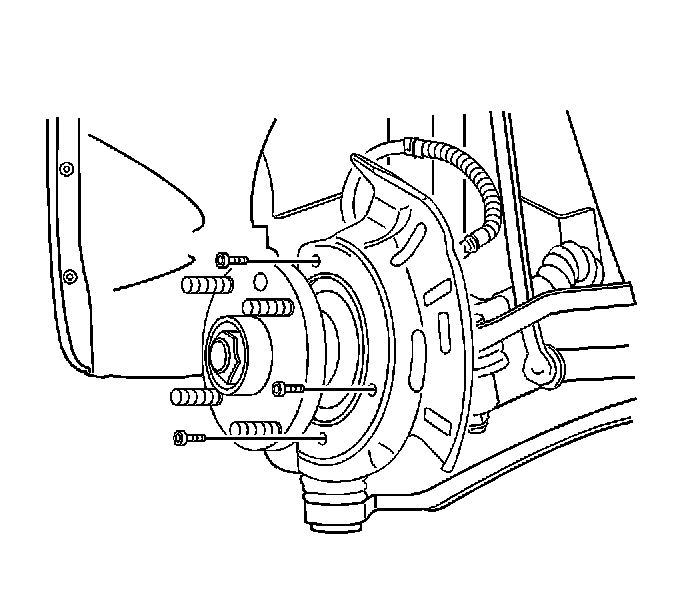

2. Remove the screws for the splash shield from the steering knuckle.
3. Remove the splash shield.

Installation Procedure





1. Install the splash shield.

2. Secure the splash shield to the steering knuckle with the screws.
Tighten the splash shield-to-steering knuckle screws to 4 Nm (35 inch lbs.).

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the rotor.
