Blower Motor Resistor: Service and Repair

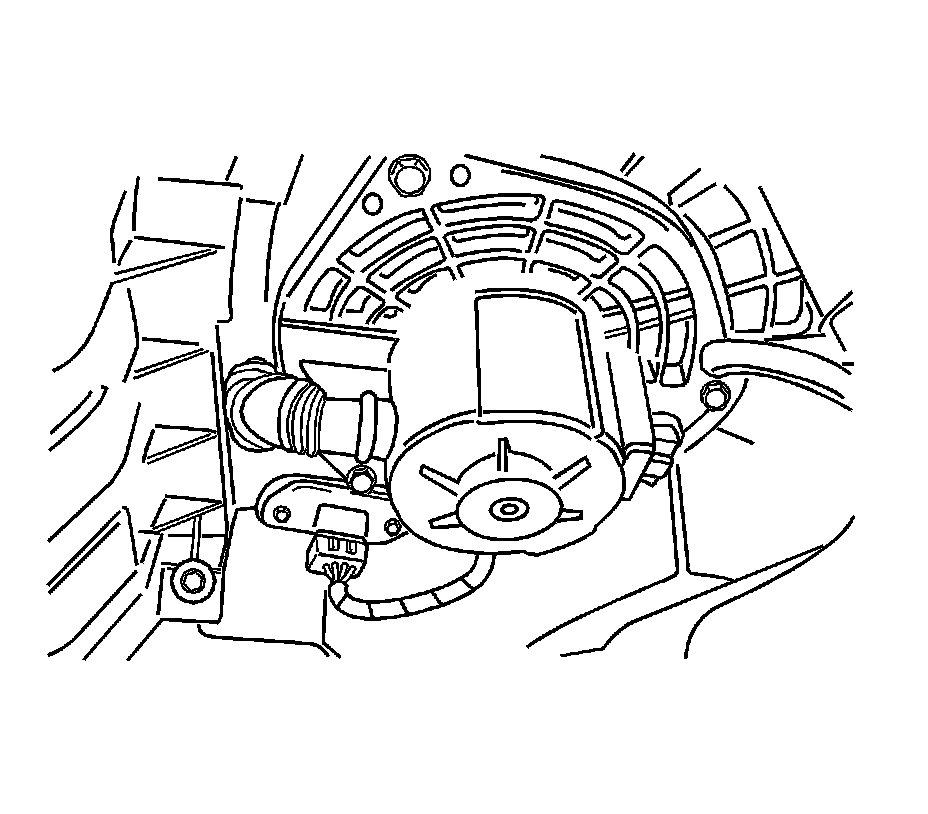

BLOWER MOTOR RESISTOR REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Disconnect the electrical connector at the resistor.
3. Remove the retaining screws from the resistor.
4. Remove the resistor by gently pulling it downward.

INSTALLATION PROCEDURE




1. Install the new resistor into the heater/air distribution case with the screws.

Tighten the blower resistor retaining screws to 6 N.m (53 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Connect the electrical connector at the resistor.
3. Connect the negative battery cable.
4. Confirm the proper performance of the blower.
