Compressor Clutch Coil Removal



COMPRESSOR CLUTCH COIL REMOVAL

TOOLS REQUIRED
- J 8433-1 Puller Crossbar
- J 8433-3 Forcing Screw
- J 33023-A Puller Pilot
- J 33025 Clutch Coil Puller Legs

DISASSEMBLY PROCEDURE




1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging.
3. Remove the compressor.
4. Remove the clutch plate and hub assembly.
5. Remove the clutch rotor and bearing.
6. Mark the clutch coil terminal location on the compressor housing.

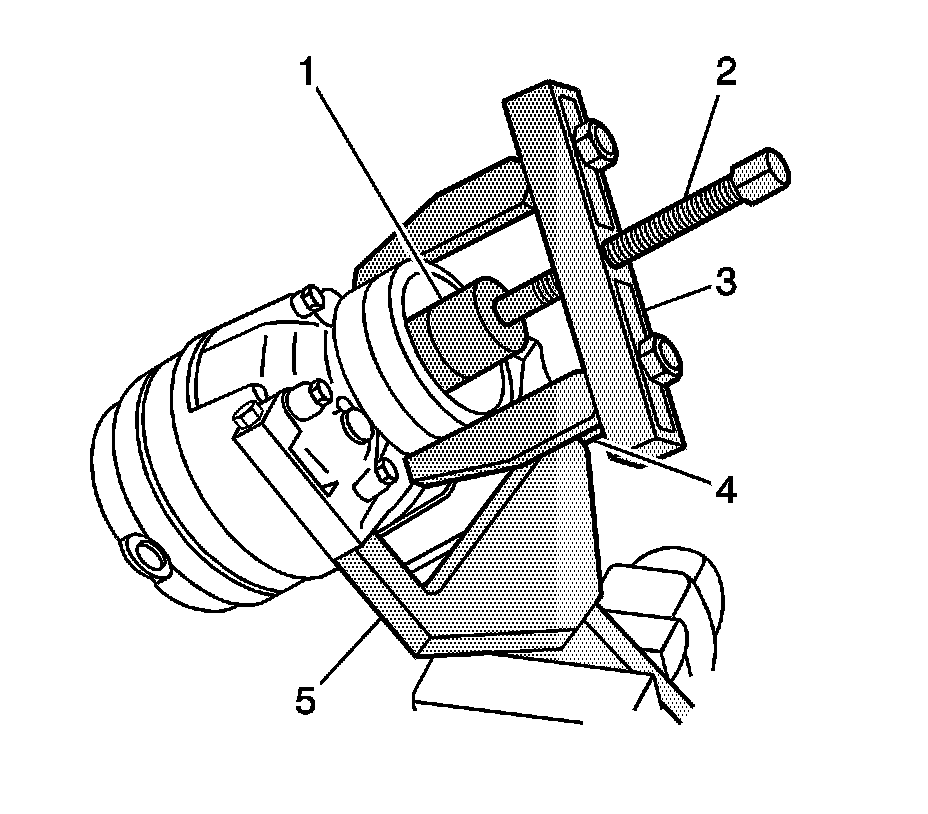

7. Install the J 33023-A (1) on the compressor housing. Also install the J 8433-1 (3) with the J 33025 (4).
8. Tighten the J 8433-3 (2) against the J 33023-A (1) to remove the clutch coil.
