Courtesy Lamp: Service and Repair



COURTESY LAMP REPLACEMENT - INTERIOR

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

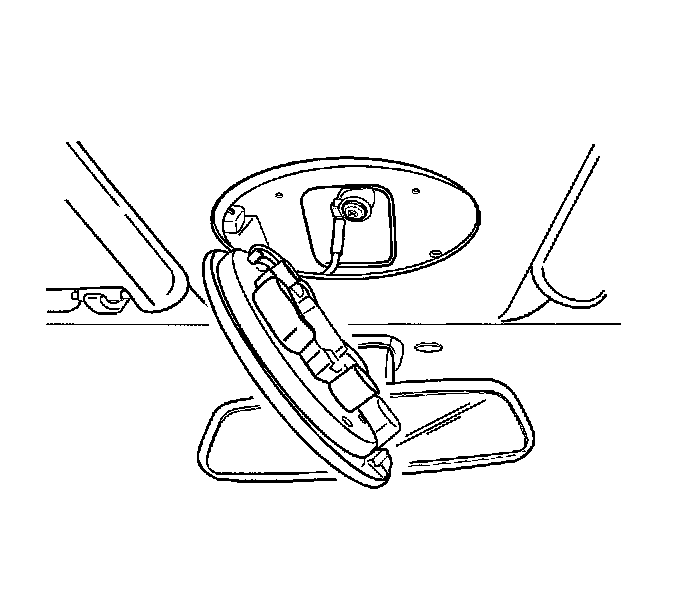

2. Gently pry off the interior courtesy lamp lens by inserting a screwdriver into the recess along the edge of the lens.
3. Remove the screws and the interior courtesy lamp housing from the headliner.




4. Disconnect the electrical connector.
5. Remove the bulb.

INSTALLATION PROCEDURE




1. Install a new bulb.
2. Connect the electrical connector.




3. Install the interior courtesy lamp housing to the headliner with the screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the interior courtesy lamp housing screws to 2.5 N.m (22 lb in).

4. Press the courtesy lamp lens onto the housing.
5. Connect the negative battery cable.
