Fog/Driving Lamp: Service and Repair



FOG LAMP REPLACEMENT - FRONT

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution.

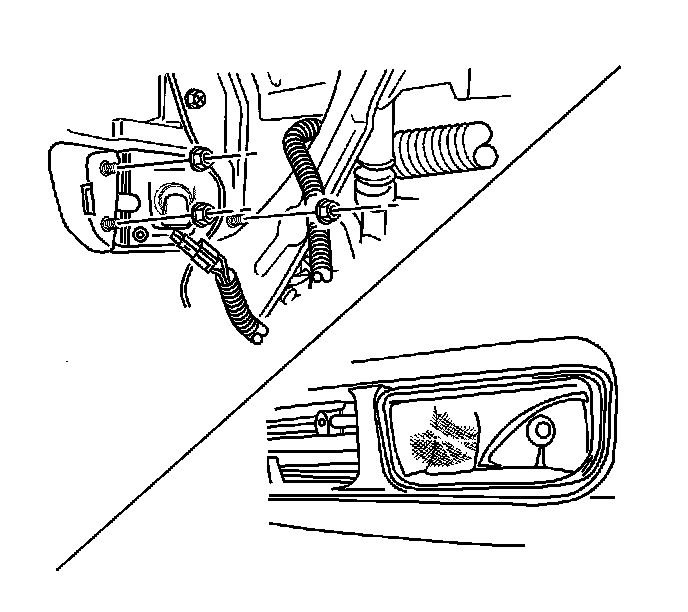

2. Remove the nuts securing the fog lamp assembly.
3. Remove the fog lamp assembly.
4. Disconnect the electrical connector.

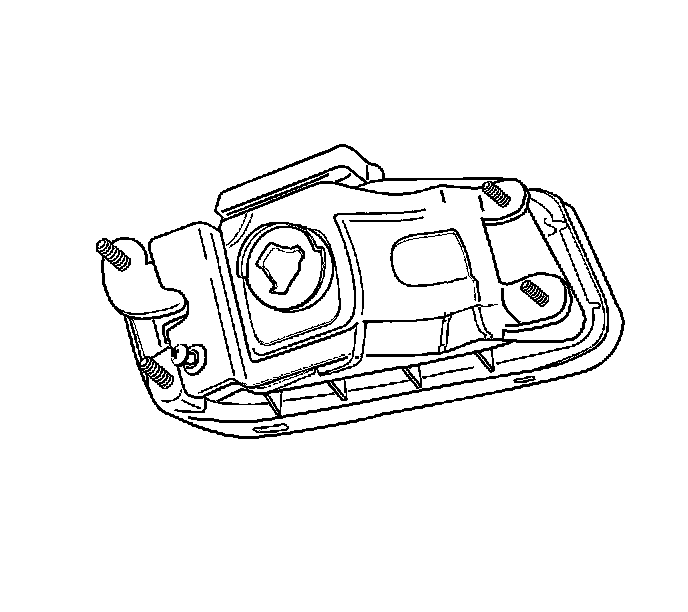

5. Remove the bulb.

INSTALLATION PROCEDURE




1. Install the bulb.
2. Connect the electrical connector.




3. Install the fog lamp assembly.
4. Secure the fog lamp assembly with the nuts.
5. Connect the negative battery cable.
