Horn: Service and Repair

HORN REPLACEMENT

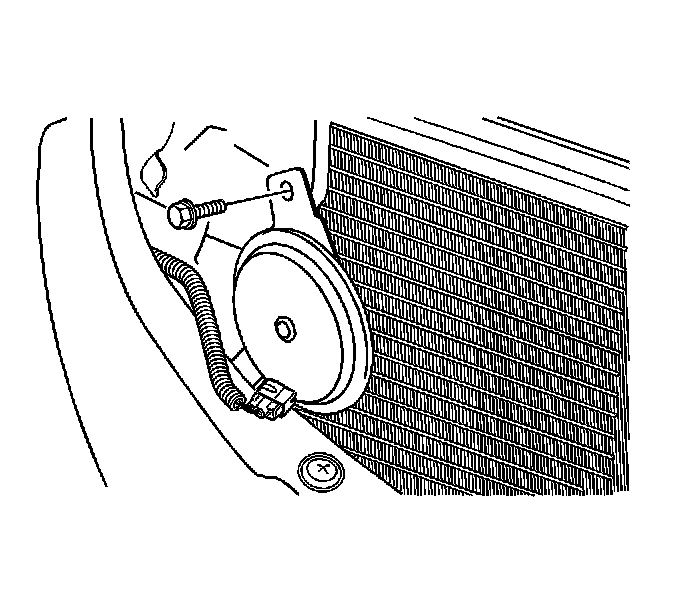

REMOVAL PROCEDURE

1. Disconnect the negative battery cable.

CAUTION: Battery Disconnect Caution.

2. Remove the bolt from the horn.
3. Disconnect the electrical connector.
4. Remove the horn.

INSTALLATION PROCEDURE

1. Connect the electrical connector.
2. Install the horn with the bolt.

NOTE: Refer to Fastener Notice.

Tighten the horn bolt to 21 N.m (16 lb ft).

3. Connect the negative battery cable.
